Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-16

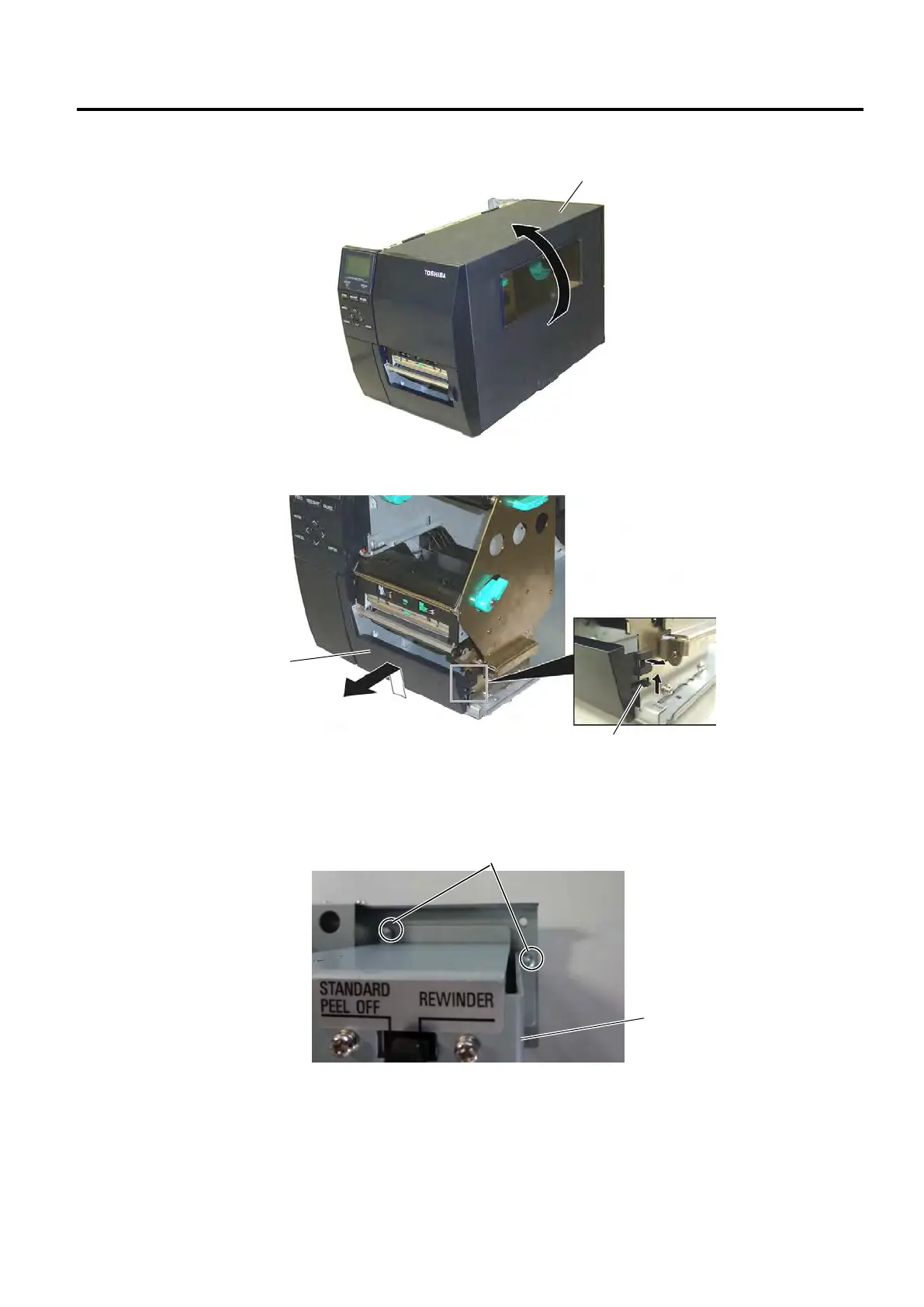

4. Fully open the Top Cover.
5. Release the tab on the right end by pushing it, then remove the Front Panel.
4.3.2 Installing the Rewinder Ass’y
1. Detach the Rewinder Motor Cover by removing the two screws.
Top Cover
Tab
Front Panel
Rewinder Motor Cover
Screw
