4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027

4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)

4-17

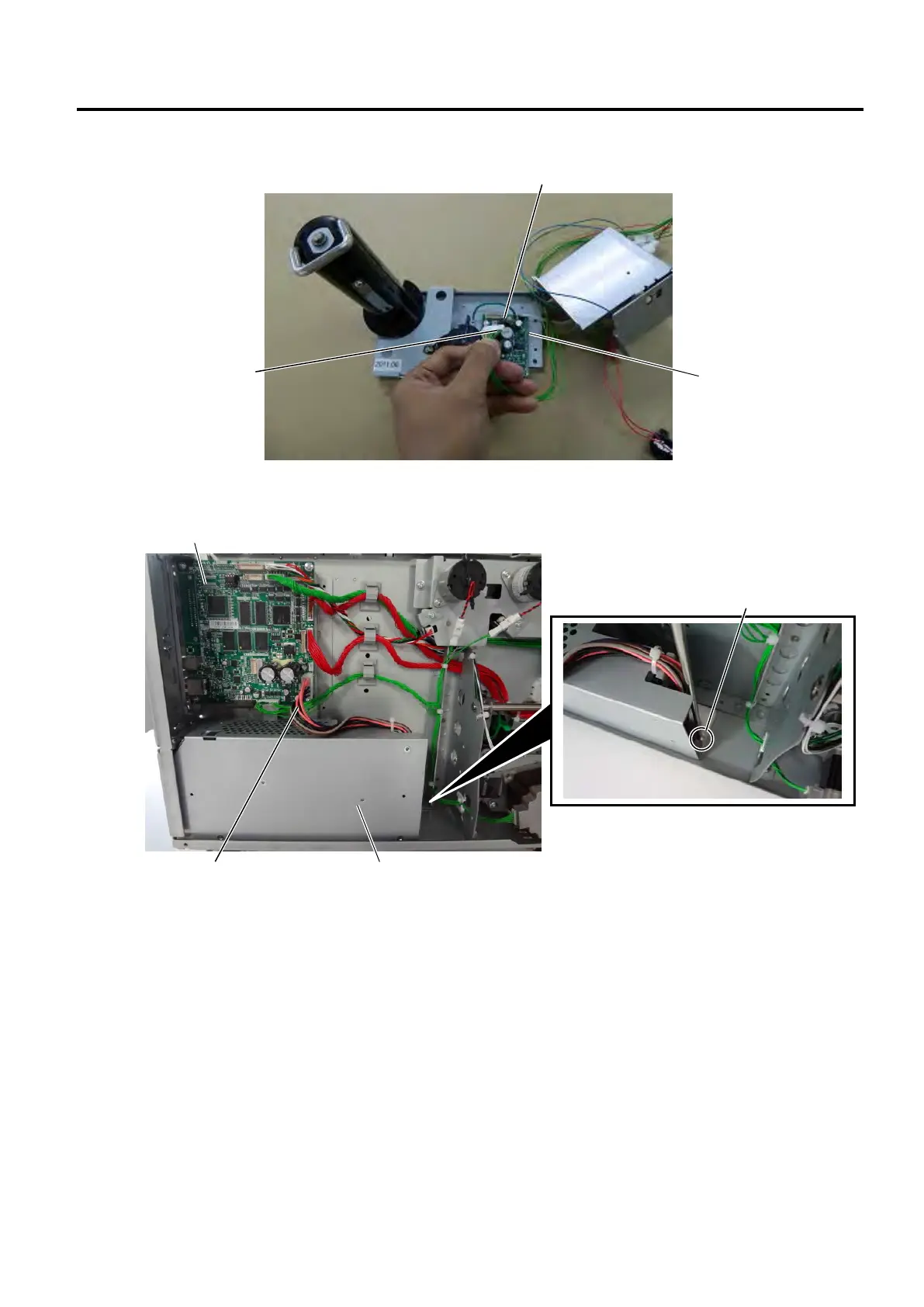

2. Disconnect the Rewinder Harness from CN1 on the Rewinder PC Board.

3. Disconnect the PSU Harness from the Main PC board and remove the screw to detach the PSU.

Rewinder Harness

CN1

Rewinder PC Board

Screw

PSU Harness

PSU

Main PC Board
