Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-18

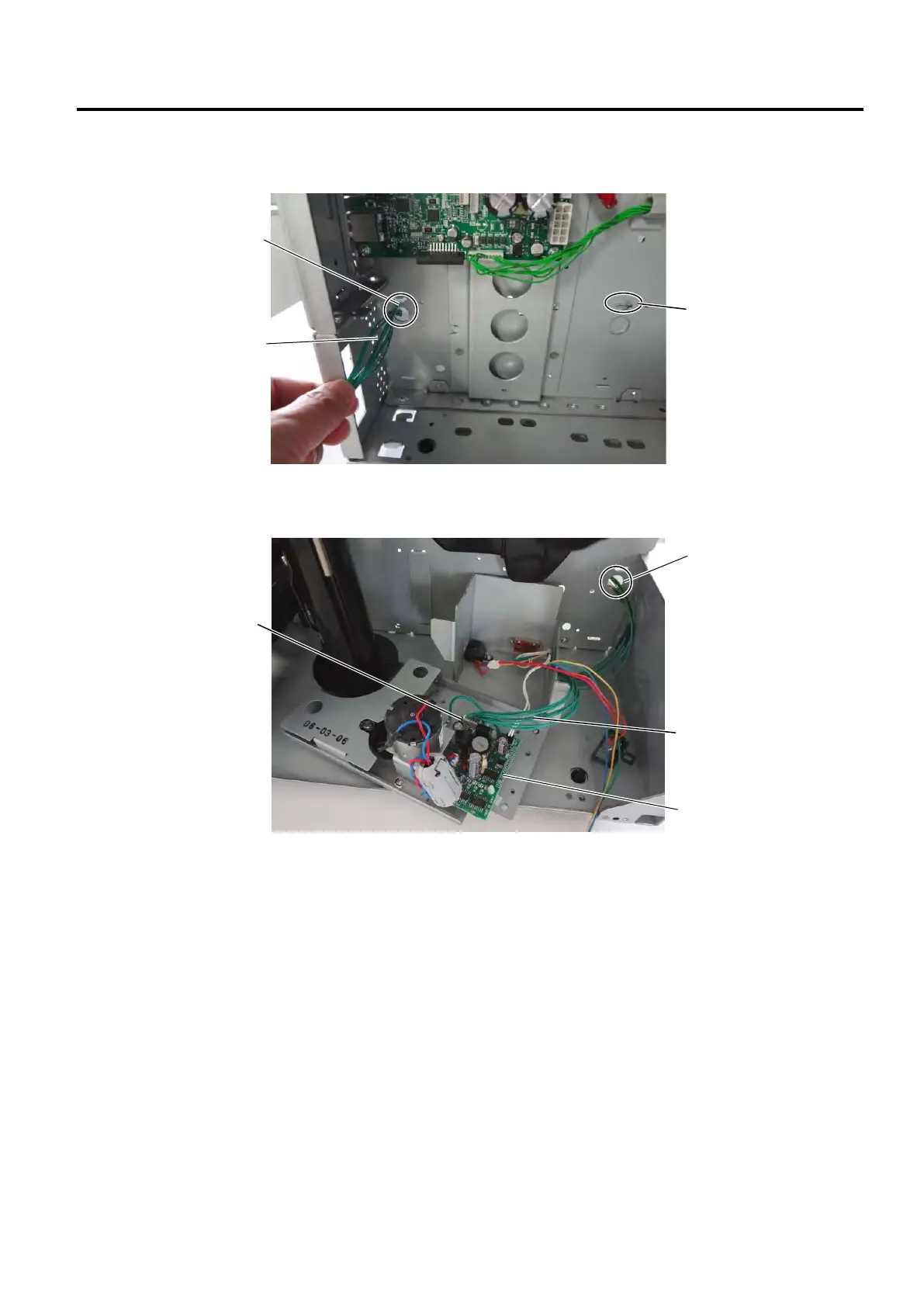

4. Insert the connector of the Rewinder Harness, disconnected from the Rewinder PC Board in Step 2, into
the hole in the main frame.
5. Pull out the Rewinder Harness from the opposite side, and re-connect it to CN1 on the Rewinder PC
Board.
Rewinder Harness
Hole
Rewinder Harness
CN1
Rewinder PC Board
Hole
Tabs of Blind Plate
(→ Step 7)

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
