Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-19

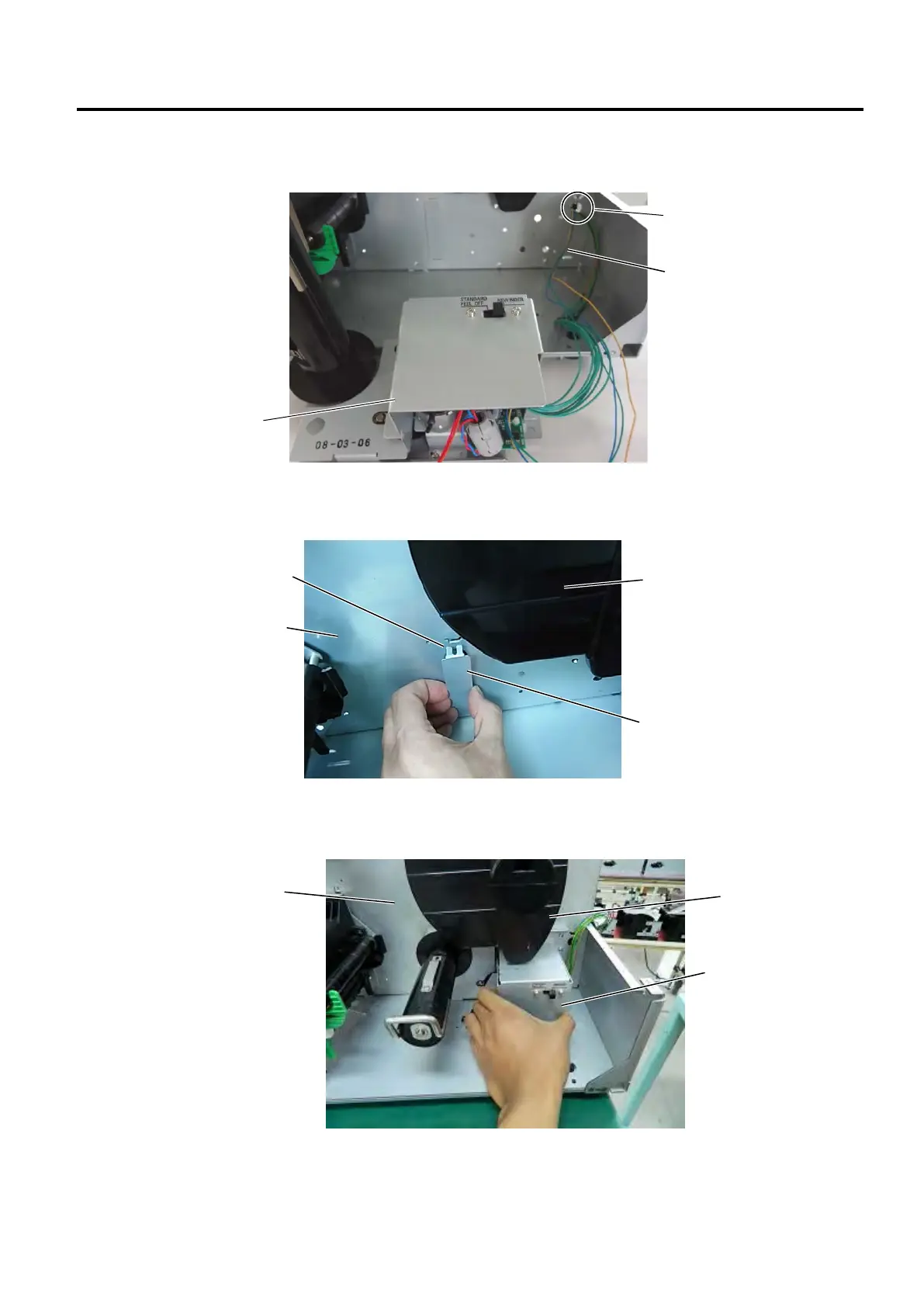

6. Re-attach the Rewinder Motor Cover with the two screws, and pass the Rewind Full Sensor Harness to
the other side of the Main Frame through the hole.
7. From the Main PC board side, unfold the tabs of the Blind Plate (See Step 4), then pull and remove the
Blind Plate.
8. Tilt the Rewinder Ass’y forward to avoid the Supply Holder, and put it against the main frame, as shown
below.
Tab
Blind Plate
Supply Holder
Rewinder Ass’y
Supply Holder
Main Frame
Main Frame
Rewinder Motor Cover
Rewind Full Sensor
Harness
Hole

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
