Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-20

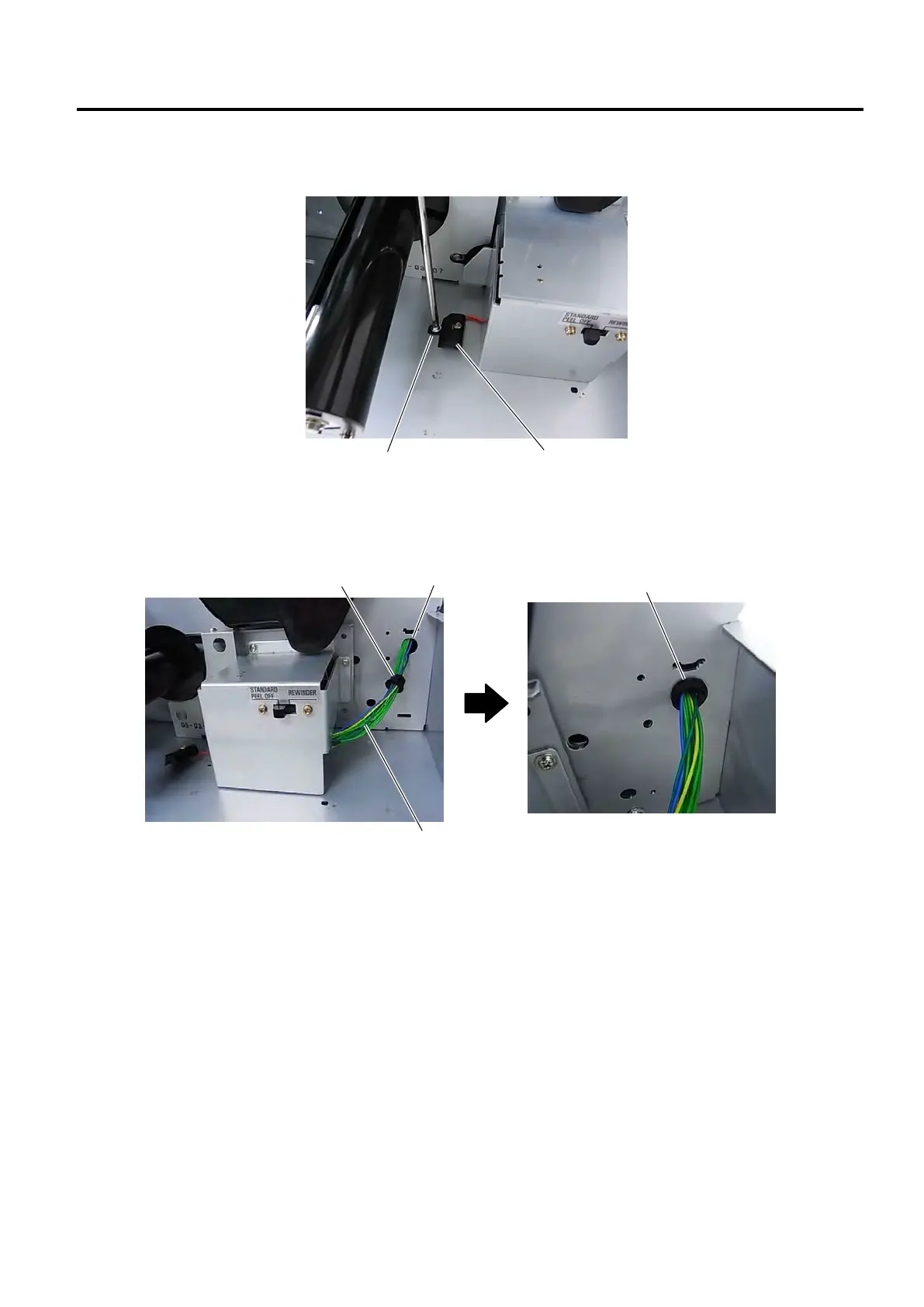

9. Align the dowel on the bottom of the Rewind Full Sensor with the dowel hole in the base.
Secure the Rewind Full Sensor to the printer base with the ST-3x6 screw.
10. Fit the Cord Bush to the Rewinder Harness and Rewind Full Sensor Harness together, in the
orientation shown below. Then fit the Cord Bush into the hole.
Rewinder Harness
Rewind Full Sensor
ST-3x6 Screw
Cord Bush
Cord Bush
Hole

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
