Properties of the IO-Link channels
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
24
2.9 Using IO-Link and Turck Device DTMs
2.9.1 Topology Scan
The Topology Scan in PACTware also allows the read-in of an IO-Link configuration down to the IO-
Link device.
IO-Link devices, known in PACTware, are added to
the IO-Link ports of the master.
Therefore, either the respective sensor DTMs in PACTware or the sensor IODDs via IODD DTM Con-
figurator have to be installed.

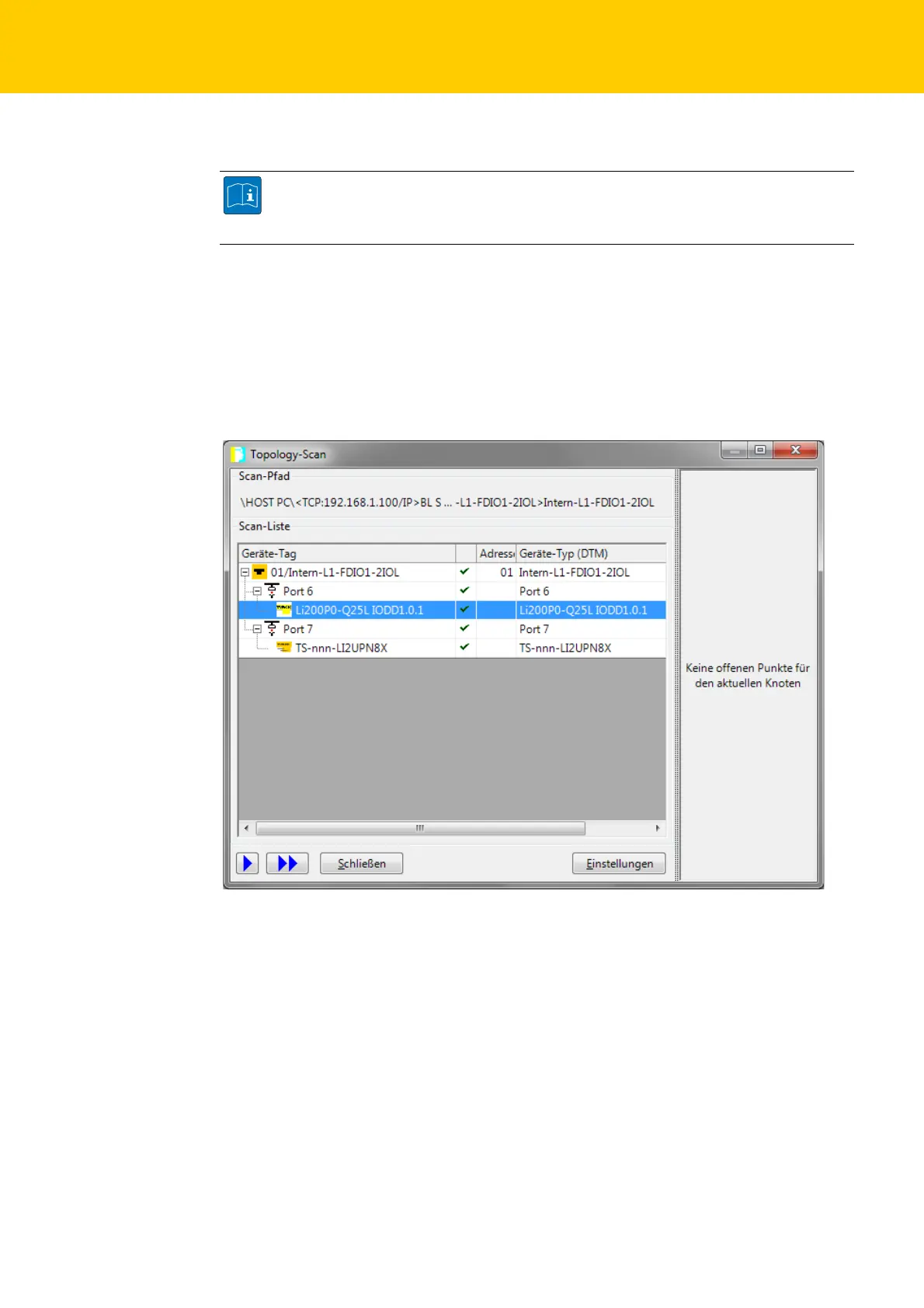

Fig. 2: Topology Scan in PACTware
TECHNISCHE GRUNDLAGEN
FDT enables a fieldbus and system independent engineering environment to be set up.
Generic DTMs allow any type of sensor and actuator to be integrated easily in the system.
