Setting IP Addresses
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
38
6.1 Address setting via Rotary Coding Switches
x100: sets the 100-position of the F-address
x 10: sets the 10-position of the F-address
x 1: sets the 1-position of the F-address

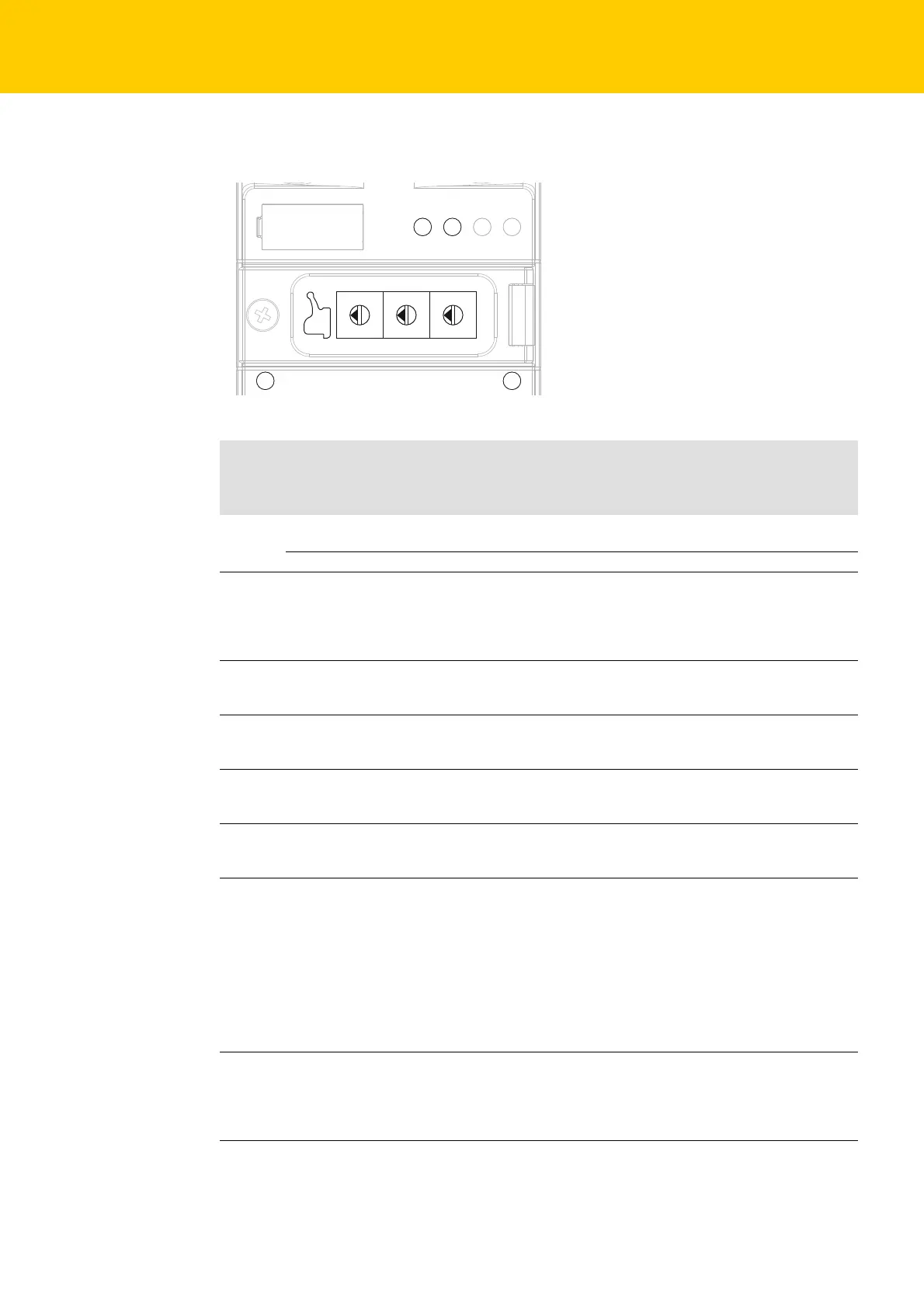

Fig. 14: Rotary coding switches
Switch
position
Meaning Valid for: Further
chapters
safety side non-safety
side
000 Delivery state, no valid address
Resetting the IP address yes no
s. page 42
001 -
254
IP address:
The last byte of the IP address for the safety
side is set via the 3 rotary coding switches.
Set the address switches to the desired IP
address and carry out a voltage reset.
yes no s. page 41
300 BootP
Set the address switches to 300 and carry out
a voltage reset at the device.
no yes s. page 41
400 DHCP
Set the address switches to 400 and carry out
a voltage reset at the device.
no yes s. page 41
500 PGM
Set the address switches to 500 and carry out
a voltage reset at the device.
no yes
s. page 42
600 PGM-DHCP
Set the address switches to 600 and carry out
a voltage reset at the device.
no yes s. page 42
900 F_Reset
Sets the device (IP addresses, parameters, etc.)
and the plugged memory chip to factory set-
tings, the content of the memory stick is
deleted.
Set the address switches to 900 and execute a
power reset at the device.
Wait for 30 seconds.
Device and memory stick are reset for factory
settings.
yes yes
Reset Device
to Factory
Settings
(page 101)
901 Erase Memory
Deletes the content of the memory chip.
Set the address switches to 901 and carry out
a voltage reset at the device.
The content of the memory chip is deleted.
yes yes
Storing a
Configura-
tion (page
23)
WINK
MS
NS
EtherNet/IP™ETH1 ETH2
IP
A
d
d
r
e
s
s
0
9
87
6
5
4
32
1
0
9
8
7
6
5
4
32
1
0
9
8
7
6
5
4
3
2
1
x
1
00
x
1
0
x1
Memory
