3.3 Parameter "Data Storage Mode" = overwrite
 The data set in the IO-Link master is always the reference data set.
 The synchronization of the parameter sets is unidirectional towards to the device.
 The status of the DS_UPLOAD_FLAG is ignored.
1
IO-Link-Master
IO-Link-Device
Para. IOLD = 
parameter data of the IO-Link device

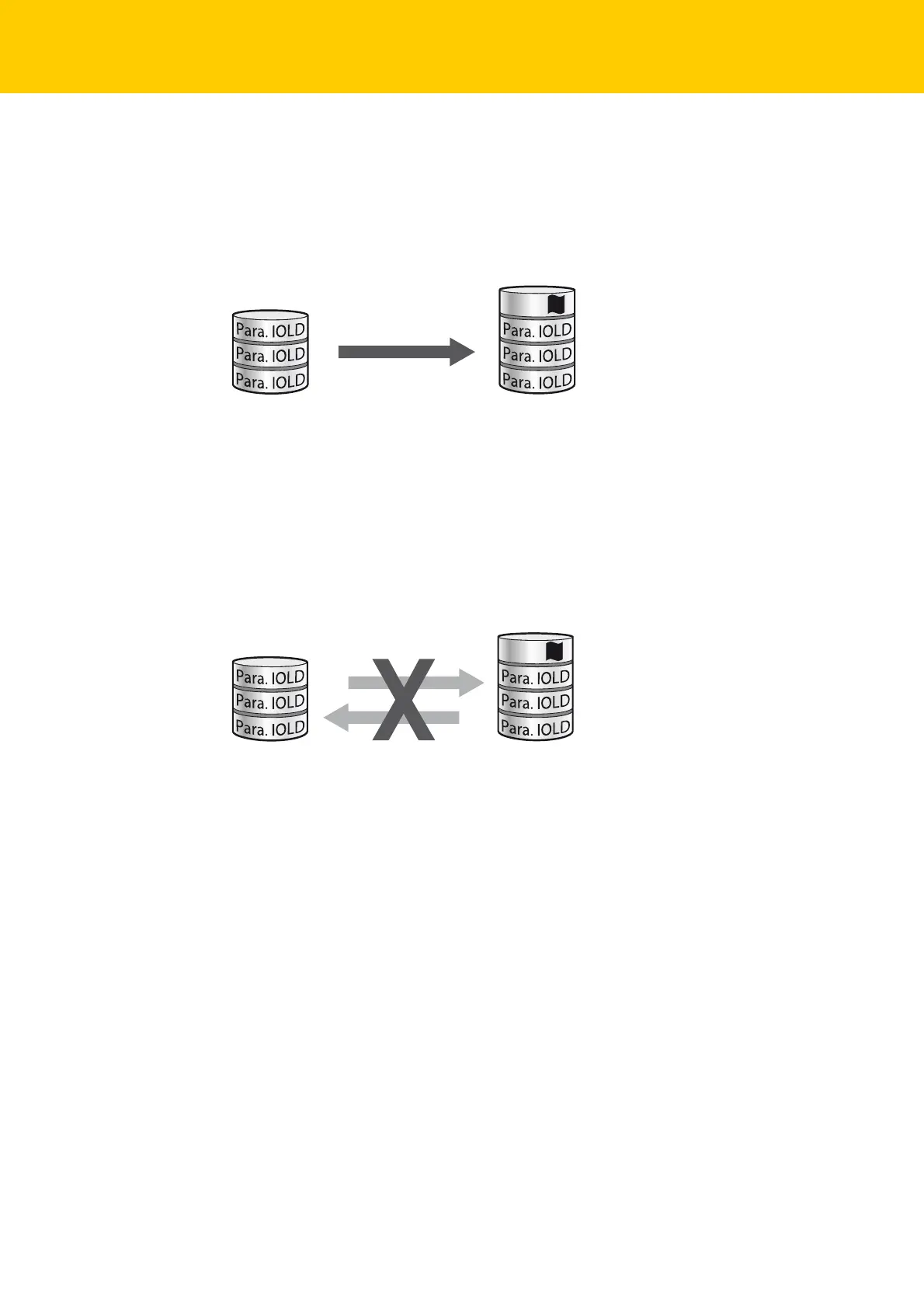

Fig. 5: "Data storage mode" = overwrite
3.4 Parameter "Data Storage Mode" = deactivated, clear
 The data set in the IO-Link master is deleted.
 The synchronization of parameter sets is deactivated.
IO-Link-Master
IO-Link-Device
Para. IOLD = 
parameter data of the IO-Link device
Fig. 6: "Data storage mode" = deactivated, clear
