13
2018/02
TBIP-L…-FDIO1-2IOL- Safe I/O channels
3 Product description
The TBIP-L…-FDIO1-2IOL is a Safety block I/O module which combines standard and safety in/-out-
puts in one device and thus provides maximum flexibility for the user. The rough EtherNet/IP™ mod-
ule provides two safety inputs for the connection of different safety sensors as for example light bar-
riers or emergency stop buttons.
Two further safe channels can be used as either in- or output. The universal channels increase the
flexibility for adapting the installation to the respective application. The configuration of the safe
I/Os is realized by means of a software tool.
The module provides four universal digital in-/outputs for the connection of unsafe signals which
can switch up to 2A.
In addition to that the module has two IO-Link-Master. In combination with Turck I/O hubs, up to 32
I/Os can be connected.
The standard as well as the IO-Link channels of TBIP-L…-FDIO1-2IOL can be switched off safely via
internal outputs which simplifies the effort for circuitry and wiring for auxiliary drives and valve ter
-
minals.
The TBIP-L…-FDIO1-2IOL is available in two versions:
TBIP-L4-FDIO1-2IOL: 4-pole 7/8'' voltage supply
TBIP-L5-FDIO1-2IOL: 5-pole 7/8'' voltage supply
Main features of the flexible block I/O module for safety applications:
Two safety-related SIL3 inputs FDI
Two safety-related SIL3 In-/outputs FDX
Four unsafe in-/outputs DXP
Two IO-Link master ports (IOL)
Safe shutdown of the standard channels and one I/O-Link channel
Safe PP/PM-switching of the actuator power supply of up to 2 A
Usable in SIL CL3 according to EN 62061 or PLe according to DIN EN ISO 13849-1
3.1 Device Overview

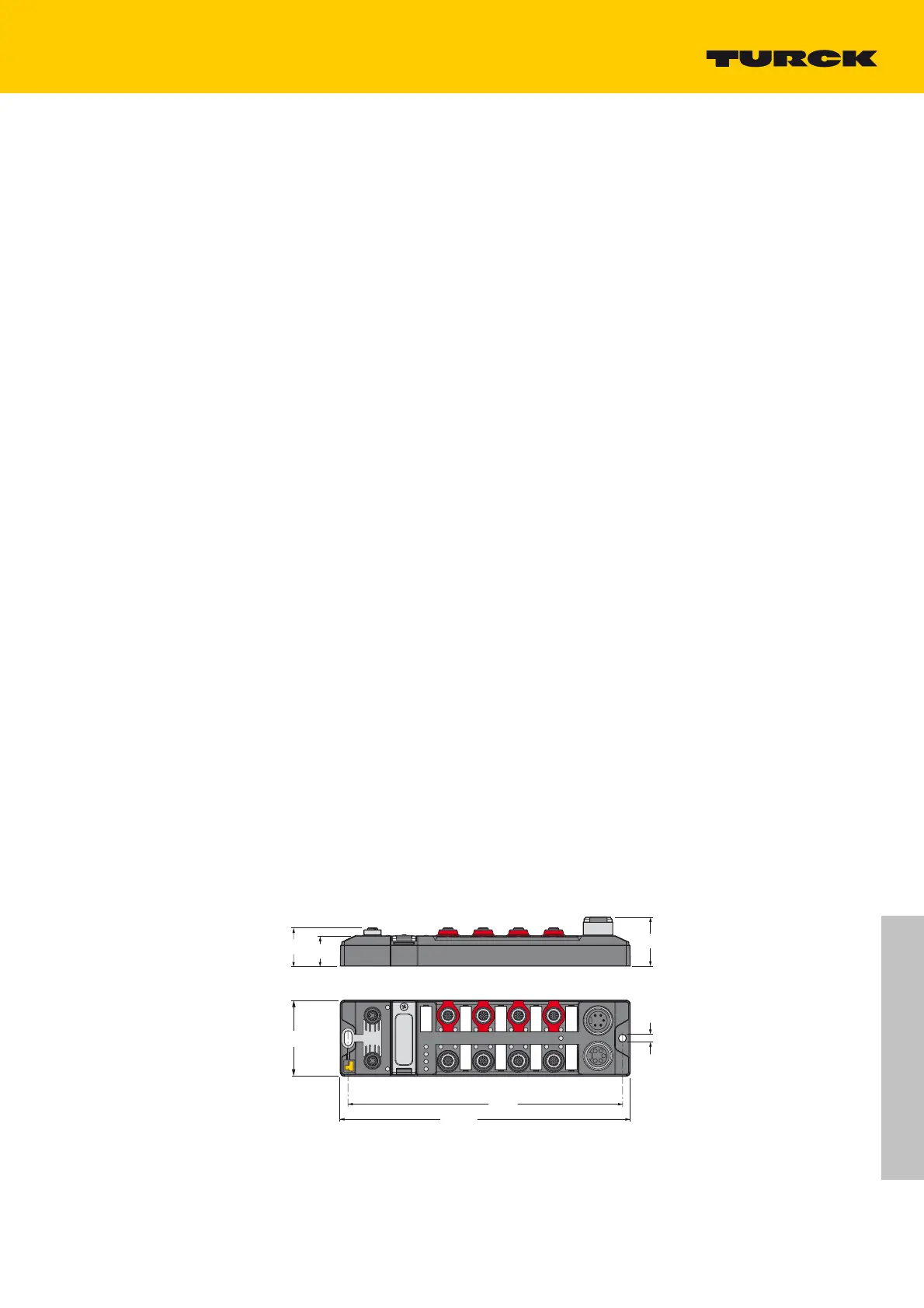

Fig. 1: Dimensions TBIP-L…-FDIO1-2IOL
218
230.5
C4C5C6C7
6.3
38.8
60.4
C0C1C2C3
24
30.2
X2
X1
P2
P1
