5.2 Start-up: IO-Link-Device with IO-Link V1.1
In general, the following applies:
The data storage of the master should be cleared before a device with a different device type is
connected to an IO-Link port which has already been used before.
To do so, set the master back to factory
settings or clear the data storage buffer using the param-
eter "data storage mode"
.
Start-up steps (1. possibility)

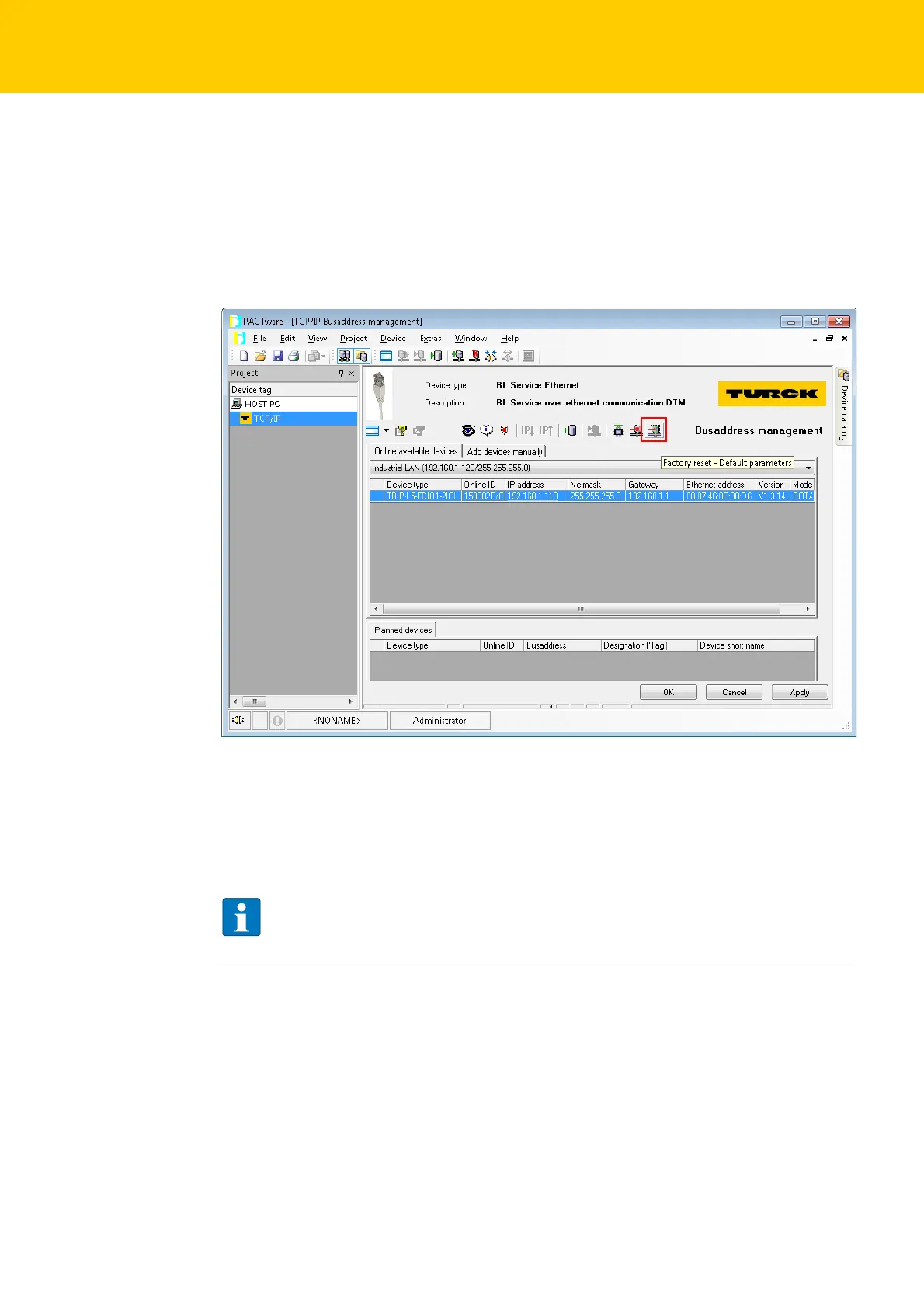

Fig. 8: Reset device to factory settings via DTM
Reset the device to factory settings.
the device is reset automatically.
Connect the IO-Link V1.1 device.
LED "IOL" = GREEN (for the respective port), IO-
Link communication is active
NOTE
Resetting the device sets the complete device back to factory settings. The content of a
plugged memory stick is deleted as well (see Storing a Configuration (page 23)).
.
