turck TBIP-L...-FDIO1-2IOL Series TBIP-L4-FDIO1-2IOL User Manual

19
2018/02
TBIP-L…-FDIO1-2IOL- Safe I/O channels

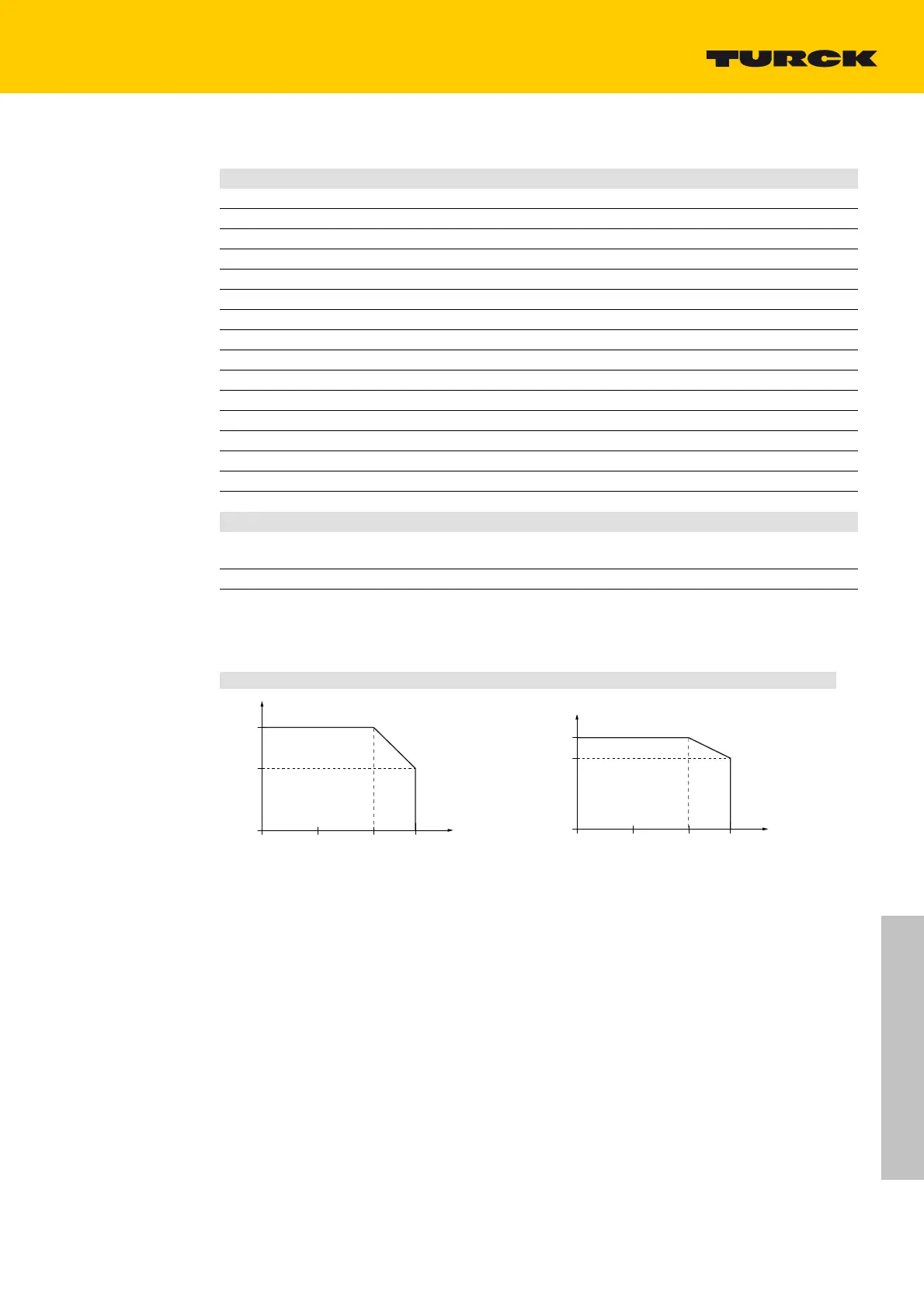

3.4.4 Technical data – safety outputs
3.4.5 Derating curves
Safety outputs
Suitable for inputs according to EN 61131-2, type 1
Output level in OFF-state
Voltage level < 5V
Current level < 1 mA
Test pulses
ohmic load, maximum 0.5 ms
maximum 1.25 ms
Interval between two test pulses
typical 500 ms
minimum 250 ms
The load has to provide a mechanical or electrical inertia in order to tolerate the test pulses.
Max. output current
DC load 2 A, derating see Derating curves (page 19)
DC13 load without external free-wheeling diode 1 A
DC13 load with external free-wheeling diode 2 A
Max. total current for device 9 A, derating see Derating curves (page 19)
Times
Internal delay time
(for calculating the Watchdog time)
10 ms
Reaction times see Safety Characteristic Data (page 16)
Max. output current, DC load Max. total current for device
Fig. 4: Derating curves
I [A]
[°C]
1.5
0-40 40 70
2
0
∑
I
[A]
[°C]
7
0-40 40 70
9
0
