Configuring with Turck Safety Configurator and Rockwell Studio 5000
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
74
Set the following values for the Assembly Instances in the "Connection" tab.
Input
Assembly
Instance
Output
Assembly
Instance
Size
(8-bit)
Safety Input 1024 1279 8
Safety Output 1279 1056 8
Configuration Assembly: 1088

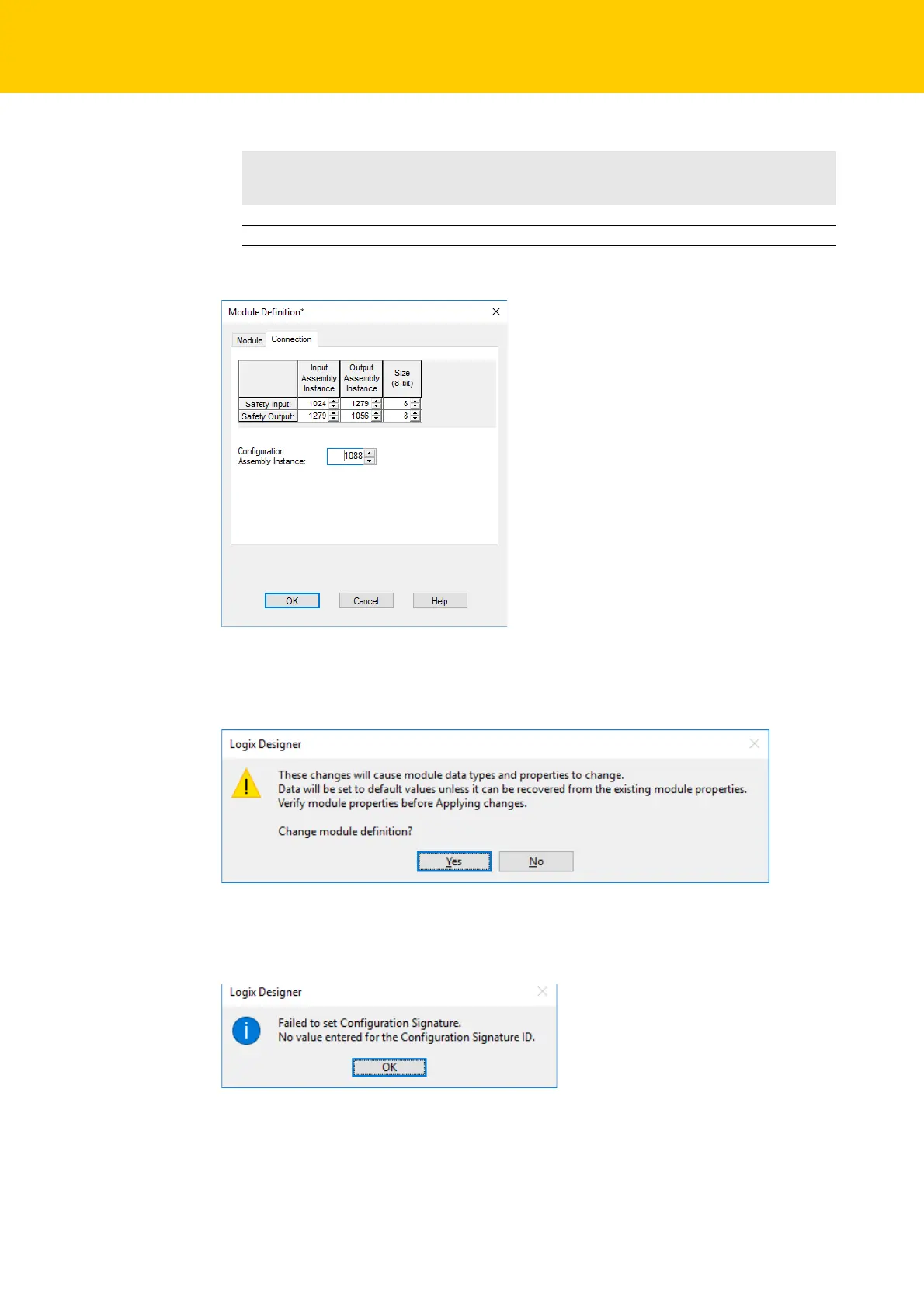

Fig. 52: Module Definition – Connection
Accept the entries with "OK".
Confirm the changes in the module properties with "Yes".
Fig. 53: Logix Designer – accepting the module properties
Click "OK" in the "New Module" window.
Click "OK" to confirm the
following note.
Fig. 54: Note – Configuration Signature
