Connecting to the Host
iSTAR eX Installation and Configuration Guide 4–11
To configure tamper, power fail and low battery
1. Select Hardware>Controller in the Administration application.
2. Create or edit an iSTAR eX controller.
3. Select the Main Board tab and configure the Special Purpose Inputs.

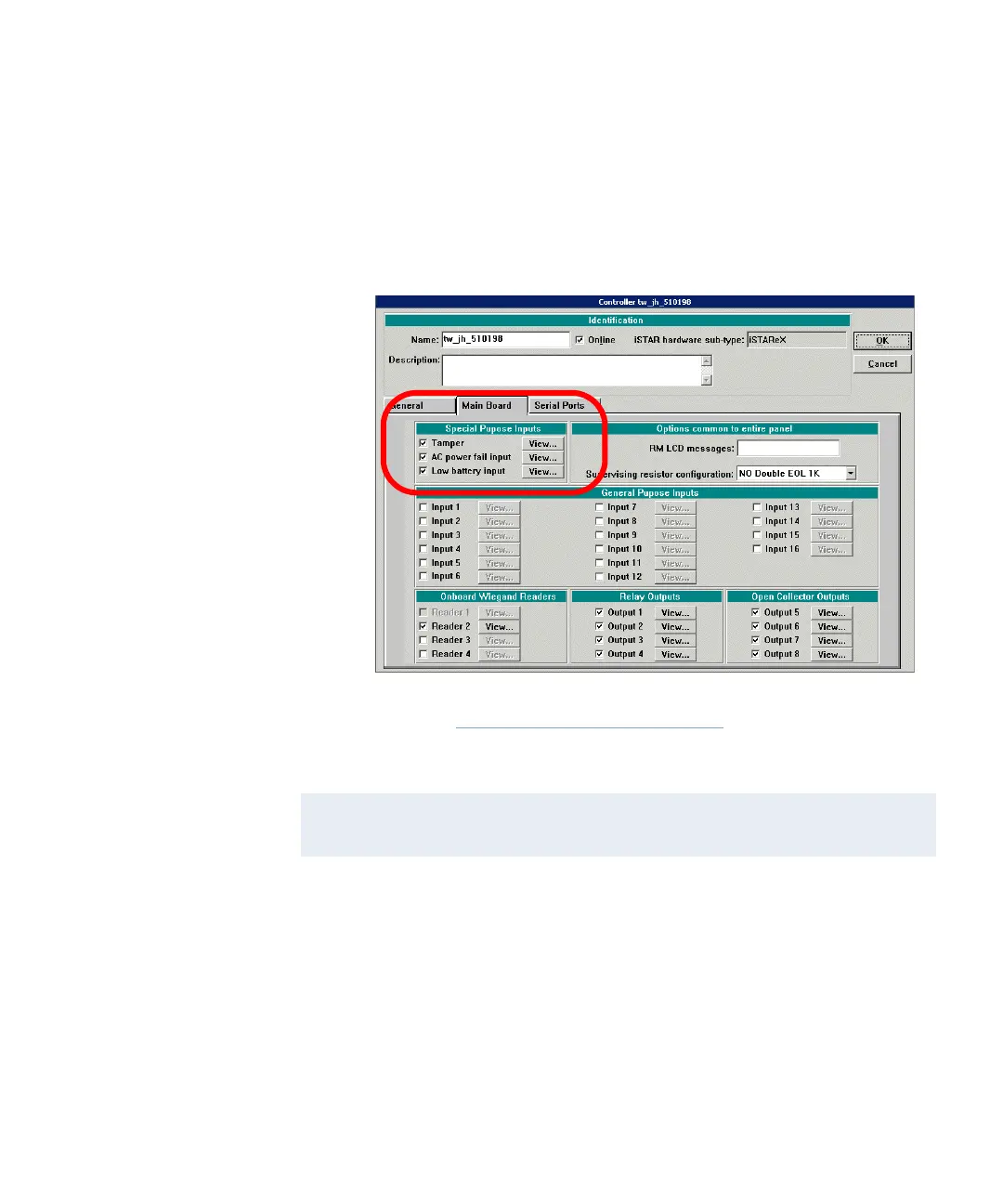

Figure 4.6: iSTAR eX Controller Special Purpose Inputs
NOTE
The Tamper, Low battery, and AC power fail inputs must be enabled to
report for compliance with UL requirements.
