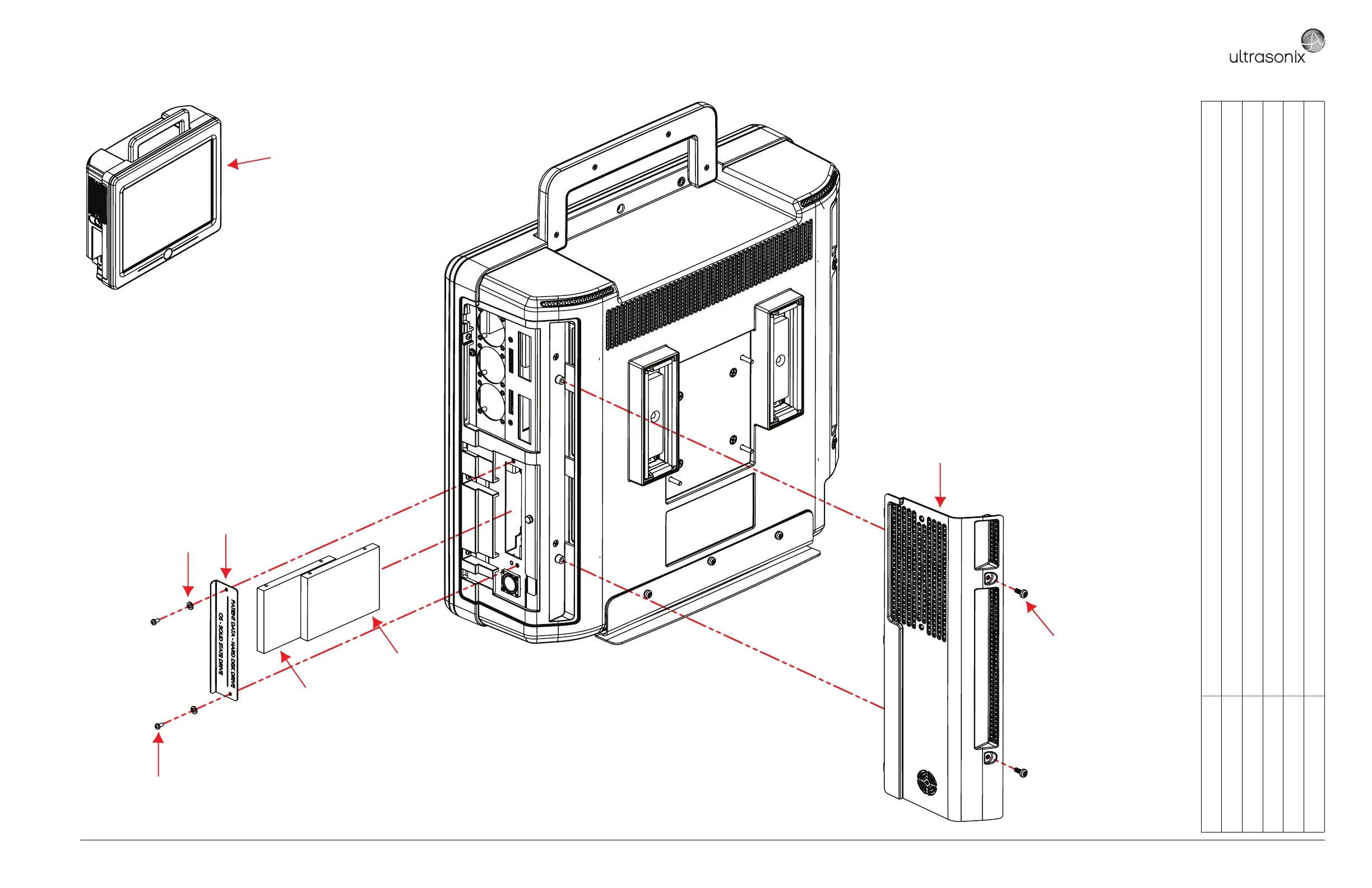

M3 x 6 Pan Head Screw (x2)
UXID: 00.031.103
Tool: #1 Phillips Screwdriver
M3 Split Lock Washer (x2)
UXID: 00.031.102
Hard Drive Cover Plate
UXID: 00.030.451
Solid State Hard Drive
UXID: 00.034.097
Patient Data Hard Drive
UXID: 00.034.105
M4 x 10 Button Head Screw (x2)
UXID: 00.031.321
Tool: 2.5mm Allen key
Hard Drive Cover
UXID: 00.038.227
SonixTablet SXTAB1.0-yymm.0001 - SXTAB1.0-yymm.0015 N/A
Rev: A-01
Hard Drive Removal 1.0 Rev 1 S4001_Hard Drive Removal
Field Service Component:
Applicable Product(s):
System Serial No. Range:
Modulo Serial No. Range:
Revision Number:
Internal Mechanical View:
