Ultrasonix SonixTablet - Page 122

SonixTablet Service Manual 00.053.129, Revision C Appendix D: Service Drawings
D-4

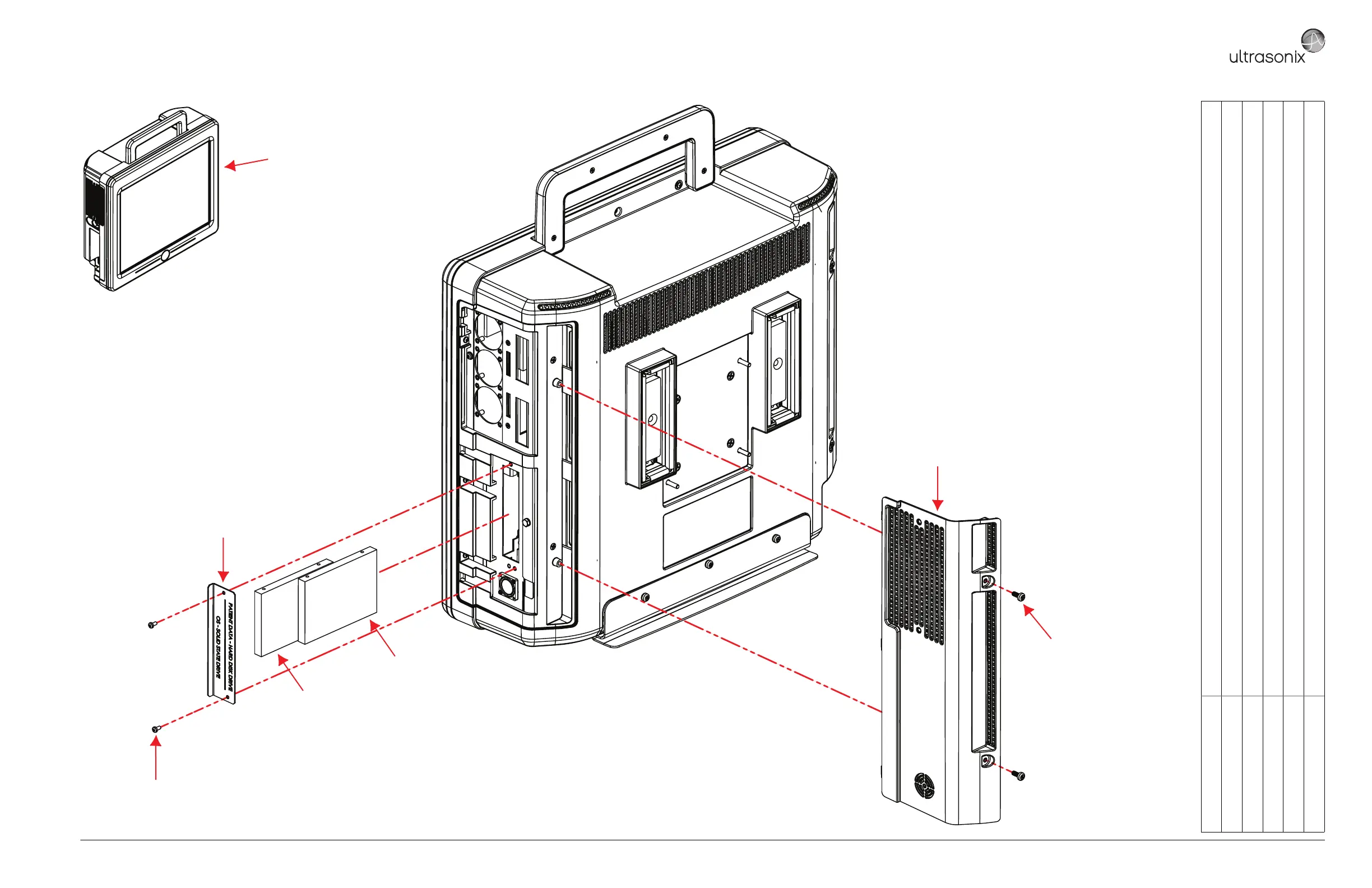

M3 x 6 Pan Head Screw with intergrated washer (x2)
UXID: 00.031.404
Tool: #1 Phillips Screwdriver
Hard Drive Cover Plate
UXID: 00.030.451
Solid State Hard Drive
UXID: 00.034.097
Patient Data Hard Drive
UXID: 00.034.105
M4 x 10 Button Head Screw (x2)
UXID: 00.031.321
Tool: 2.5mm Allen key
Hard Drive Cover
UXID: 00.038.227
SonixTablet SXTAB1.1-yymm.0016 - N/A
Rev: 1.1
Hard Drive Removal 1.1 Rev 1 S4001_Hard Drive Removal
Field Service Component:
Applicable Product(s):
System Serial No. Range:
Modulo Serial No. Range:
Revision Number:
Internal Mechanical View:
