SonixTablet Service Manual 00.053.129, Revision C Appendix D: Service Drawings
D-5
3
1
M3x6 Knurled Thumbscrews (x2)
UXID: 00.031.402
No Tool Required
M3 Wave Washers (x2)
UXID: 00.031.400
2
Slide
Air Filter
UXID: 00.032.194
Caution: Before removing the filter, gently lay the system face down
on a protective mat (such as bubble wrap or a soft towel).

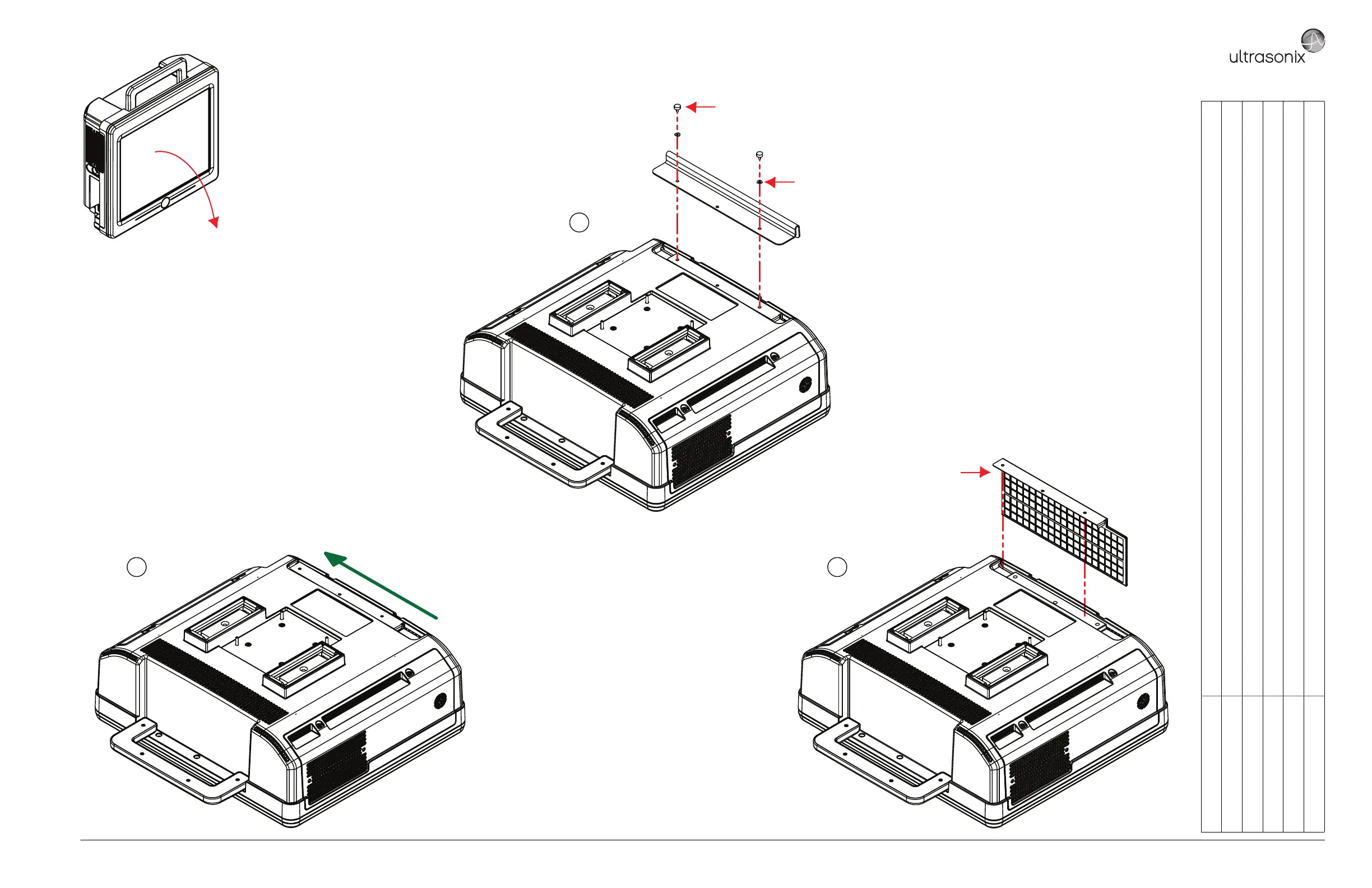

System Filter Removal/Replacement SonixTablet N/A
Rev: A-01
Rev 1 S4002_Air Filter
Field Service Component:
Applicable Product(s):
System Serial No. Range:
Modulo Serial No. Range:
Revision Number:
Internal Mechanical View:
