8.1.3 DICOM Print Settings
DICOM Print Settings offer basic and advanced settings for configuring the system for DICOM Print.
To Access DICOM Print Settings:
1. Tap the touch screen Menu button.
2. Select Administrator > DICOM > Print.
8.1.3.1 DICOM Print Settings – AE Configuration
The DICOM Print AE Configuration dialog enables configuration of AE properties.

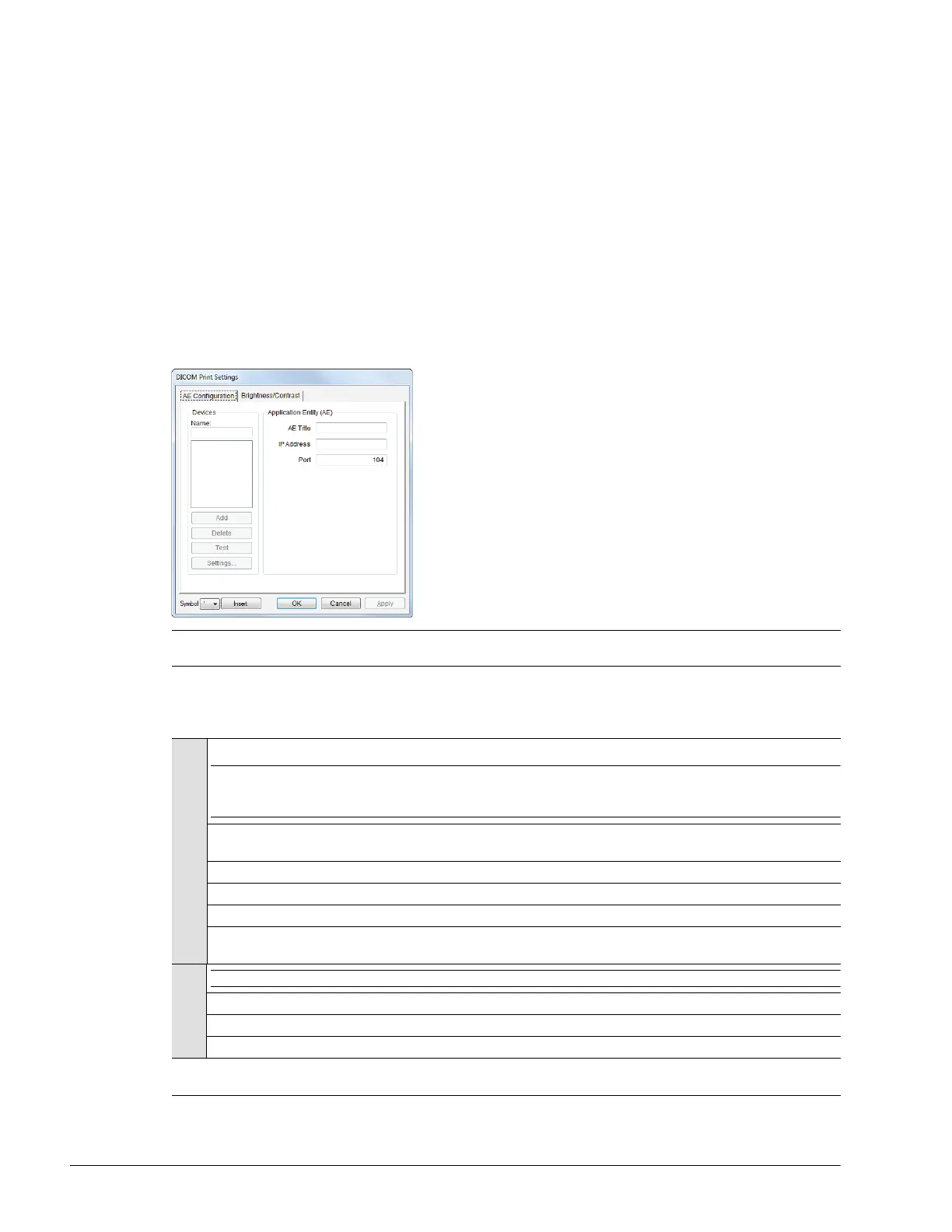

Figure 8-8: DICOM Print Settings – AE Configuration
Table 8-7: DICOM Print Settings – AE Configuration
Note: In addition to the two tabbed settings options, select the Settings... button to access Print Settings and
Advanced Print Settings.
Devices
Use the Devices option to add as many DICOM Print Servers as required.
Note: If more than one DICOM Print Server is configured, during data transfer the Operator has the option of
selecting which Print Server(s) will receive the data.
These options are only available when a Device is (or has been) added.
Name
Enter/select the Name of an AE Print Device and populate the three AE fields: AE Title, IP Address
and Port.
Add Select to Add the new AE Print Device.
Delete Select to Delete the selected AE Print Device.
Test Select to send verification request to DICOM Print Device (ping to verify connection).
Settings...
Select to access Print Settings (Figure 8-9 and Table 8-8) and Advanced Print Settings (Figure
8-10 and Table 8-9).
Application
Entity (AE)
Note: The data entered/edited for the next three fields is specific to the selected Device Name.
AE Title AE Title of the Print SCP.
IP Address Unique identifier of Print SCP.
Port Listening Port of the Print SCP.
Insert (Symbol)
Enables the insertion of text symbol(s) not available on the keyboard (e.g., punctuation, symbols and
letters from other languages).
