1.8 SYSTEM OVERVIEW
The SonixTouch Q+ Ultrasound System is a software driven, ergonomic, diagnostic medical device. It uses state of the art
technologies to acquire, process and display ultrasound data (Figure 1-1).
The system has several major field serviceable components including: LCD display with built-in speakers and a multi-
position, articulated lift system, operator console, modulo, transducers and UPS.

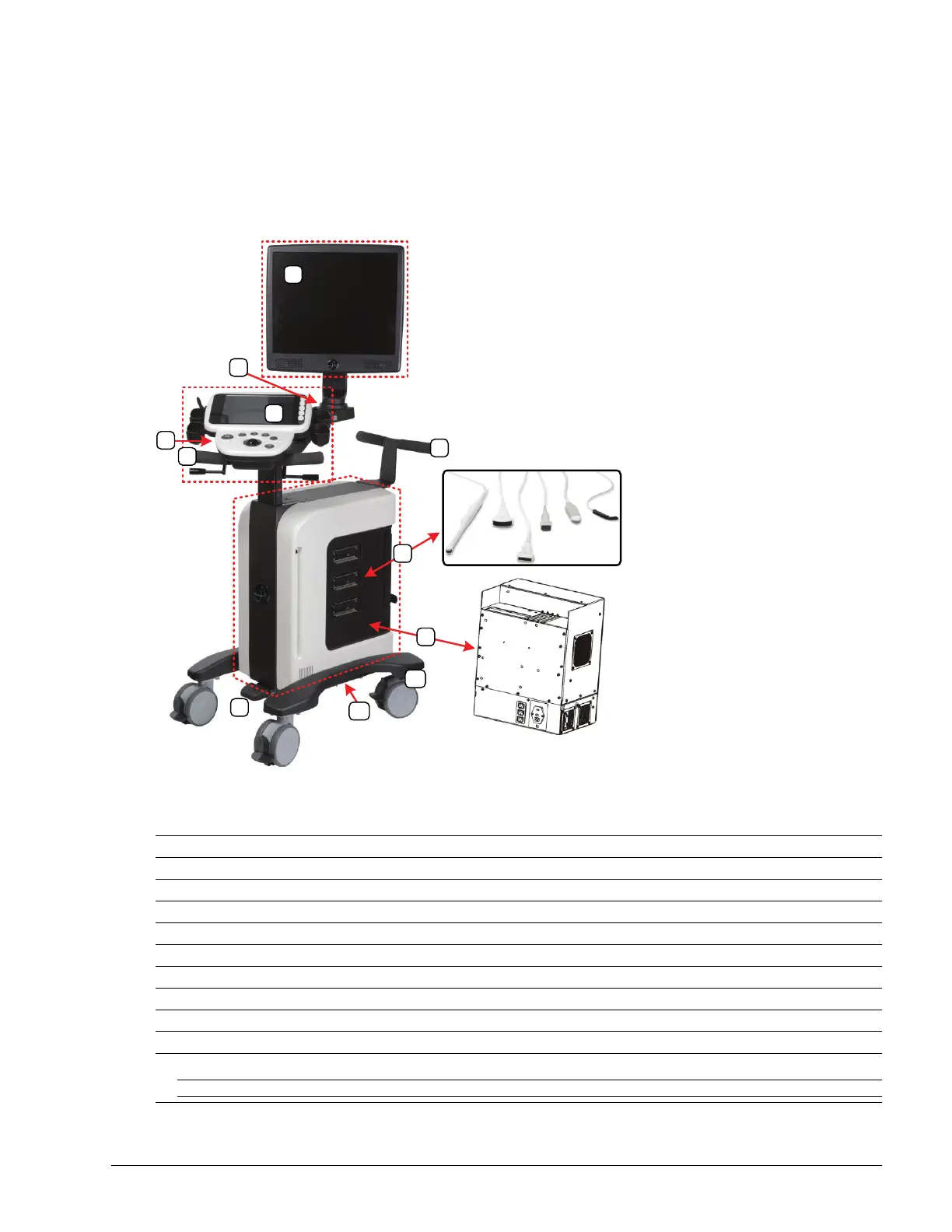

Figure 1-1: System Components
Table 1-1: System Components
1 LCD display
2 Power button
3 Operator console with touch screen
4 Side Connectivity Panel
5 Front pull handles
6 Rear pull handles
7 System case with three transducer ports
8 Modulo
9 Foot pedal (for console height adjustment)
10 Optional uninterruptible power supply (UPS) with external breaker access
11
Wheel base with four, dual lock casters
Note: Each caster can be set in three positions: unlocked, directional lock and total lock (3.3.1.1).
1
3
5
6
8
10
9
11
4
7
2
