7.8 MISCELLANEOUS PARTS
7.8.1 Transducers Holders and Cable Hooks
The transducer holders are connected with a simple thumbscrew that is hand-tightened. No tools are required.

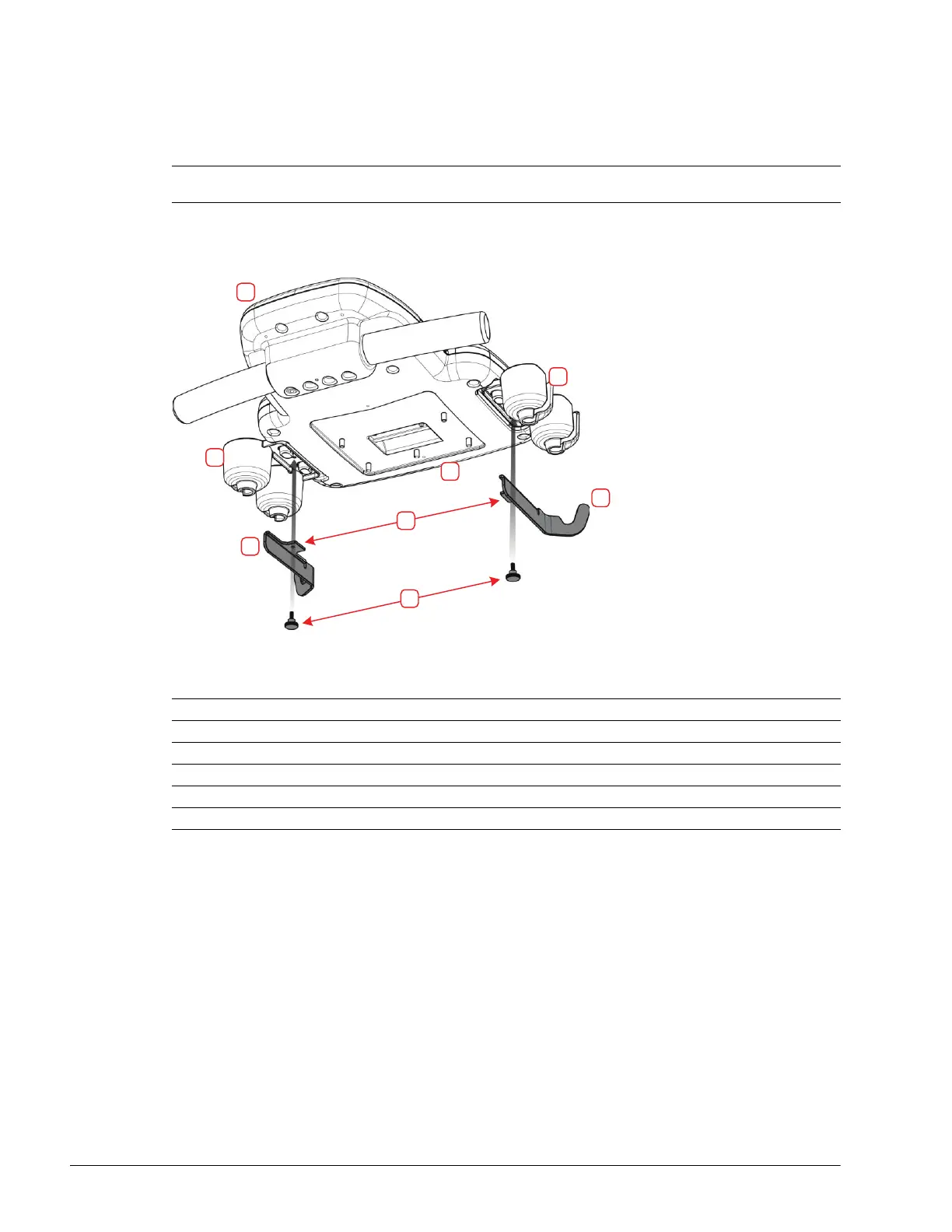

Figure 7-8: Transducer Holders and Cable Hooks
Table 7-3: Transducer Holders and Cable Hooks
Note: For best results, Ultrasonix recommends removing the transducer holders before cleaning (11.2.8). This will
allow the operator to clean all the various curves and folds in a more effective manner.
1 Console Front
2 Console Rear
3 Transducer Holders
4 Connecting Flange for Thumbscrew (faces inward)
5 Cable Hooks (hook faces rear)
6 Thumbscrews (for Cable Hooks)
1
3
3
5
2
5
6
4
