7.2.3 Turning ON the UPS Breakers
To Turn ON the UPS Breakers:
1. Plug in the system.
2. Turn 1: Battery Breaker to the ON position.
3. Turn 2: AC Input Breaker to the ON position.
Warning: Do not perform any internal system maintenance if the UPS breakers are turned on.

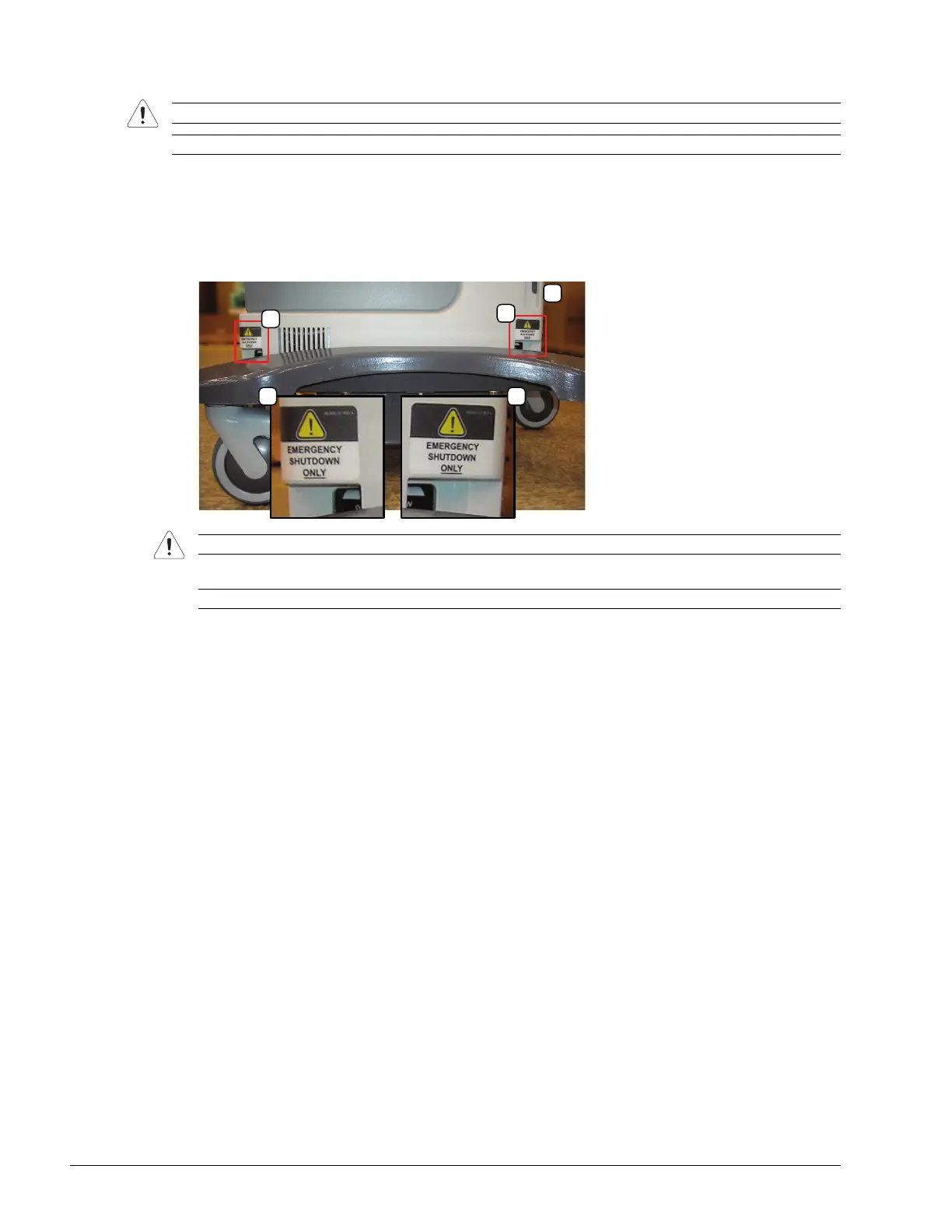

Note: Breaker access is at the bottom of left side shroud (Figure 6-1).
Caution: It is important to turn the breakers ON in the order specified.
Note: Be sure to locate the breakers based on the system front (3).
