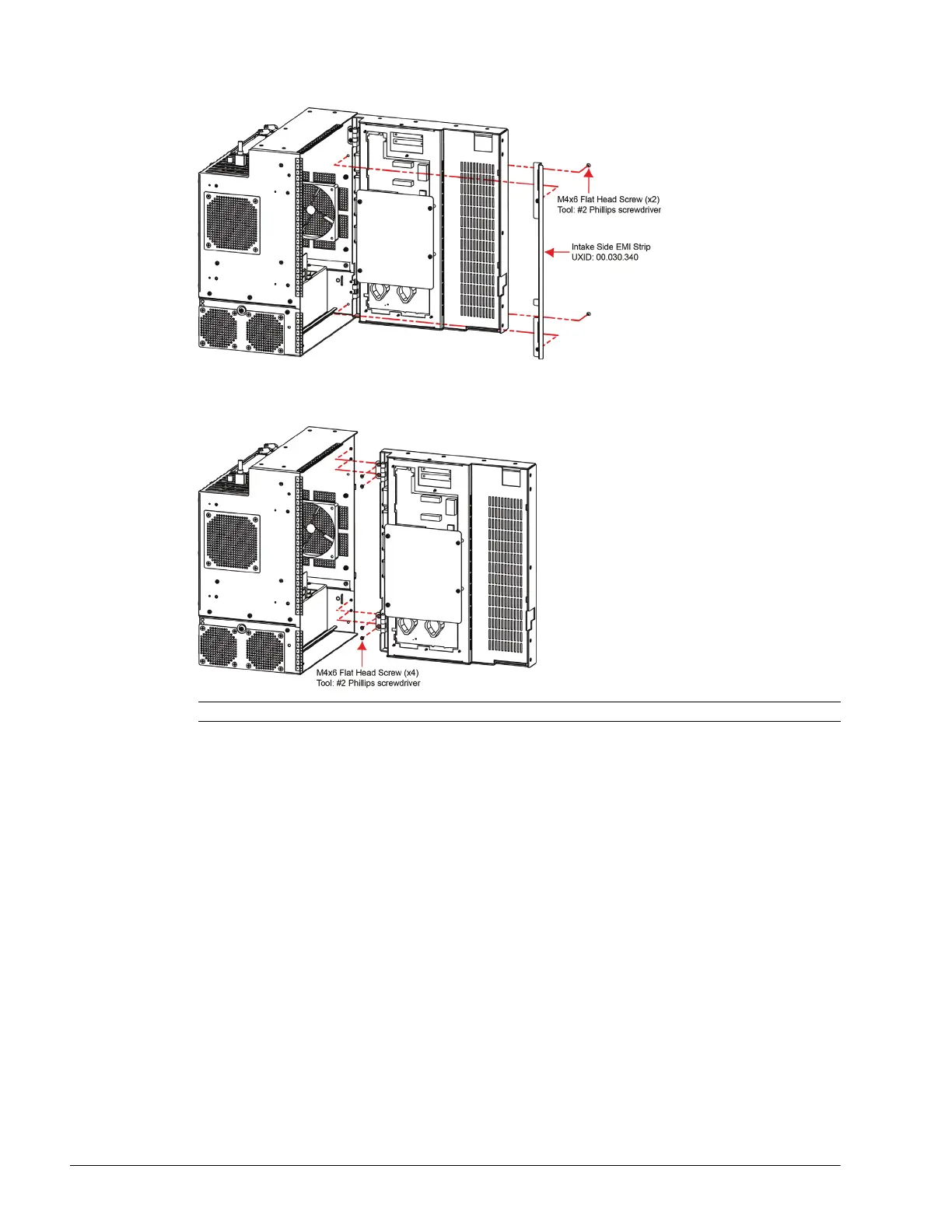

3. Open the door wider to expose the Side EMI Strip. Using the #2 Phillips screwdriver, from the exterior of the
modulo, remove the two screws fastening the Side EMI Strip over the door hinges.
4. Remove the modulo door hinge cover from inside the modulo and expose the two hinges.
5. To remove the door, use the #2 Phillips screwdriver to undo the two hinges (two screws per hinge).
6. The Front Block/Ultrasound Module can now be removed.
Note: The arrows (above) mark the two screws on the top hinge.
