User's Guide ______________________________________________________________________
76 __________________________________________________________________ M211296EN-A
1101-012

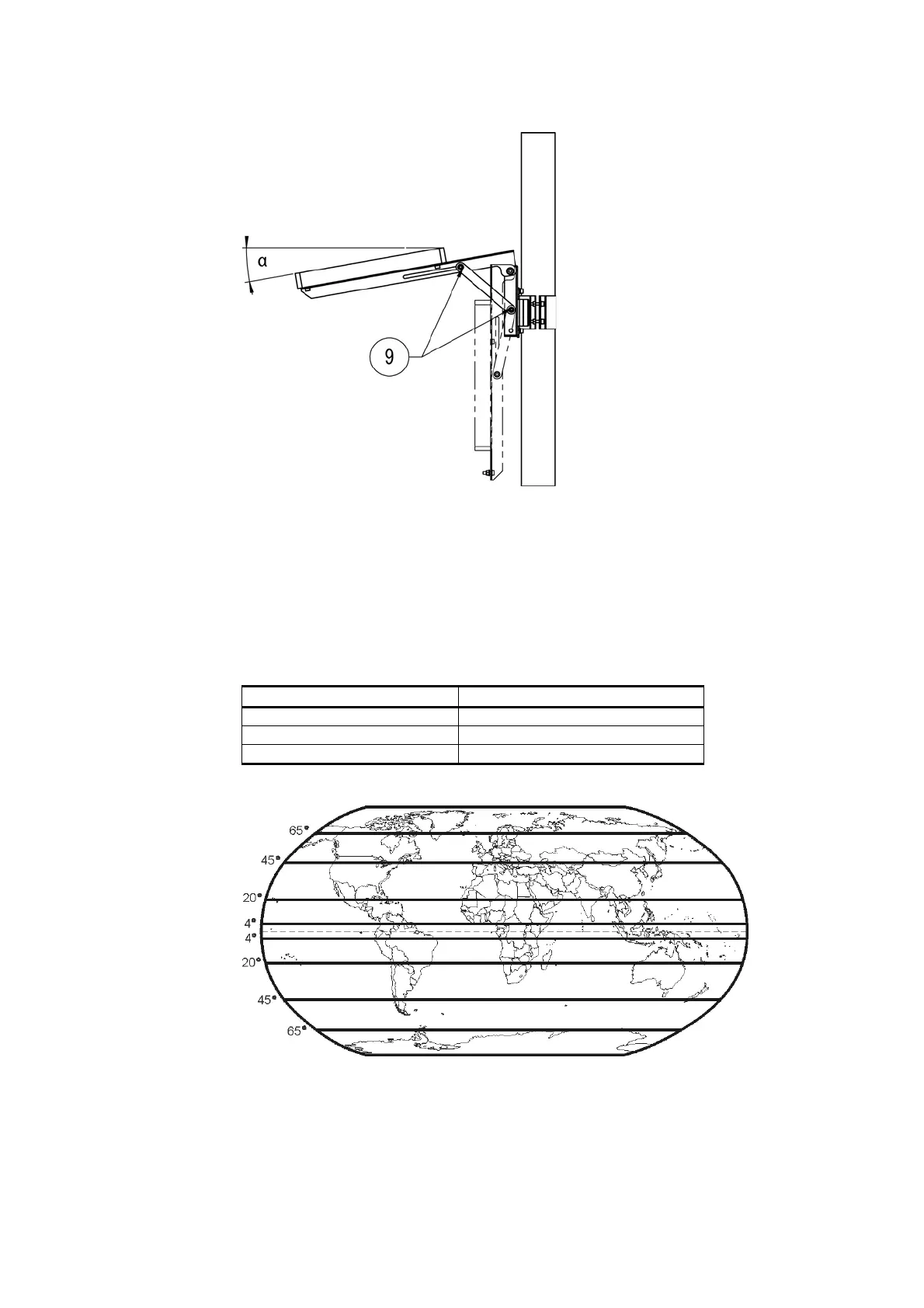

Figure 35 Adjusting Solar Panel SOLAR33 Tilting Angle
The following letter and number refer to Figure 35 above:
α = Tilting angle
9 = Adjusting screws; use Allen key 5 mm and wrench 10 mm
Table 18 Recommended Tilt Angle for Solar Panel
Latitude of Site Tilt Angle
0 ...10° 20°
10 ... 50° Add 10° to local latitude
>50° 60°
0011-042
Figure 36 Map of Latitudes
