Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 75
1101-011

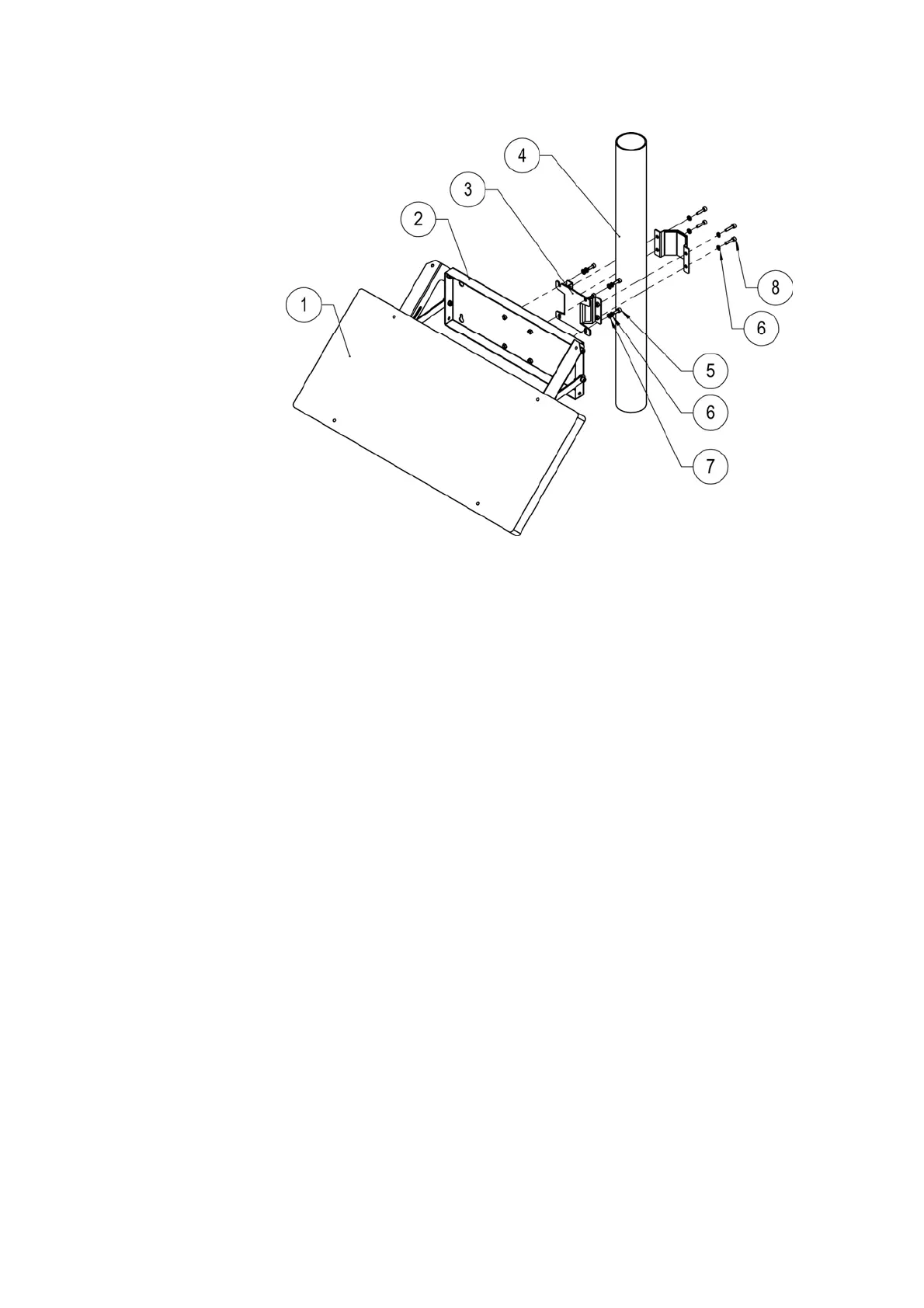

Figure 34 Installing Solar Panel SOLAR33
The following numbers refer to Figure 34 above:
1 = Solar panel
2 = Frame for solar panel
3 = Bracket APPK-SET75
4 = Pole mast
5 = Screw M6x20 DIN912 A4, 4 pcs; use Allen key 5 mm
6 = Spring washer B6 DIN127 A4, 8 pcs
7 = Washer A6 DIN 125 A4, 4 pcs
8 = Screw M6x25 DIN912 A4, 4 pcs; use Allen key 5 mm
