Configuring Devices for the DME
DME Admin Guide 201

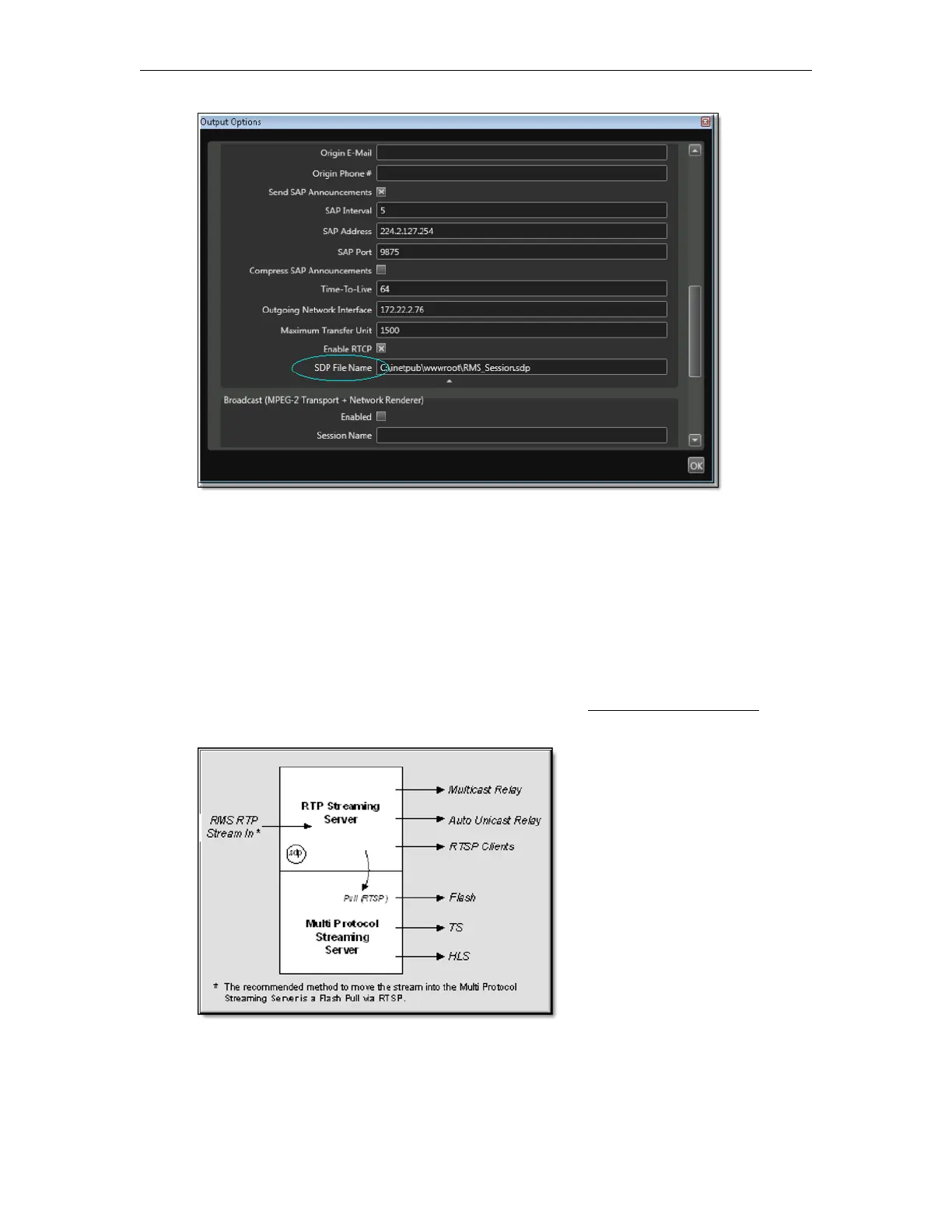

Figure 2. RMS Broadcast Options (Part 2)
3. Enter the DME IP Address as the RTSP Address. Enter the DME Auto Unicast
destination port as the RTSP port. You can indicate use of the Auto Unicast listener on
either the RTP server or the Multi Protocol server by designating the appropriate DME
port. The Multi Protocol server (In-2) is recommended. If password security is enabled
the RTSP Username and Password must be entered. Enter an
SDP File Name. This name
will be the stream name for stream redistribution.
4. After starting the session, a live RTP stream will be available in the DME that can be
served in a number of ways (see Figure 37). For example, you can reflect the stream as a
multicast relay or auto-unicast it to another DME. See
Configure a DME Stream for
more information.
Figure 3. RMS/DME Integration
