VIDEOJET DataFlex 6530 - Page 109

Videojet DataFlex 6530 Illustrated Parts Breakdown - Rev AA 9-11
Illustrated Parts List
* - indicates items not shown in the figure.

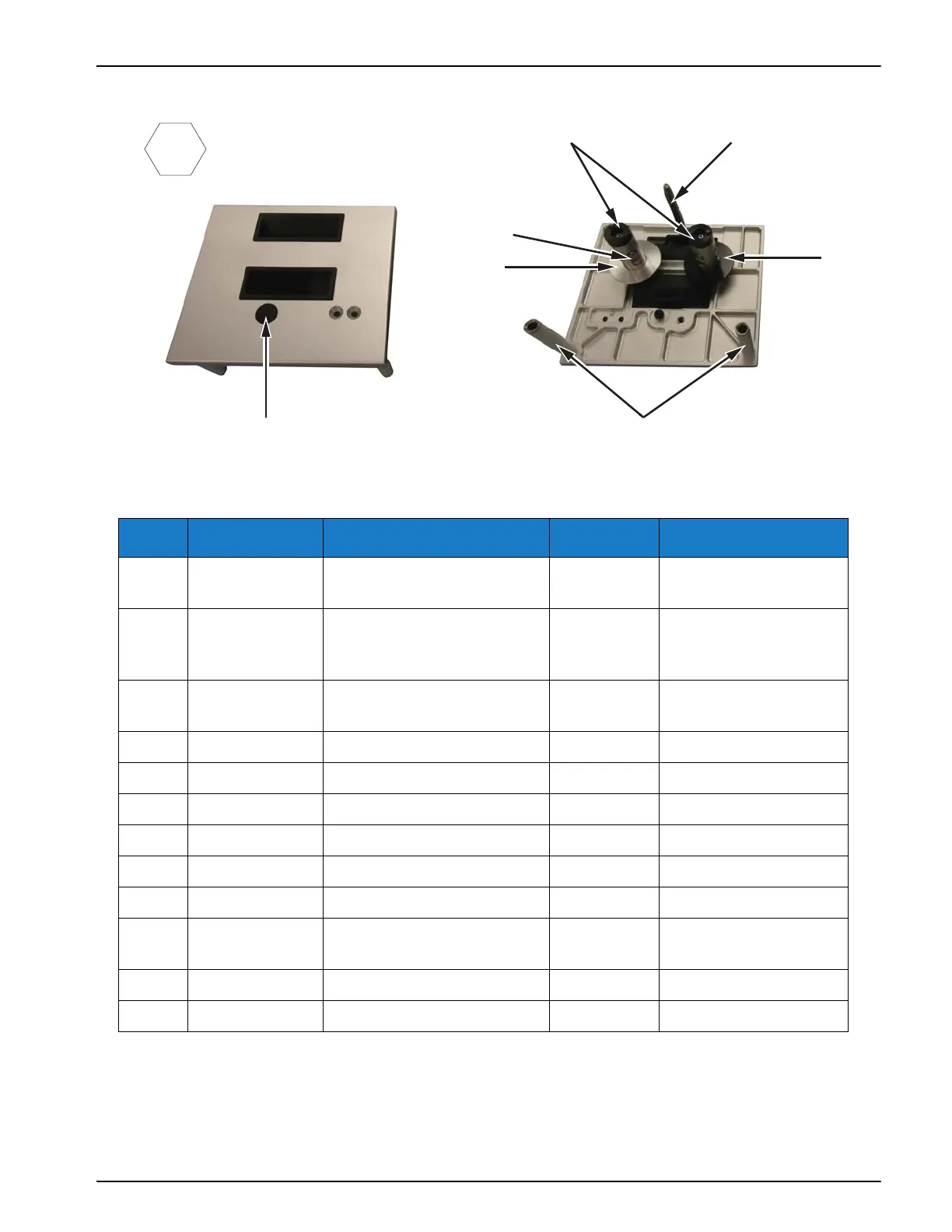

Figure 9-8: Cassette Assembly
Item Part Number Descriptions Quantity Sub-assembly
B Videojet DataFlex 6530
Printer
B3 407947 Spare Videojet DataFlex
6530 53mm Cassette
Assembly
1 407951 53mm Mandrel Body
Assembly
1
2 407953 Cassette Middle Guide Pin 1
3 216808 Black Disc - Pack 5 off
4 216032 53mm Cassette Roller Set of 6
5 216809 Silver Disc - Pack 5 off
6 407952 Leaf Springs - Pack 6 off
7 216810 Cassette Release Button 1
8* 407950 53mm Mandrel 
Refurbishment Kit
1
9* 403057 Friction Cone - Pack 10 off
10* 407949 Cassette Shock Cap - Pack 10 off
Table 9-9: Cassette Assembly_Parts List
12
3
4
6
5
7
B3
