Section 3 Main Parts
This section contains information about the integral parts and accessories of the printer.
3.1 Equipment Description
The main parts of the Videojet DataFlex 6530 printer are described as follows:
•Printer
• CLARiTY HMI Display and Power Supply Unit (PSU)

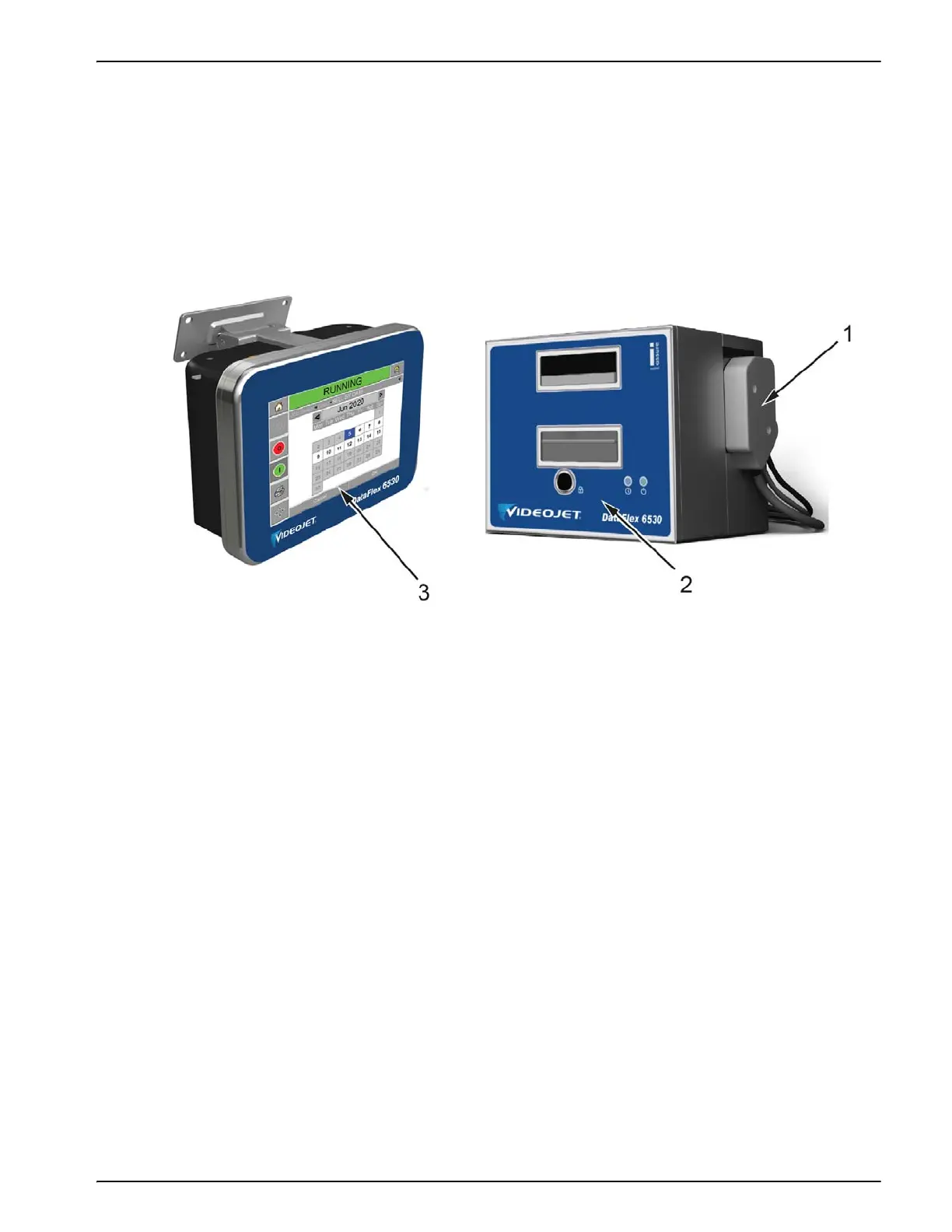

Figure 3-1: Videojet DataFlex 6530 Printer and CLARiTY HMI Display
1. Interconnecting Cable
2. Printer
3. CLARiTY HMI Display and
Power Supply Unit (PSU)
