Appendix C Test Points
C.1 Introduction
Note: All references are made as viewed from the front side of the PCB unless mentioned.
C.2 MCB Test Points
Test Point Voltage/PCB Label and location Acceptable Voltage Range
TP9 +3V3 (top right segment of PCB) 3.25 - 3.35 V
TP3 +5V (top right segment of PCB) 4.75 - 5.25 V
TP5 +12V (top left segment of PCB) 11.75 - 12.25 V
Table C-1: Main Board Test Points
TP2
TP9
TP3
TP17
TP47
TP45
TP88
TP86
TP5
TP16
TP42

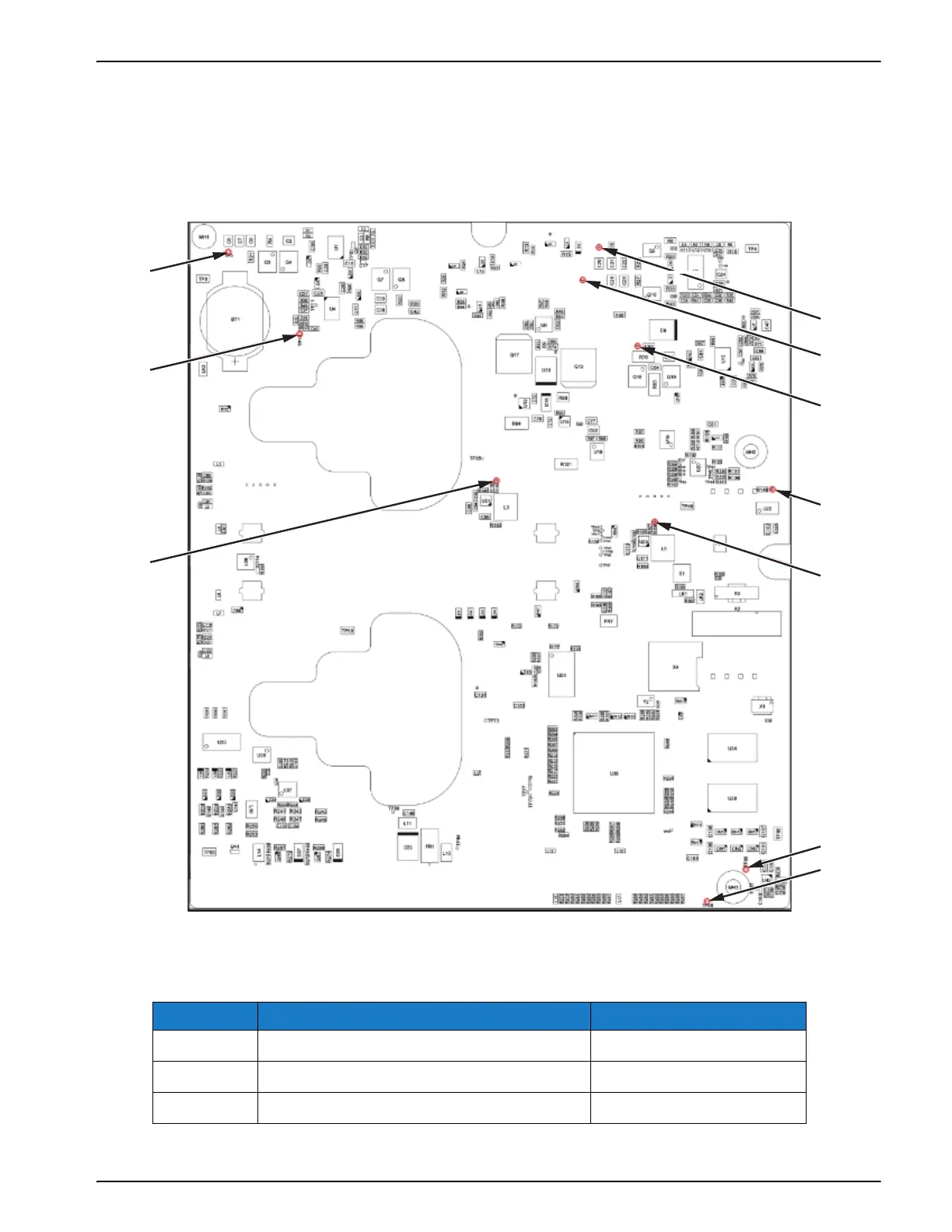

Figure C-1: Main Board Test Points
