3-2 Videojet DataFlex 6530 Service Manual - Rev AA
Main Parts
3.1.1 Printer
The Videojet DataFlex 6530 printer uses high-resolution thermal transfer technology with a
unique electronic ribbon drive and printhead control, eliminating the need for compressed air. It
consists of the following parts:
• Printhead
• Printhead PCB
• iAssure Light Box and Lens
•Ribbon Detector PCB
• Carriage Assembly and Linear Slide
• Belt and Idler Pulley Assembly
•Motors
•Main PCB

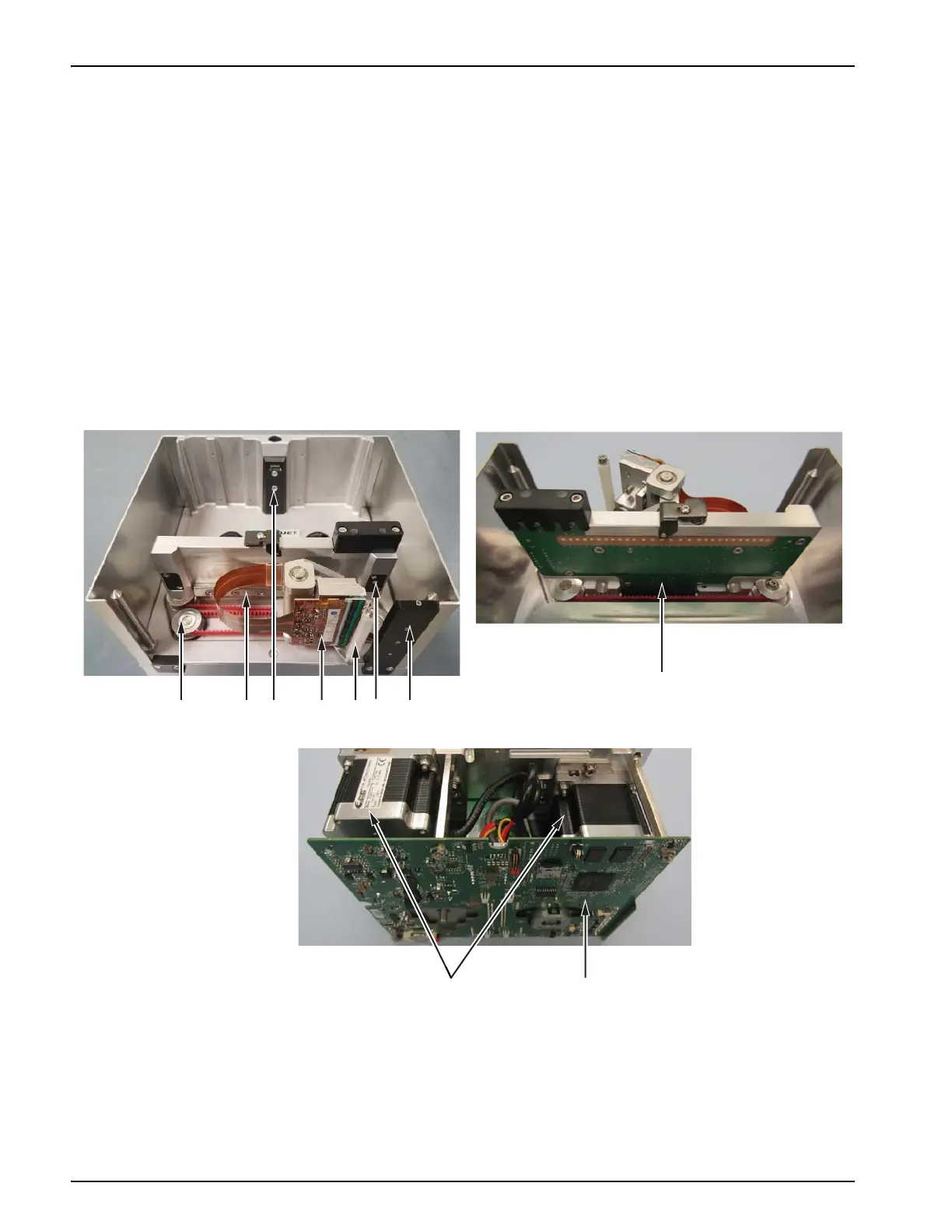

1. Printhead PCB
2. iAssure Light Box
3. iAssure Lens
4. Carriage Assembly
5. Printhead
6. Ribbon Detector PCB
7. Linear Slide
8. Belt and Idler Pulley Assembly
9. Motor (x4)
10. Main PCB
Figure 3-2: Printer
