VIDEOJET DataFlex 6530 - C.5 CLARITY Controller PCB Test Points

Videojet DataFlex 6530 Service Manual - Rev AA C-5
C.5 CLARITY Controller PCB Test Points
Note: X3_M1, X3_M2 DGND test points can be used as DGND reference.
Test Point Voltage/PCB Label and location Acceptable Voltage Range
TP 1 +28V8 28.5 - 29.1 V
TP 10 +3V3 (bottom mid left segment of PCB) 3.25 - 3.35 V
TP 11 -5V_GUI 5.01 - 5.11 V
Table C-4: CLARITY Controller PCB Test Points
TP11
TP1
DGND
TP10

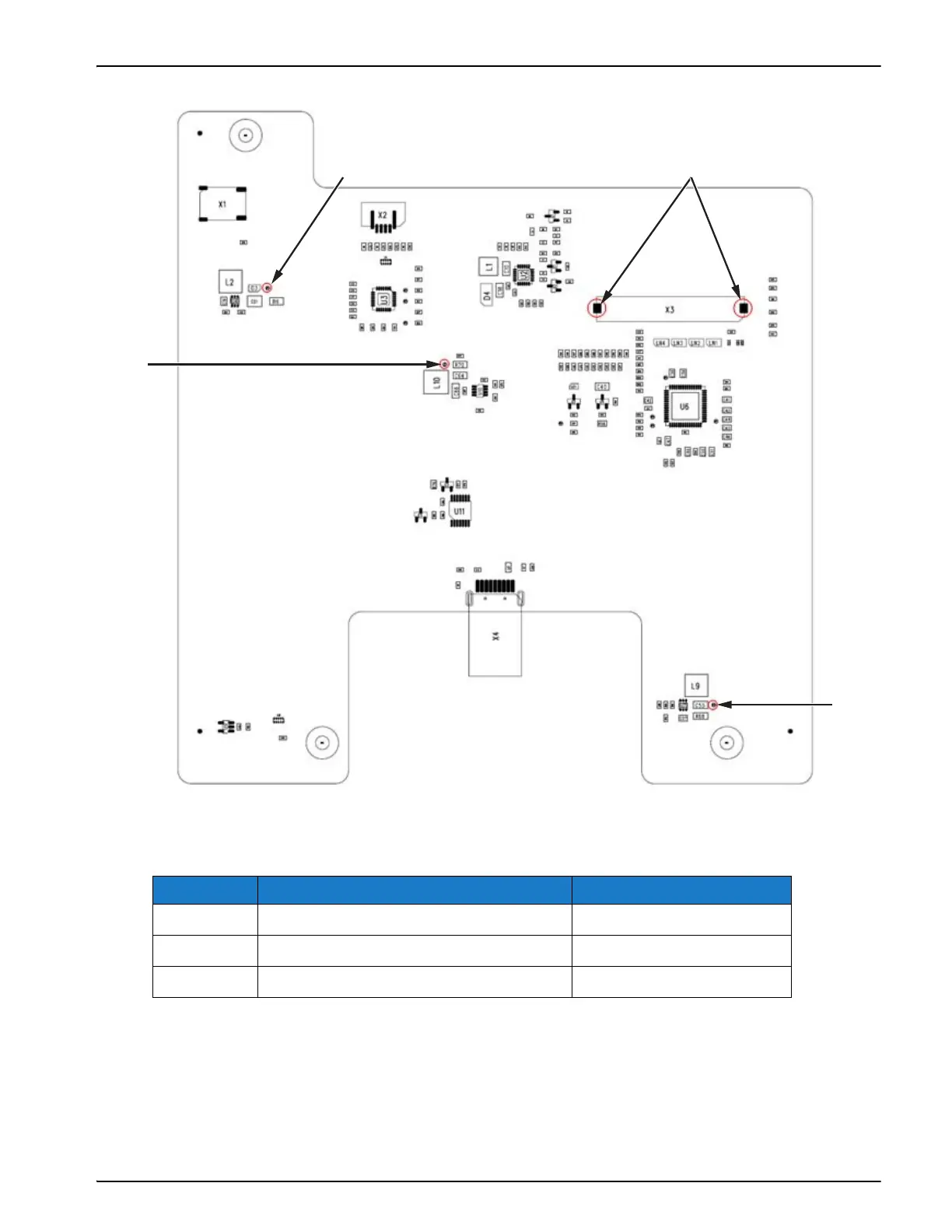

Figure C-4: CLARITY Controller PCB Test Points
