Watlow F4T • 97 • Chapter 5 Function Reference

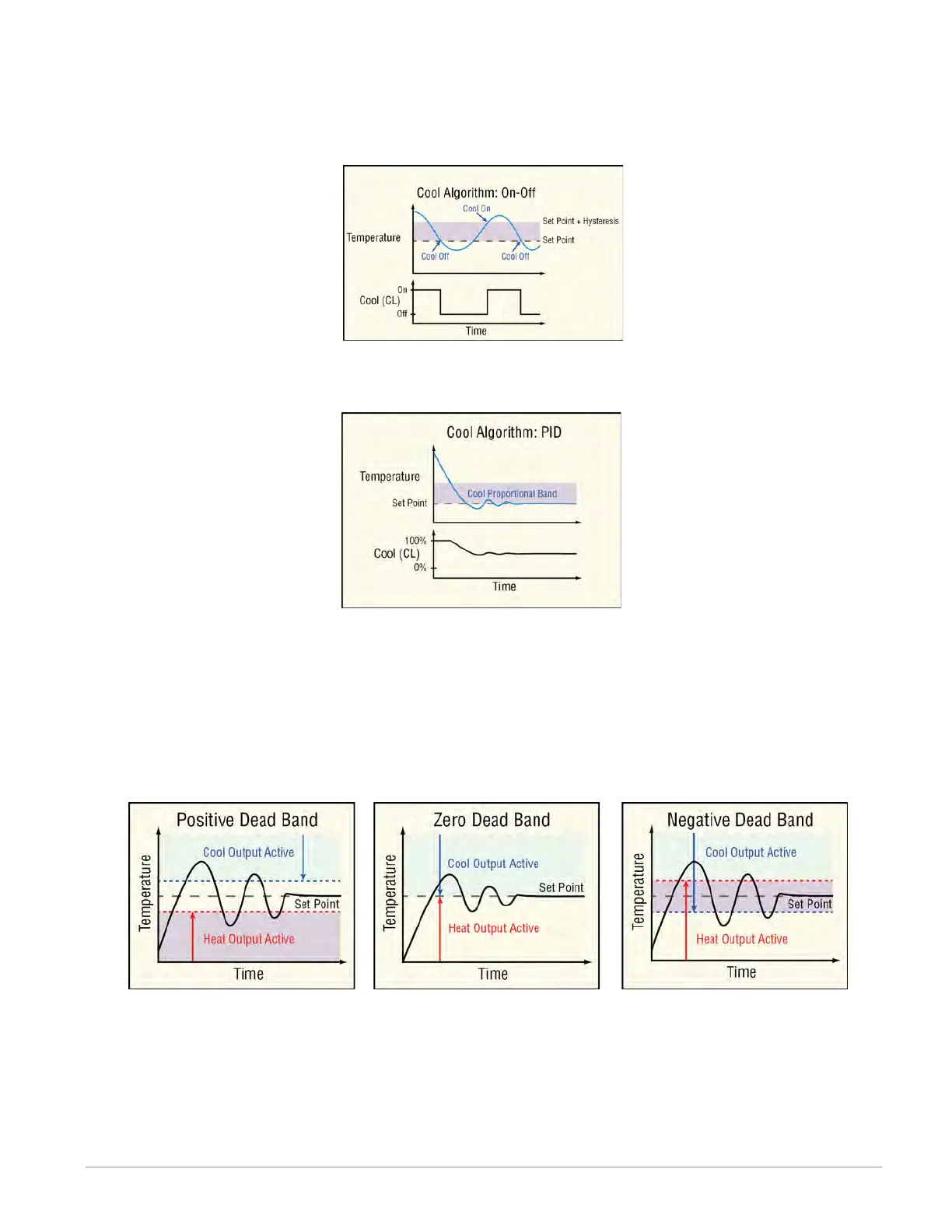

Options:
• Off: no cool output is calculated or applied to CL or PWR outputs
• On/Off: On-Off control sets the CL and PWR outputs on (100% for CL and -100% for
PWR) or off (0%)
• PID: PID control sets the CL and PWR outputs to a value from no cooling 0% to full cool-
ing (100% for CL and -100% for PWR)
Inner Loop Deadband
Set the offset between the set point and the heat and cool proportional bands. A positive
deadband can reduce overshoot upon power up without changing the responsiveness of the
system at other times and prevents heating and cooling outputs from being on at the same
time. A negative deadband allows both the heat and cool outputs to be active around the set
point which can be of benefit when a process must be controlled near the ambient tempera-
ture.
Range: -1,000.0 to 1,000.0 ºF or units
-555 to 555 ºC

Watlow F4T Specifications

General

Inputs	Thermocouple, RTD, mA, V
Outputs	Relay, SSR, mA, V
Communication	Ethernet, Modbus RTU
Data Logging	Yes
Certifications	CE, UL, cUL, RoHS
Control Modes	PID, On/Off
Power Supply	100 to 240 VAC
Operating Temperature	0 to 50°C
Enclosure Rating	IP65
Display	4.3 in. (109 mm) color touch panel LCD
Control Loops	Up to 4
