163
CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
Range
[Factory Setting]
Parameter
Unit
Description / Notes
P233
0 or 1
Analog Inputs
[ 0 ]
DeadZone
-
This parameter is active onlyfor the analog inputs (AIx) programmed as
speedreference.
When set to 1 enables the Dead Zone for theAnalog Inputs.
If P233 = 0 (Off) the “zero” signal at the Analog Inputs (0 V/0 mA/ 4 mA
or 10 V/20 mA) is directly related to the minimum speed programmed at
P133. Refer to figure 6.28 a).
If P233 = 1 (On) theAnalog Inputs have a “dead zone”, and the speed
reference remains at its minimum value (defined byP133) until theinput
signalreaches a levelproportional to theminimum speed. Refer to figure
6.28 b).
P232
(1)
0 to 2
Stop Mode
[ 0 ]
Selection
-
P232
Stop Mode
0
Ramp to Stop
1
Coast to Stop
2
Fast Stop
P134
Reference

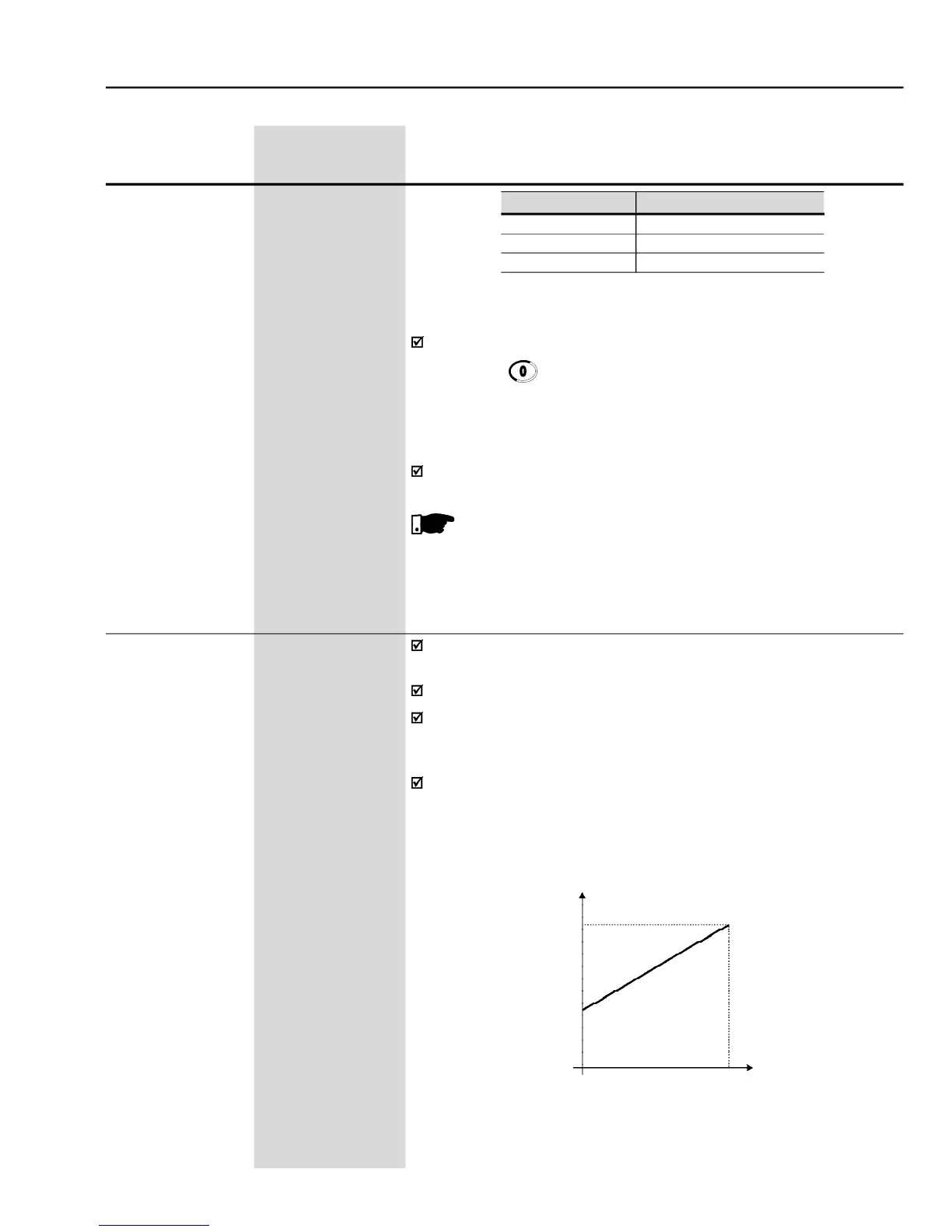

a) Inactive Dead Zone
P233 = 0
0
Alx Signal
P133
Parameter P232 is valid only for the following commands:
1) The key of the keypad;
2) Start/Stop function with 2-wire control (through DI1 = 1);
3) Start/Stop function with 3-wire control (refer to parameters from P265
to P270 for a complete description about the function 14).
In the V/F Mode the option 2 (Fast Stop) is not available.
Table 6.33
- Stop mode selection
NOTE!
When the “Coast to Stop” option is selected, only start the motor if
it is completely stopped.
0
.....................................
10 V
0
...................................
20 mA
4 mA
..............................
20 mA
10 V
...................................
0
20 mA
.................................
0
20 mA
.............................
4 mA
