CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
Line Supply Returns
DC Link Voltage
E02 level
Enabled
Disabled
Output Pulses
TimeAjusted
P332
P332
P331
Output Voltage
0 V
Output Speed (P002)
0 rpm

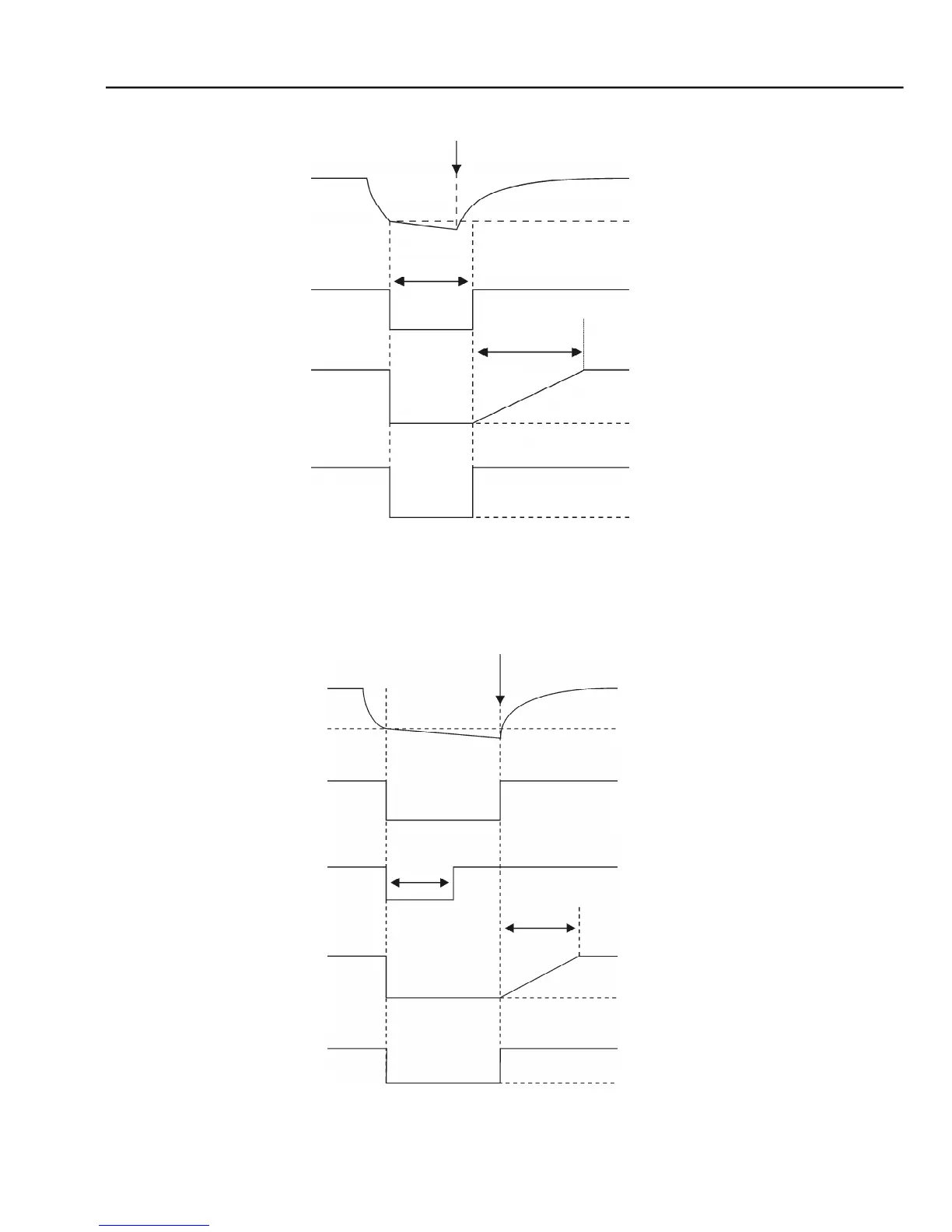

Figure 6.44 b)
- Ride-Through actuation (line returns after time set in P332, but before 2 sec for
P332

1 sec or before 2 x P332 for P332 >
1 sec) in V/F mode
Figure 6.44 a)
- Ride-Through actuation (line returns before time set at P332 elapses) in V/F mode
Line Supply Returns
DC Link Voltage
E02 level
Enabled
Disabled
Output Pulses
P332
P331
Output Voltage
0 V
Output Speed (P002)
0 rpm
