CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
3.
Press on the EBA board (near XC3) and on the left top edge until com-
plete insertion of the connector and plastic spacer;
4.
Secure the board to the metallic spacers with the screws provided;
5.
Plug XC11 connector of the EBAboard to the XC11 connector of the
(CC9) control board.

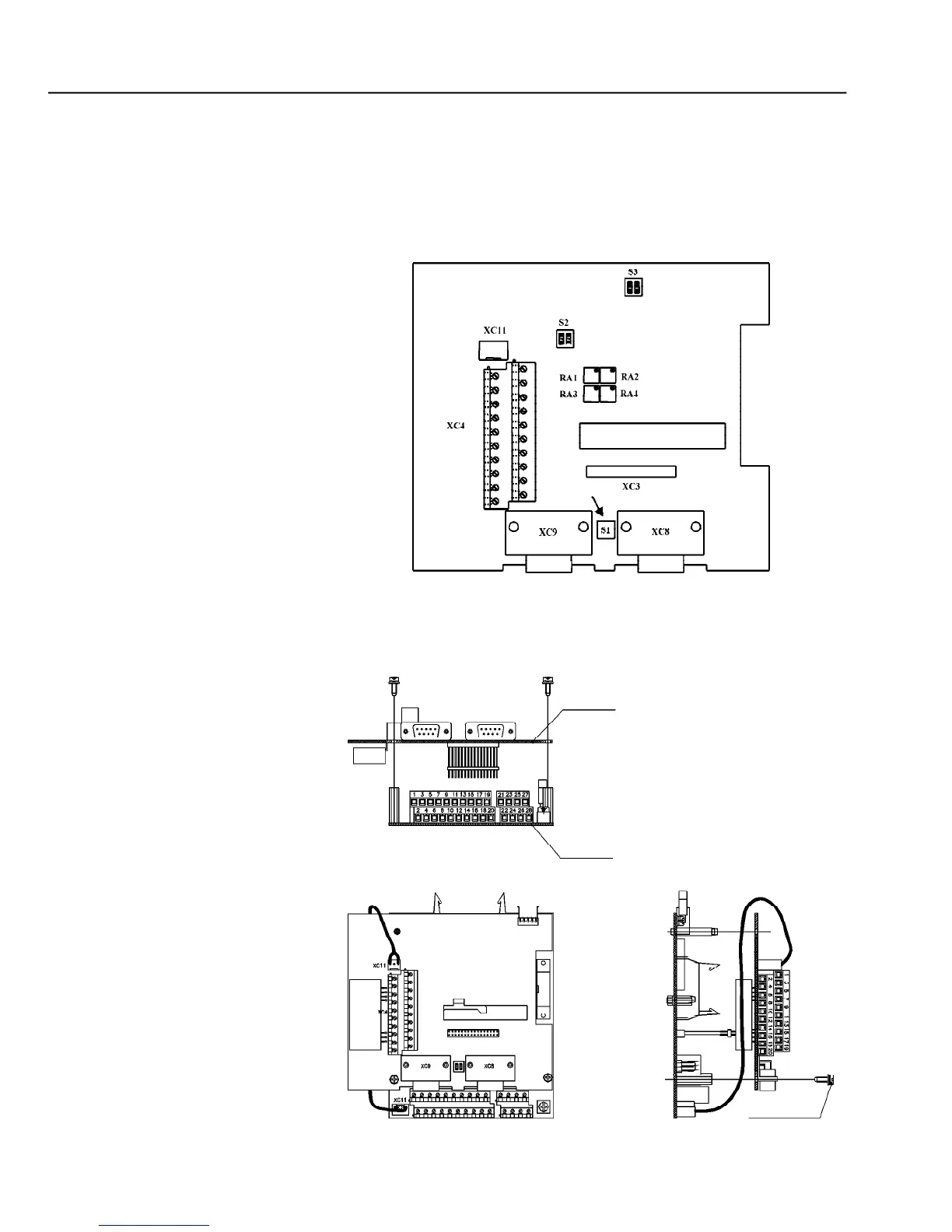

Figure 8.3
- EBA board installation procedure
EBA BOARD
CC9 Board
M3 x 8 Screw
1Nm Torque
Figure 8.2
- EBA board layout
EBA BOARD
CUTOUT
CUTOUT
