WinGD RT-flex50DF - Page 116

Maintenance1224−1/A1
Winterthur Gas & Diesel Ltd.
4/ 6
ENGINE SIDEDRIVING END
SUPPORT SURFACE
VIEW FROM DRIVING END
PADS ON ENGINE SIDE
VIEW FROM DRIVING END
PADS AT DRIVING END
AHEADASTERN
CLOCKWISE
ROTATING ENGINE
COUNTERCLOCKWISE
ROTATING ENGINE
AHEADASTERN
012.833/05
PROPELLER THRUST
AHEAD
PROPELLER THRUST
ASTERN

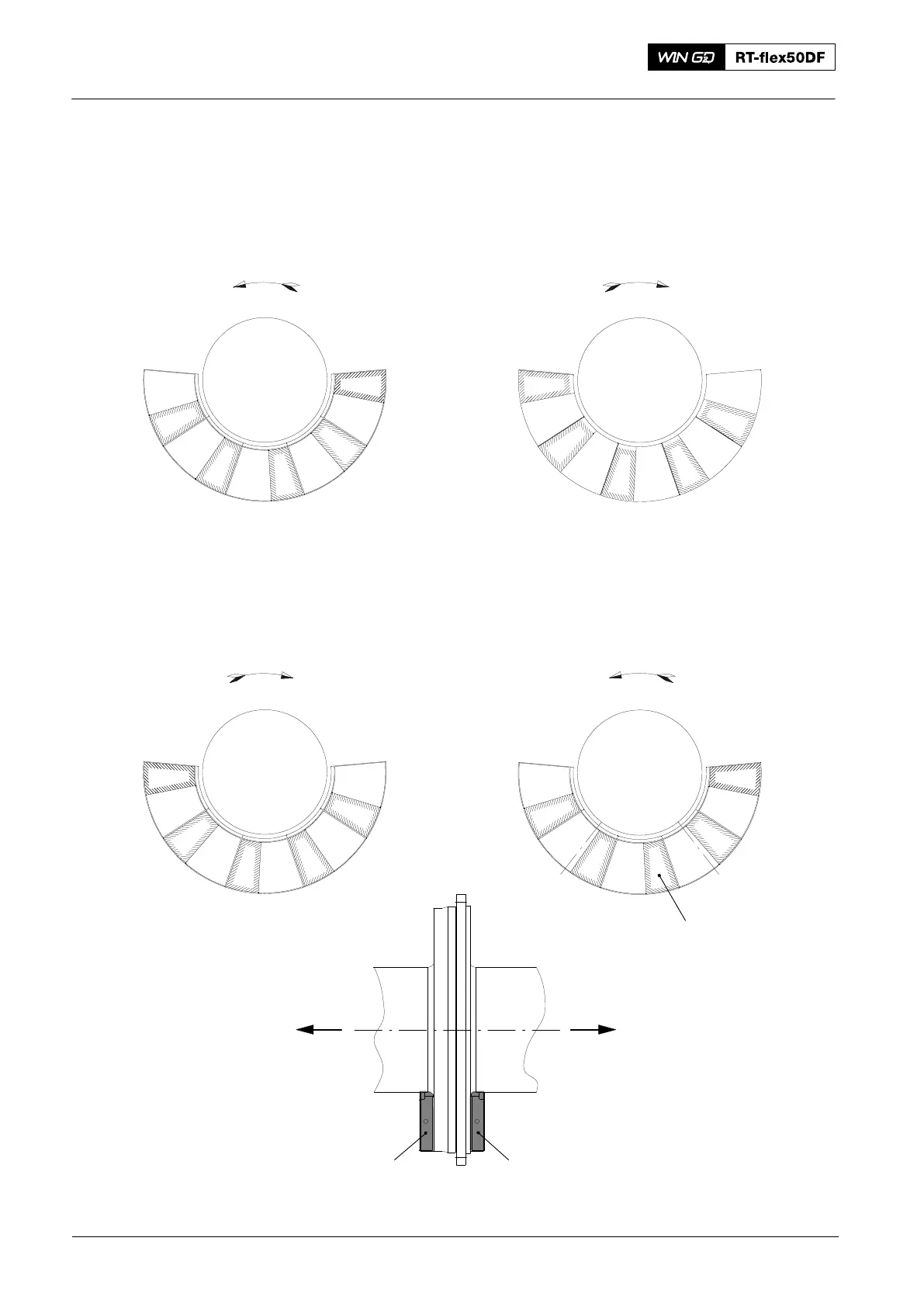

Fig. 3
Astern Pads Ahead Pads
CONFIGURATION OF THRUST BEARING PADS WITH FIXED PITCH PROPELLER
5−Cyl and 6−Cyl ENGINES
2016
Thrust Bearing Pads − Removal and Installation
