Maintenance
1224−1/A1
Winterthur Gas & Diesel Ltd.
3/ 6
I
I
6
I - I
II - II
012.959/05
012.960/05
5, 5a
94040−M12
H1
6
94155
94155A
94155
94155A
H2

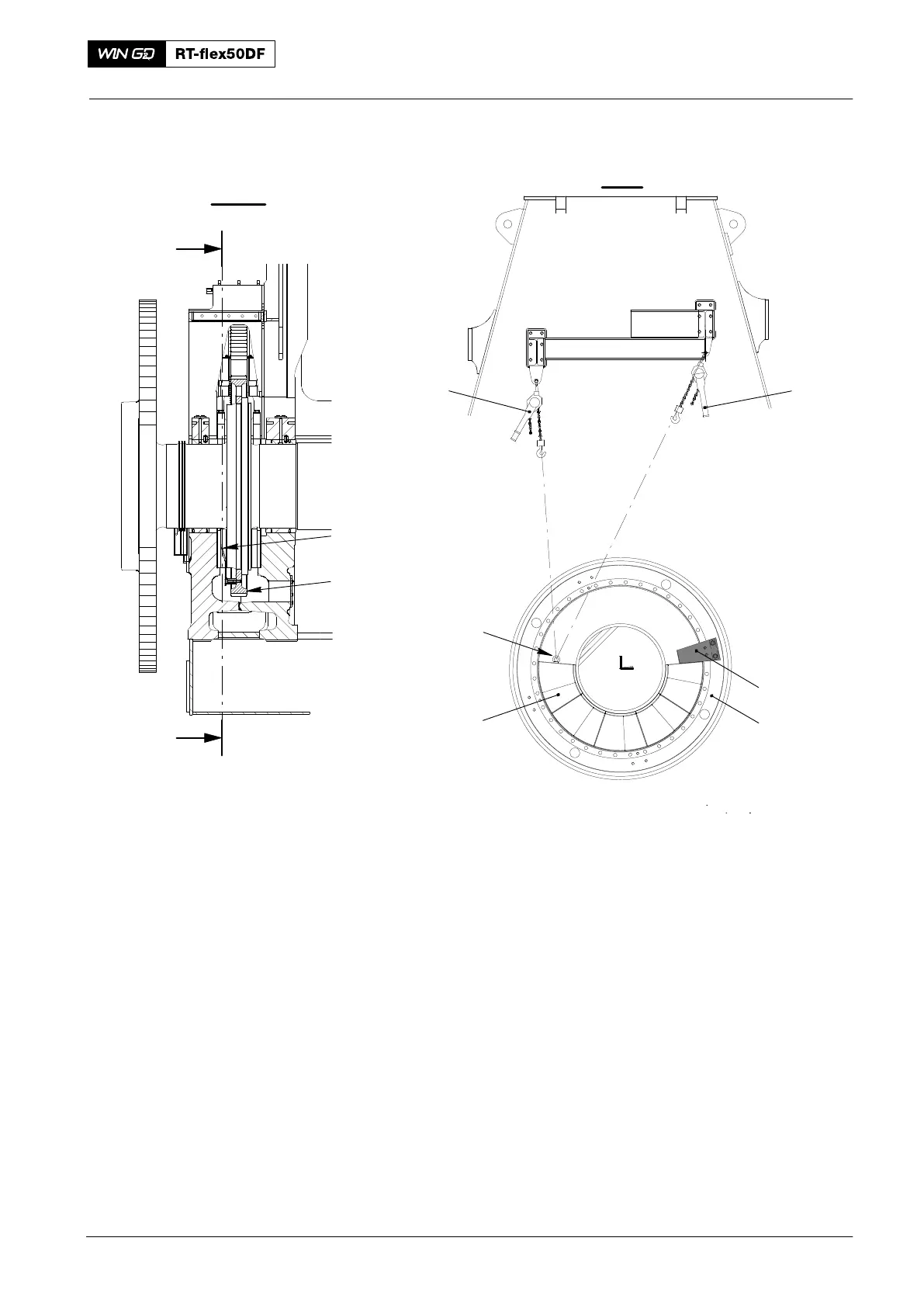

Fig. 2
2, 3
1
4
11) Install the arbor supports (2, or 5, Fig. 1) as follows:
a) Attach the eye bolt (94040−M12) to the applicable arbor support.
b) Lift then lower the applicable arbor support into position.
c) Remove the eye bolt (94040−M12).
d) Apply Loctite No. 222 to the four bolts (1).
e) Do step a) to step d) for the other arbor supports.
f) Do a check of the clearances between the arbor supports and the thrust bearing
pads, see 0330−1 Clearance Table, Crankshaft and thrust bearing.
Note: When you replace new thrust bearing pads (or thrust bearing pads that
have new metal), you must make sure that the thickness (final dimension)
corresponds exactly with the neighbouring pads.
Note: When you replace a full set of thrust bearing pads (or full set of thrust
bearing pads that have new metal), you must adjust the clearances to the
original values, refer to 0330−1 Clearance Table, Crankshaft and Thrust
Bearing and 1203−1.
2015
Thrust Bearing Pads − Removal and Installation
