Maintenance
3140−1/A1
Winterthur Gas & Diesel Ltd.
1/ 6
Disassemble and Assemble
Tools:
2 Manual ratchets 94016-001 2 RUD eye bolts 94040-M20
1 Manual ratchet 94016-002 1 Lifting tool 94335
1. Preparation
CAUTION
Injury Hazard: The weight of the top housing is approximately
400 kg. Use the correct equipment to lift and move the top housing.
This will prevent injury to personnel.
Note: For data about the axial damper monitor, refer to the Operation Manual
3140−1.
1) Read the data in 0012−1 General Guidelines for Lifting Tools.
1) Set to off the bearing oil pump.
2) Remove the two pipes (6, Fig. 1) from the axial damper monitor (6) and the
screw-in unions (5).
3) Remove the screws that hold the top cover (4) to the column and the bottom
cover.
4) Use applicable lifting equipment to remove the top cover (1).
5) Remove the two pipes (2) from the top cylinder half (3)

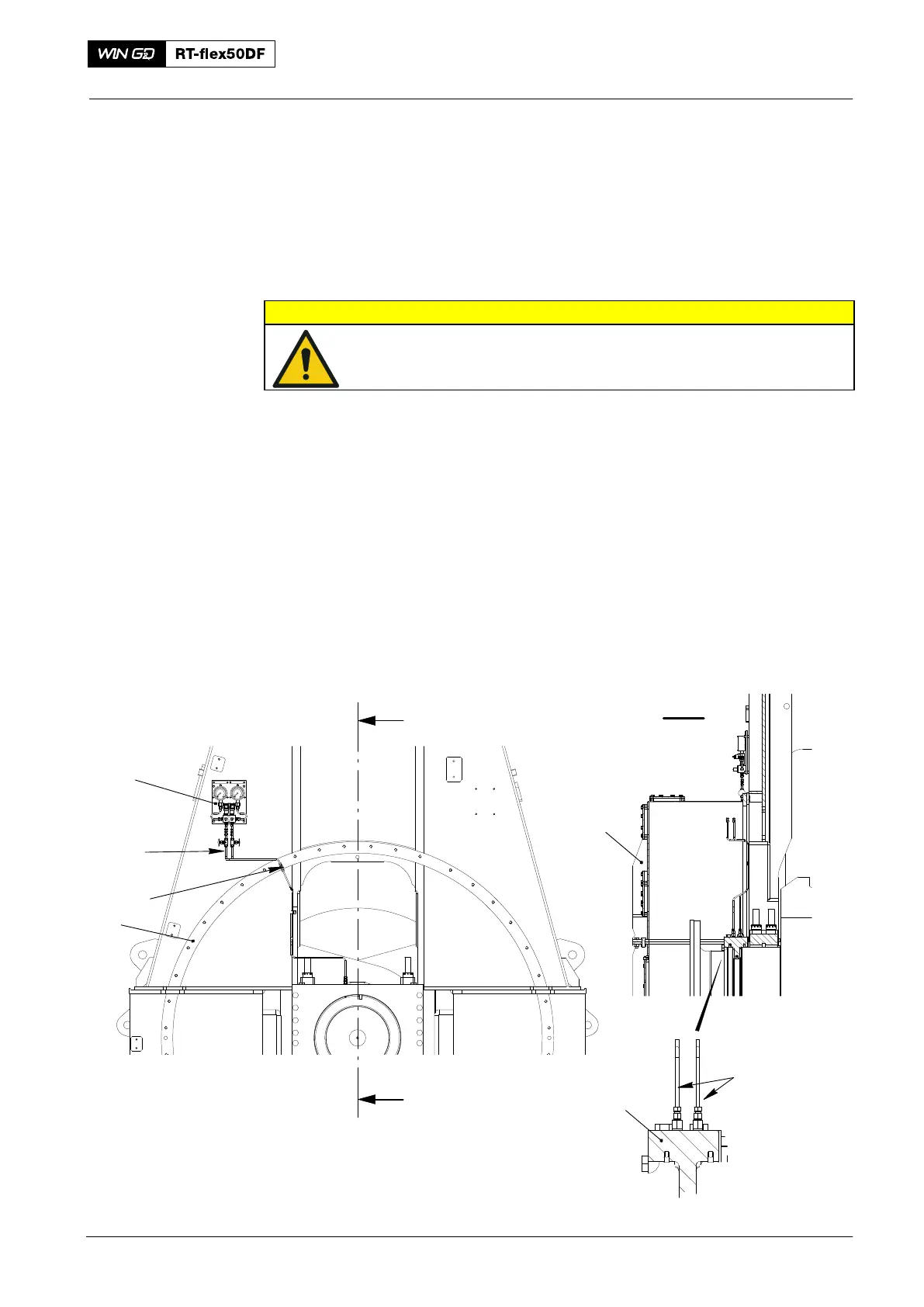

Fig. 1
I
I
I - I
1
4
7
WCH03505
2
3
5
6
2016
Axial Detuner
