Maintenance
3403−3/A1
Winterthur Gas & Diesel Ltd.
5/ 5
12) Refer to Fig. 1 for the sequence to
apply tension to the elastic studs.
13) Apply tension to the 12 elastic studs (1,
Fig. 7).
14) Tighten the round nuts (1) on the
elastic bolts (2).
15) Install the piston, refer to 3403−1,
paragraph 3.
2016
Piston: Disassemble and Assemble
2
1

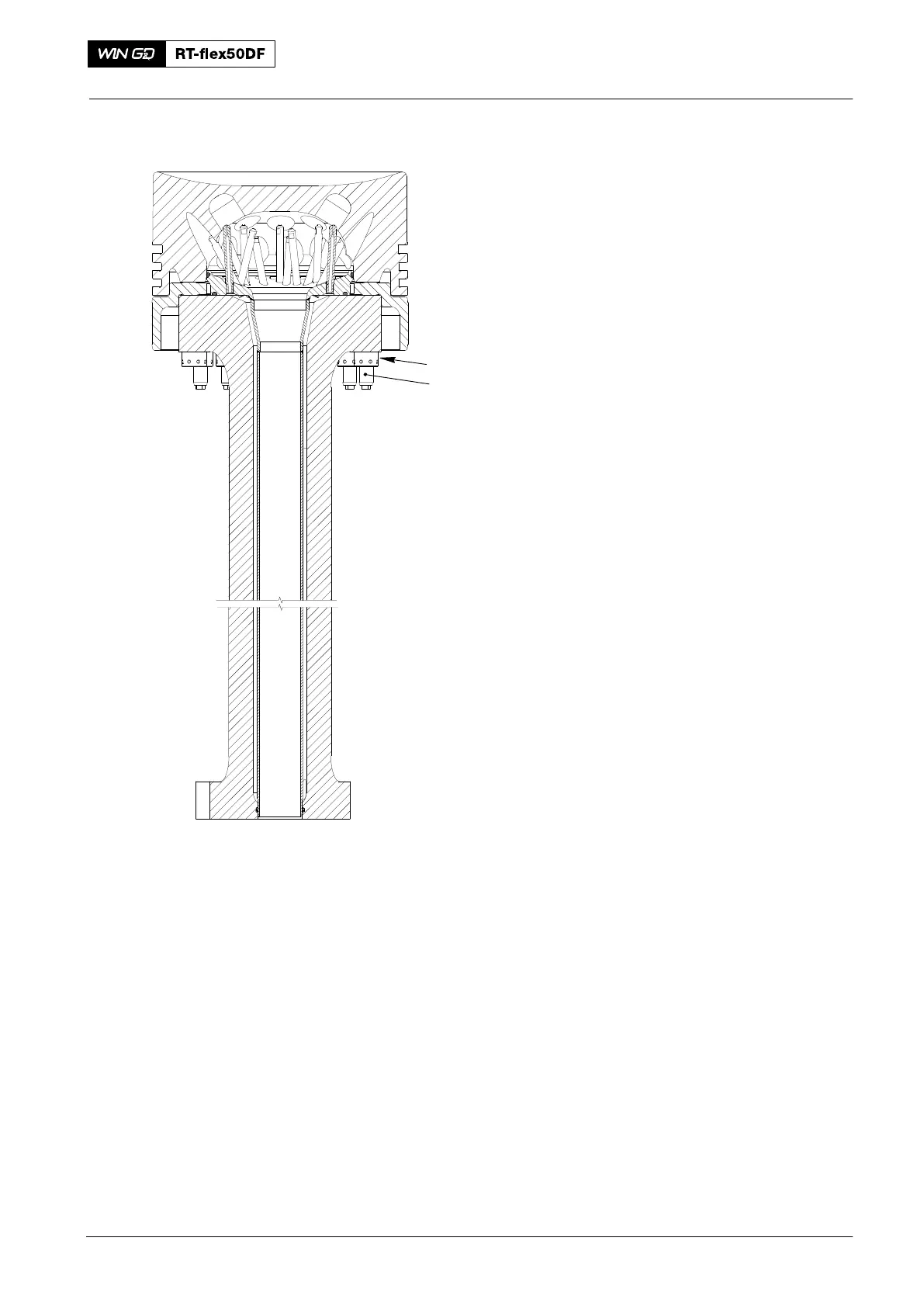

Fig. 7
