Maintenance5552−2/A1
Winterthur Gas & Diesel Ltd.
4/ 8
3. Bearing Shells −
Removal

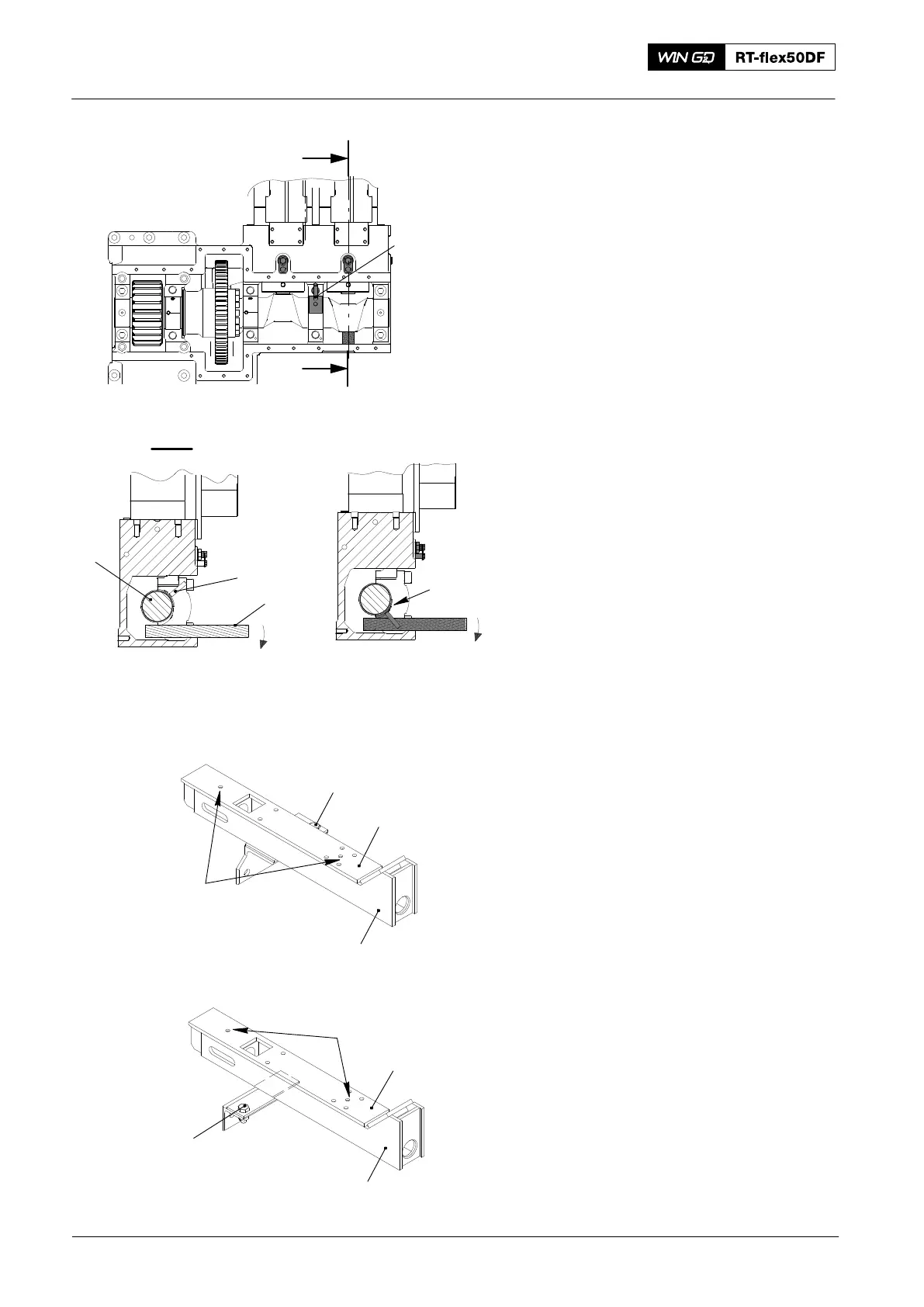

1) Put the template (94567, Fig. 5) on the
top bearing shell.
2) Put the wooden underlay (1) in position
below the camshaft (2) as shown.
3) Use the wooden underlay (1) as a lever
to move the camshaft (2) up a small
distance.
4) Move the template (94567) and the top
bearing shell down.
5) Remove the template (94567).
6) Put a mark on the top bearing shell to
identify its position.
7) Remove the related bearing shell.
4. Camshaft − Removal
1) On the supports (94566 and 94566A,
Fig. 6, remove the screws (3).
2) Remove covers (2, 4) from the
supports (94566, 94566A).
3) Loosen the screws (1, 5).
2016
Supply Unit: Removal and Fitting of Camshaft and Bearing Shells
I
I
94567
94567
I - I
2
Fig. 5
1
012.983/05
94567
Fig. 6
1
2
94566A
94566
5
3
3
4
