Maintenance
5552−2/A1
Winterthur Gas & Diesel Ltd.
5/ 8
Note: When you attach the supports
(94566 and 94566A, Fig. 7), use the
screws from the bearing cover and
the screws from the housing
cover.
4) Attach the supports (94566, 94566A) to
the housing (1).
5) Make sure that the camshaft (3) stays
in position before you remove the last
bearing cover.
6) Attach the covers (2 and 3, Fig. 5).
7) Remove the remaining bearing covers,
refer to the procedure given in
paragraph 2, step 3) to step 9).
8) Make sure that the camshaft (3) and
the gear wheel (2) do not move.
9) Carefully move the camshaft and the
gear wheel on to the two supports
(94566, 945666A).
10) Put the chock (4) in position to hold the
camshaft and gear wheel (2, 3).
Note: When you do step 11), make a
mark on the bearing shells to
identify their positions.
11) Remove the remaining bearing shells.
2016
Supply Unit: Removal and Fitting of Camshaft and Bearing Shells
012.984/05
94566A 94566 1
I
I
I - I

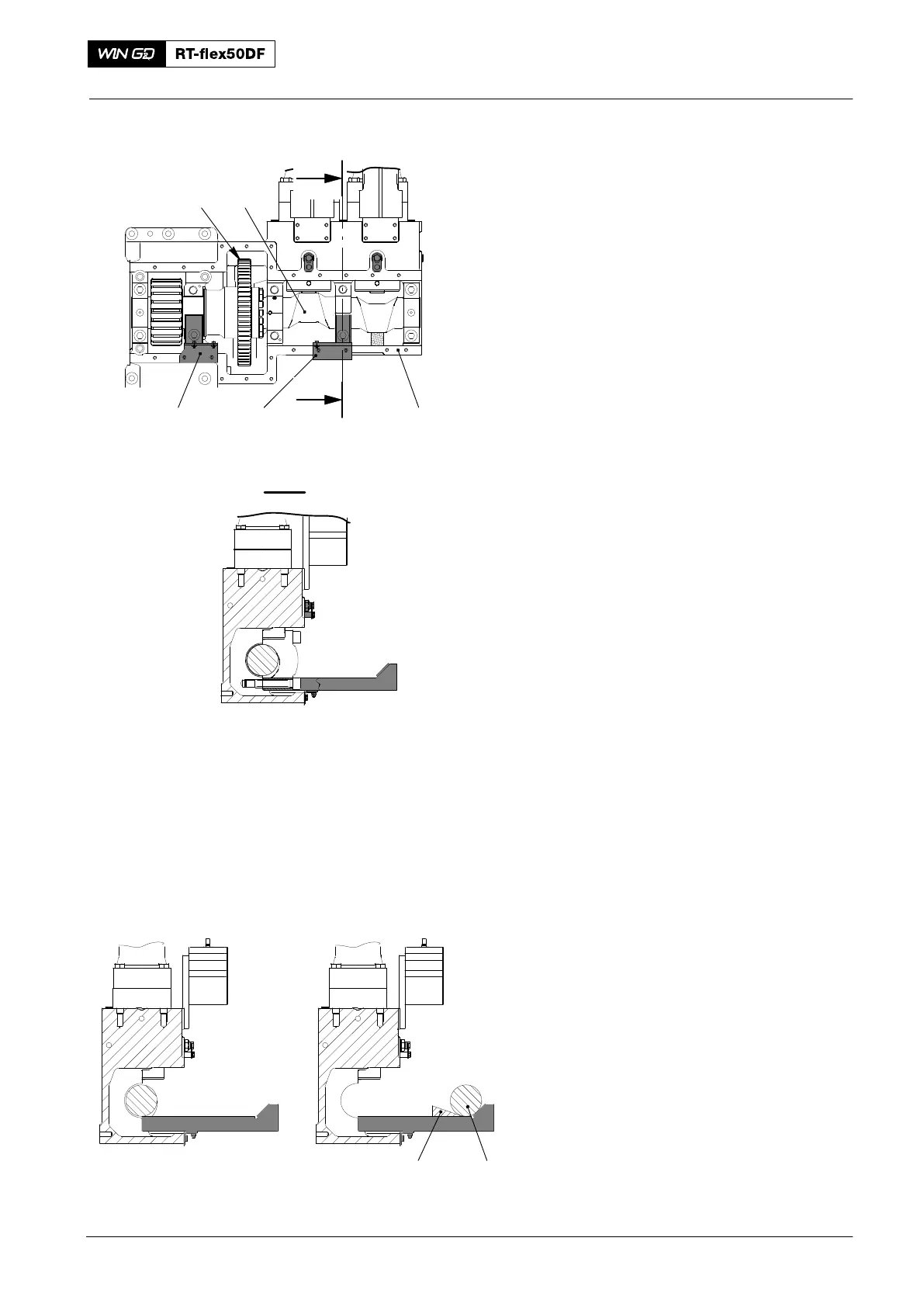

Fig. 7
32
2,
4
