Maintenance
6606−2/A1
Winterthur Gas & Diesel Ltd.
3/ 9
17) Operate the manual ratchet (H1, Fig. 4)
to pull the SAC a distance of
approximately 750 mm. At the same
time, use the chain block (H3) to keep
the SAC horizontal.
18) Attach the left and right supports
(94663A-IL, 94663B-IL) to the
receiver (1) with the screws.
19) Torque the screws of the supports
(94663A-IL, 94663B-IL) to 145 Nm.
20) Attach the two plates (94664-IL) to the
SAC with its screws.
21) Make sure that the length of the safety
chains (94663F−IL) is 1998 mm (for a
SAC A44−SD).
WARNING
Injury Hazard: The mass of
the SAC is approximately
2760 kg. To prevent injury,
keep the the two safety
chains attached to the
plates.
22) Attach the safety chains (94663F−IL) to
the plates (94664−IL).
Scavenge Air Cooler: Removal and Installation 7 Cyl.
2016

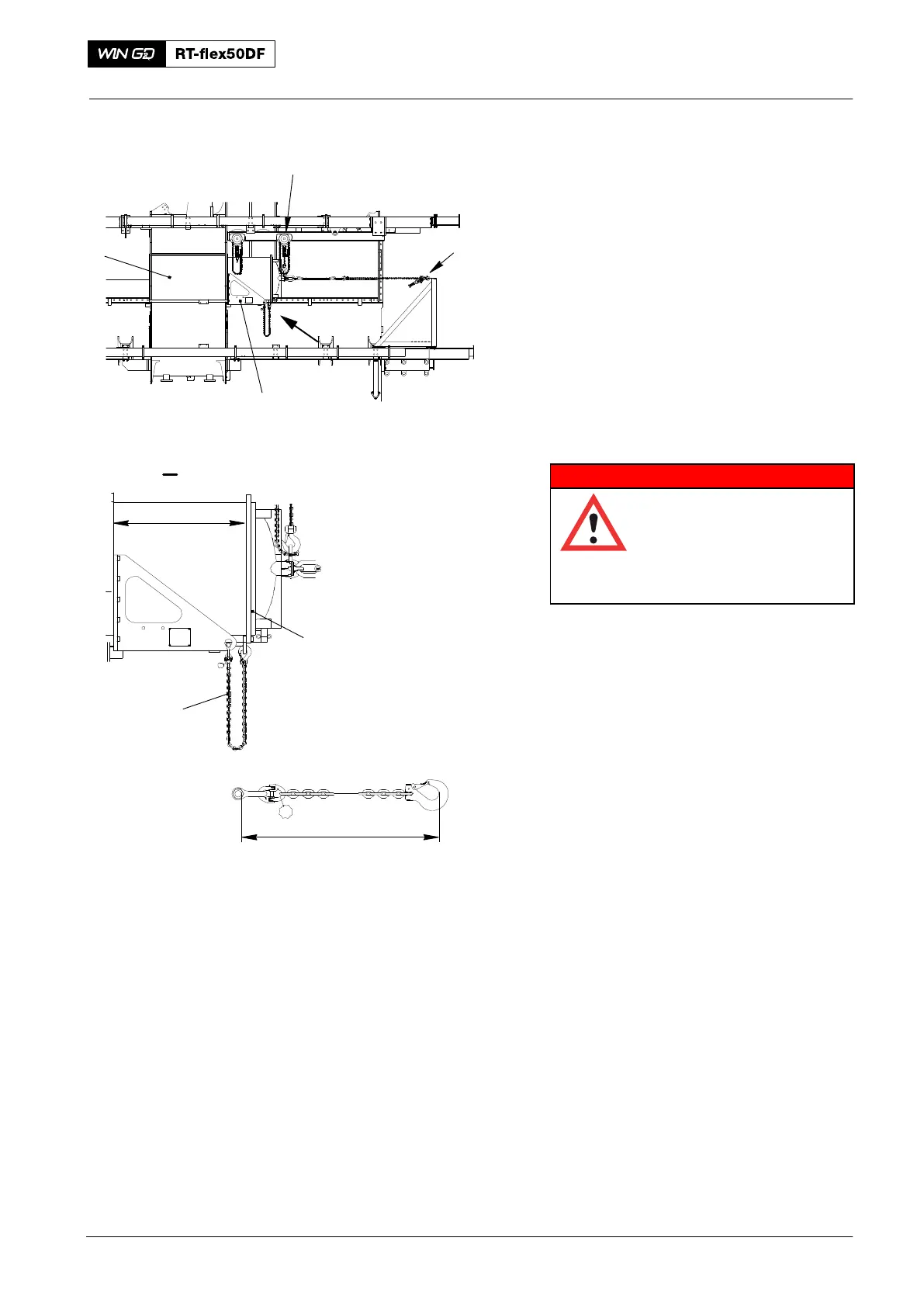

Fig. 4
I
94663A−IL
94663B−IL
WCH00115
H3
H1
1
FREE
END
I
750 mm
94664−IL
94663F−IL
WCH03310
94663F−IL
017.659/08
1998 mm
