Maintenance
6606−2/A1
Winterthur Gas & Diesel Ltd.
5/ 9

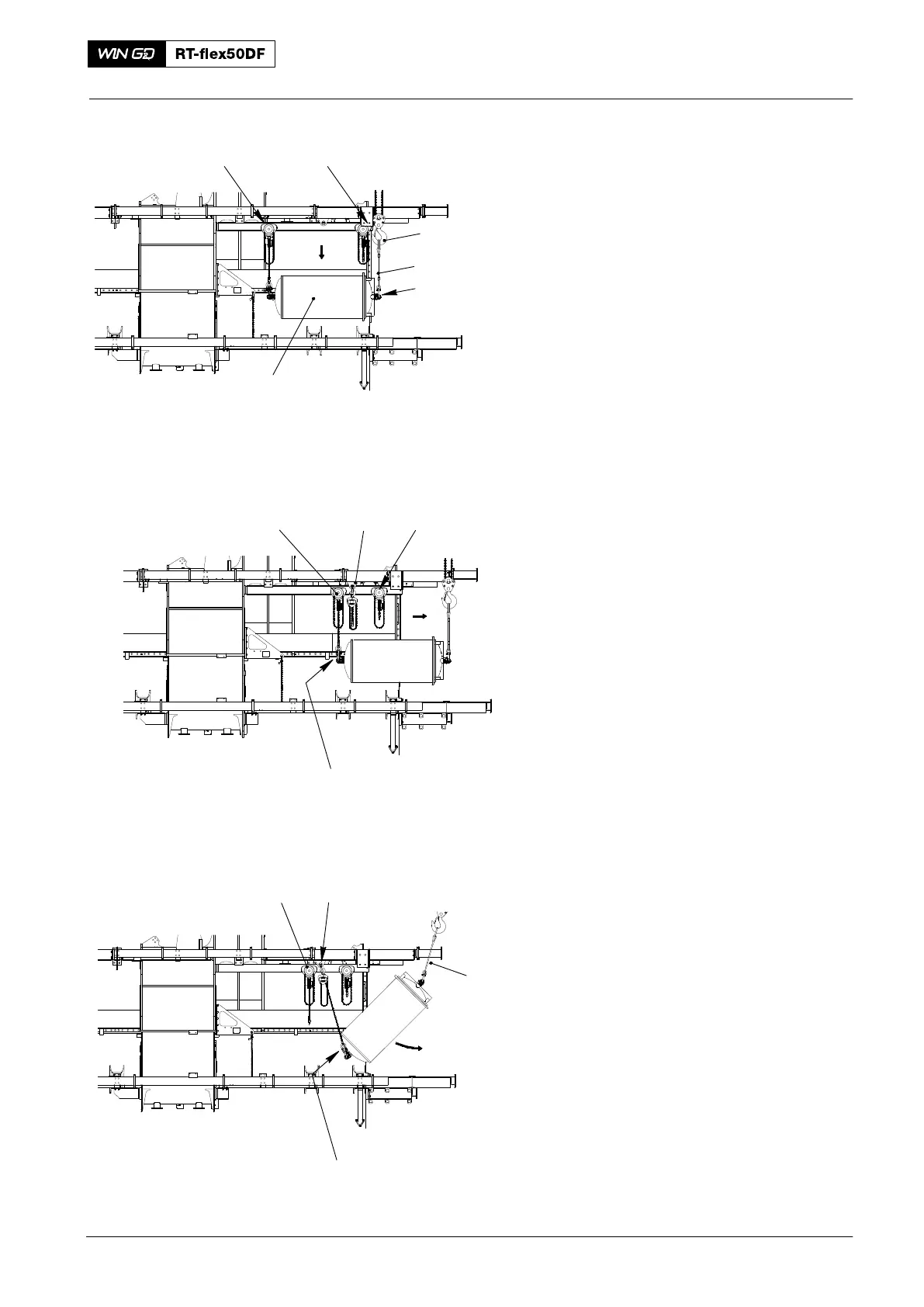

29) Operate the chain blocks (H2 and H3,
Fig. 6) to lower carefully the SAC (2).
30) Attach the hook (1) of the engine room
crane to the wire rope sling (94666)
31) Operate the engine room crane to lift
the SAC (2) a small distance.
32) Remove the chain block (H3) from the
eye bolt (94040-M30).
33) Operate the engine room to pull out the
SAC until the chain block (H2, Fig. 7) is
adjacent to the platform lug (1).
34) Attach the manual ratchet (H1, Fig. 8)
to the platform lug (1) and the lifting
plate (94663−IL).
35) Remove the chain block (H2) from the
lifting plate (94663−IL).
36) Operate the manual ratchet (H1) to
lower the SAC to the vertical position.
Scavenge Air Cooler: Removal and Installation 7 Cyl.
2016
94666
94040−M30
WCH00115
H3
WCH00115
94663−IL
H2 H3
1
2
1
Fig. 6
Fig. 7
H2
WCH00115
H2
94666
H1
Fig. 8
94663−IL
