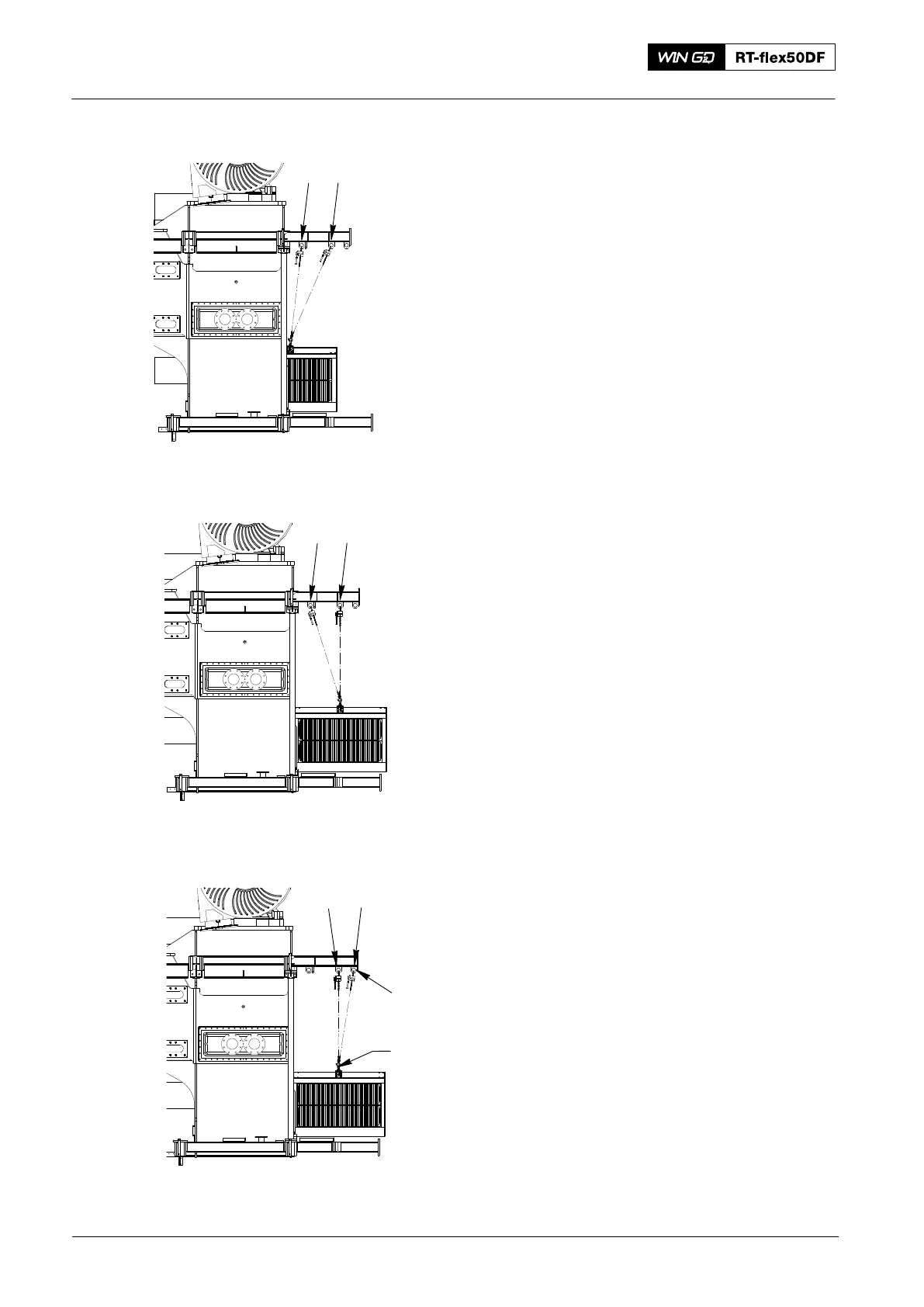

12) Operate the manual ratchet (H2, Fig. 5)
to hold the weight of the water
separator.
13) Operate the manual ratchet (H2) to pull
out the water separator. At the same
time, operate the manual ratchet (H1)
to release the tension.
14) Remove the manual ratchet (H1).
15) Attach the manual ratchet (H1) to the
end attachment point (1).
16) Attach the shackle (S1) to the middle
eyelet of the plate (94667).
2016
Water Separator: Removal and Installation
H1
H2
H1
H2
Fig. 5
H2
H1
1
94667
S1
