Maintenance
6708−1/A1
Winterthur Gas & Diesel Ltd.
9/ 10

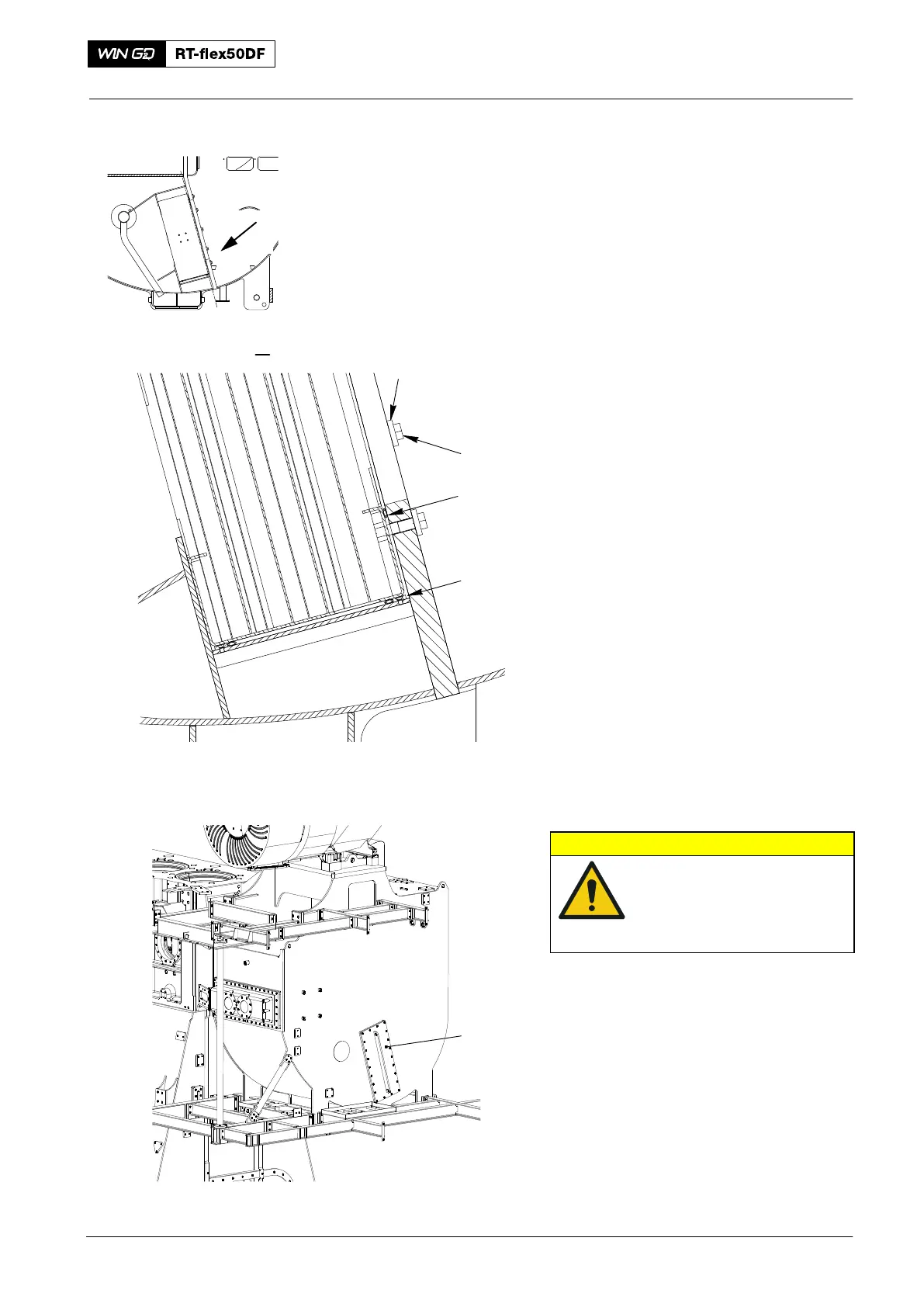

28) Put a new rubber cord (3, Fig. 16) in
the position shown. Bond together the
ends of the rubber cord.
29) Make sure that the rubber cords (3, 4)
are seated correctly.
30) Put oil on the threads of the 18 M16x55
screws (2).
31) Put the 18 intermediate rings (1) and
the 18 M16x55 (2) screws in position.
32) Torque the 18 M16x55 screws (2) to
the value given in 0352−2.
CAUTION
Injury Hazard: The cover
weighs approximately
53 kg. Use applicable
equipment to install the
cover.
33) Attach the cover (1, Fig. 17) to the
scavenge air receiver.
2016
Water Separator: Removal and Installation
Fig. 16
I
Fig. 17
1
WCH00709
I
4
3
1
2
