Maintenance
6708−2/A1
Winterthur Gas & Diesel Ltd.
5/ 8
2) Make sure that the seating surfaces on
the water separator, and the frame (1,
Fig. 7) are clean.
3) Make sure that the guide bars (2) and
the areas where the rubber cords go
are clean.
4) Put new rubber cords (3) around the
rods (4). Bond together the ends of the
rubber cords.
5) Lubricate the the guide bars (2) and the
rubber cords (3).
6) Attach the lifting tool (94667G, Fig. 8)
to the water separator (2).
7) Attach the chain block (H1) to the lifting
tool (94667G).
8) Operate the chain block (H1) to lift the
water separator to the applicable
height.
2016
Water Separator: Removal and Installation 7 Cyl.
I
WCH03360
II
I
WCH03360
23
1
II
44

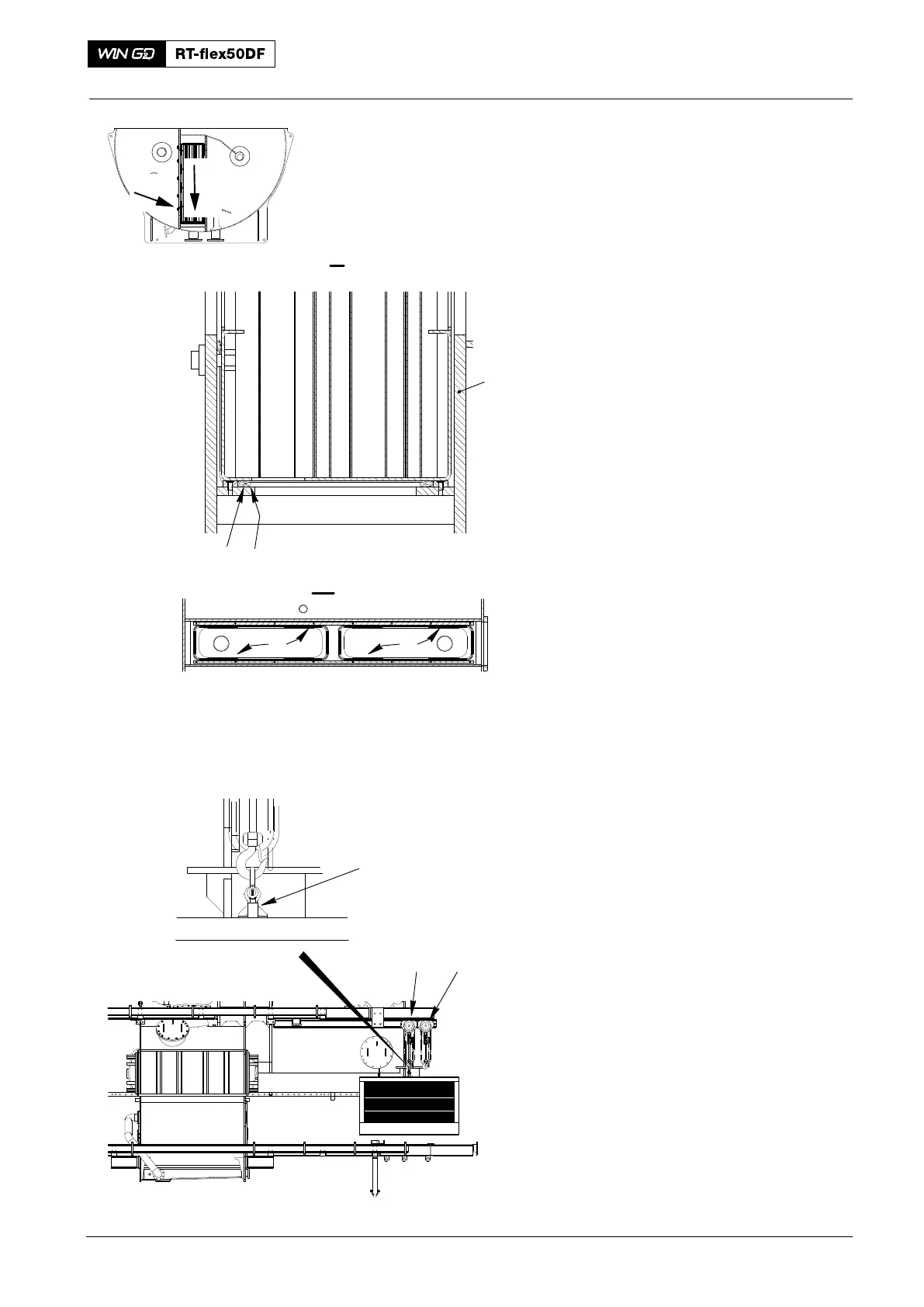

Fig. 7
H1 H2
WCH03564
Fig. 8
94667G
