Error Messages and Codes 3-55
F2D The front door open flag unexpectedly tripped while the system was warming up.
F2F The front door open flag unexpectedly tripped while the system was in a fault state.
F2M The front door open flag unexpectedly tripped when the system pick from Tray 2.
F2N The front door open flag unexpectedly tripped when the system pick from Tray 3.
F2P The front door open flag unexpectedly tripped when the system pick from Tray 4.
F2Q The front door open flag unexpectedly tripped when the system pick from Tray 1.
F2R The front door open flag unexpectedly tripped while the system was duplexing.
F2S Front door sensor unexpectedly actuated while the paper was staged for transfix.
F2T The front door open flag unexpectedly tripped while the print was being transfixed.
F2V The front door open flag unexpectedly tripped while the system was oiling the drum
during a print job.
F2W The front door open flag unexpectedly tripped while the system was imaging during
a print job.
F2X Front door sensor unexpectedly actuated during exit.
1. Ensure the media is supported.
2. Ensure ground integrity of the system, see page 4-73.
3. Run the diagnostic Sensors test to test the door sensor.
4. Check that the doors and covers are properly closed and seated.
5. Run the door sensor test.
G2M Tray 2 removed during pick from Tray 2.
H2N Tray 3 was removed during pick from Tray 3.
J2M Tray 4 was removed during pick from Tray 4.
J2P Tray 4 media present sensor event pick from Tray 4.
K2A Exit module (MEP) malfunction during an abnormal IIT device shutdown.
K2B Exit module (MEP) malfunction during a normal IIT device shutdown.
K2C Exit module (MEP) malfunction during mechanical recovery.
K2D Exit module (MEP) malfunction during warm-up.
K2E Exit module (MEP) malfunction while in ready state.
K2F Exit module (MEP) malfunction while in a fault state.
K2T Exit module (MEP) malfunction during transfix.

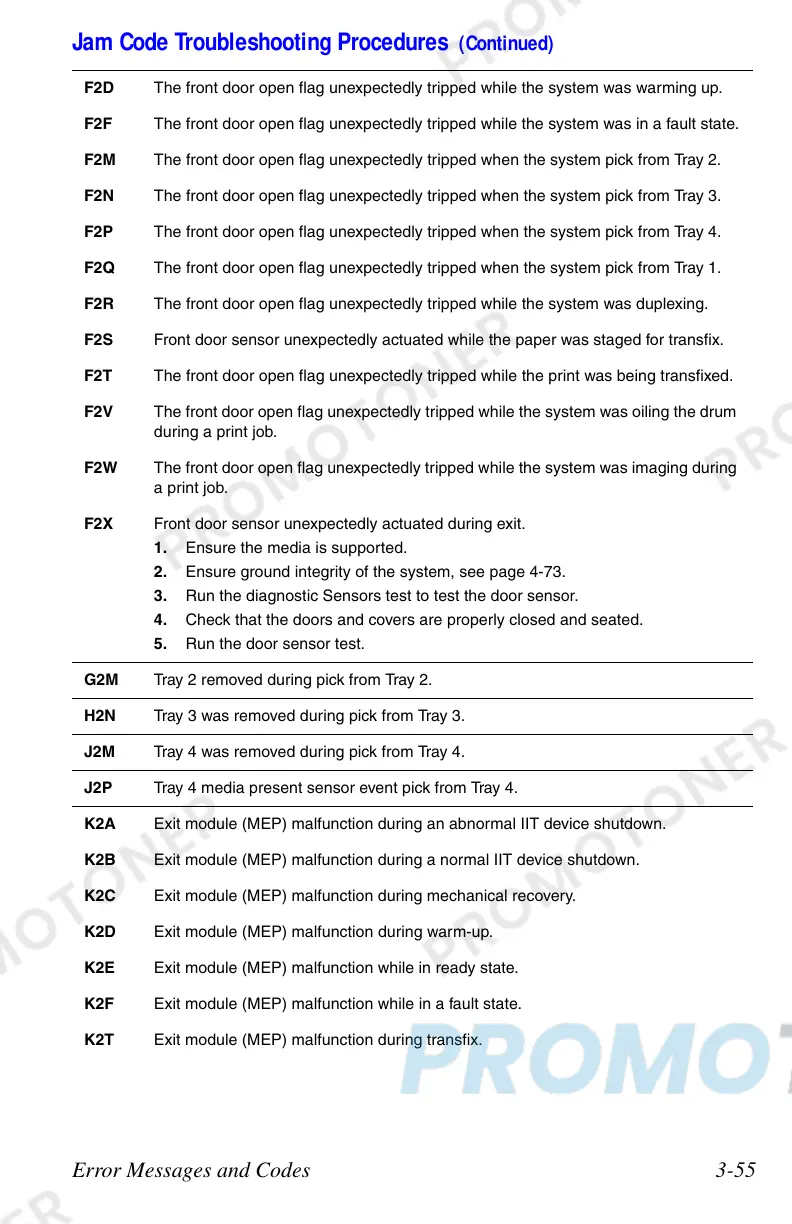

Jam Code Troubleshooting Procedures (Continued)
