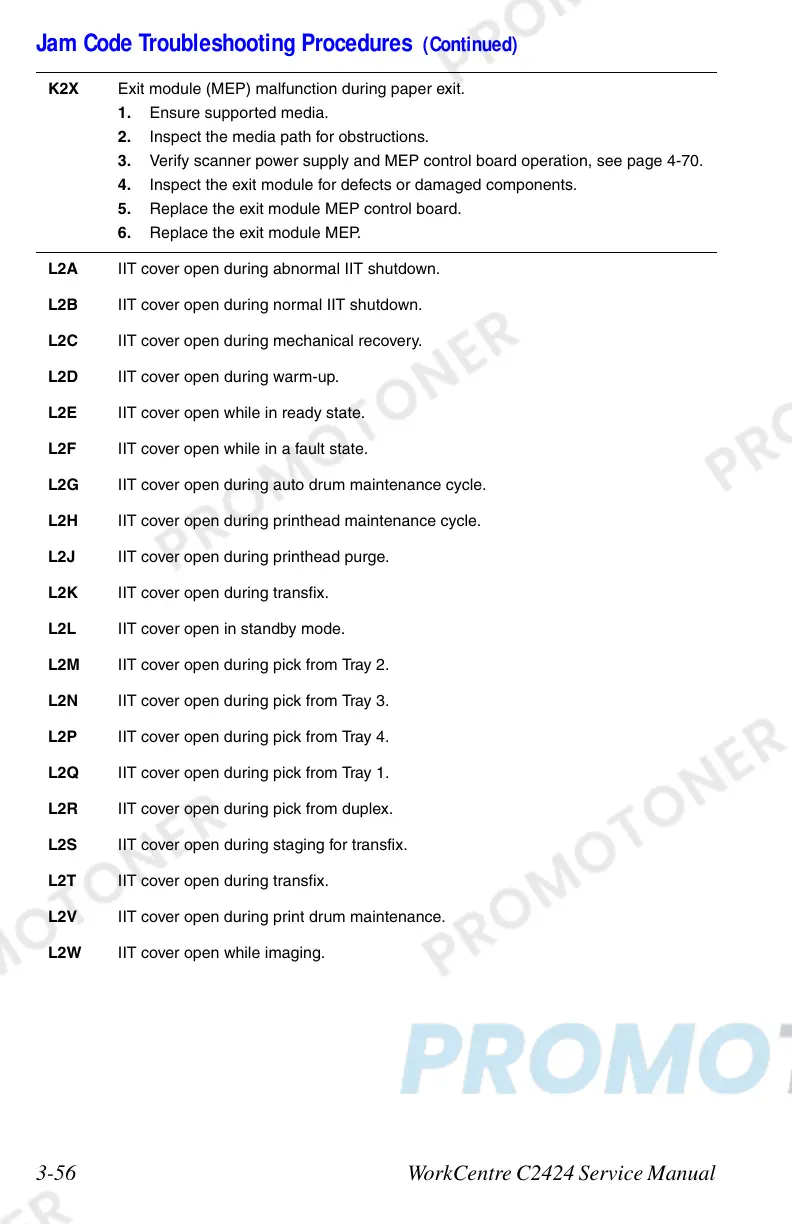

3-56 WorkCentre C2424 Service Manual
K2X Exit module (MEP) malfunction during paper exit.
1. Ensure supported media.
2. Inspect the media path for obstructions.
3. Verify scanner power supply and MEP control board operation, see page 4-70.
4. Inspect the exit module for defects or damaged components.
5. Replace the exit module MEP control board.
6. Replace the exit module MEP.
L2A IIT cover open during abnormal IIT shutdown.
L2B IIT cover open during normal IIT shutdown.
L2C IIT cover open during mechanical recovery.
L2D IIT cover open during warm-up.
L2E IIT cover open while in ready state.
L2F IIT cover open while in a fault state.
L2G IIT cover open during auto drum maintenance cycle.
L2H IIT cover open during printhead maintenance cycle.
L2J IIT cover open during printhead purge.
L2K IIT cover open during transfix.
L2L IIT cover open in standby mode.
L2M IIT cover open during pick from Tray 2.
L2N IIT cover open during pick from Tray 3.
L2P IIT cover open during pick from Tray 4.
L2Q IIT cover open during pick from Tray 1.
L2R IIT cover open during pick from duplex.
L2S IIT cover open during staging for transfix.
L2T IIT cover open during transfix.
L2V IIT cover open during print drum maintenance.
L2W IIT cover open while imaging.
