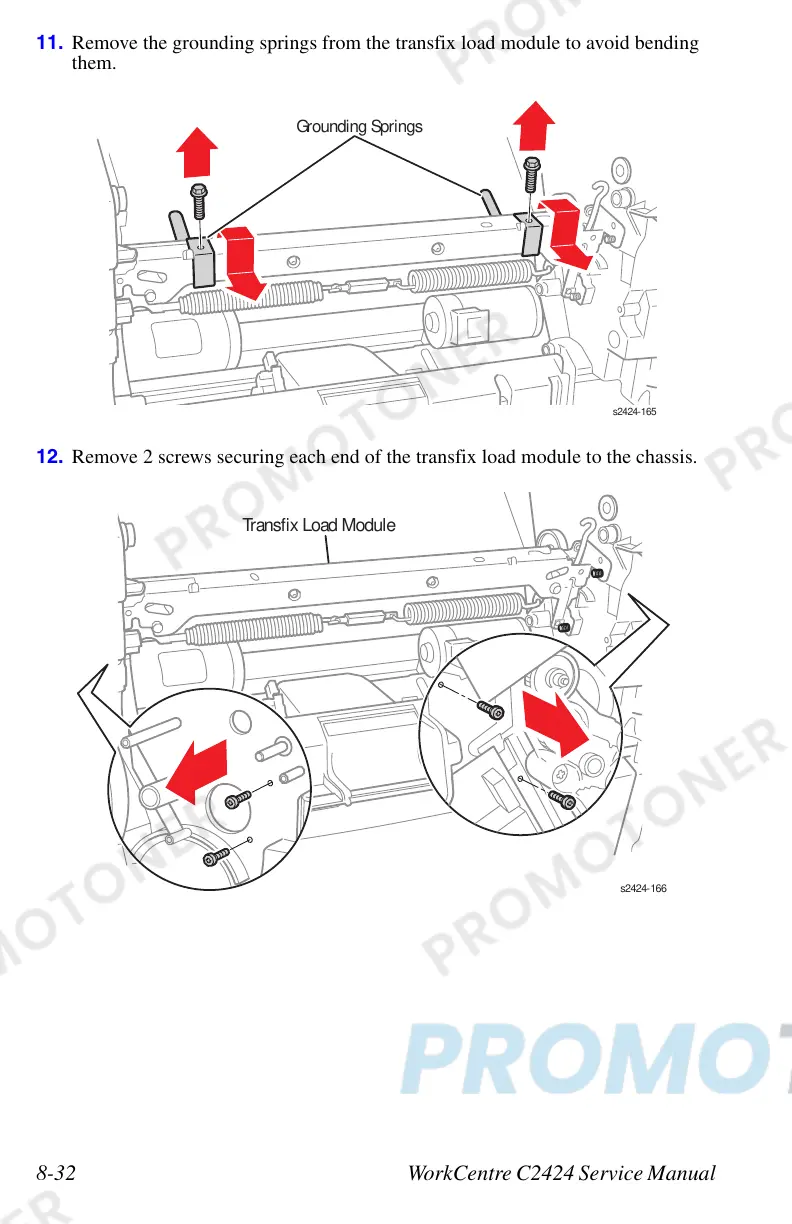

8-32 WorkCentre C2424 Service Manual

11. Remove the grounding springs from the transfix load module to avoid bending

them.

12. Remove 2 screws securing each end of the transfix load module to the chassis.

s2424-16

Grounding Springs

s2424-166

Transfix Load Module
