Xinje XDH Series User Manual

109

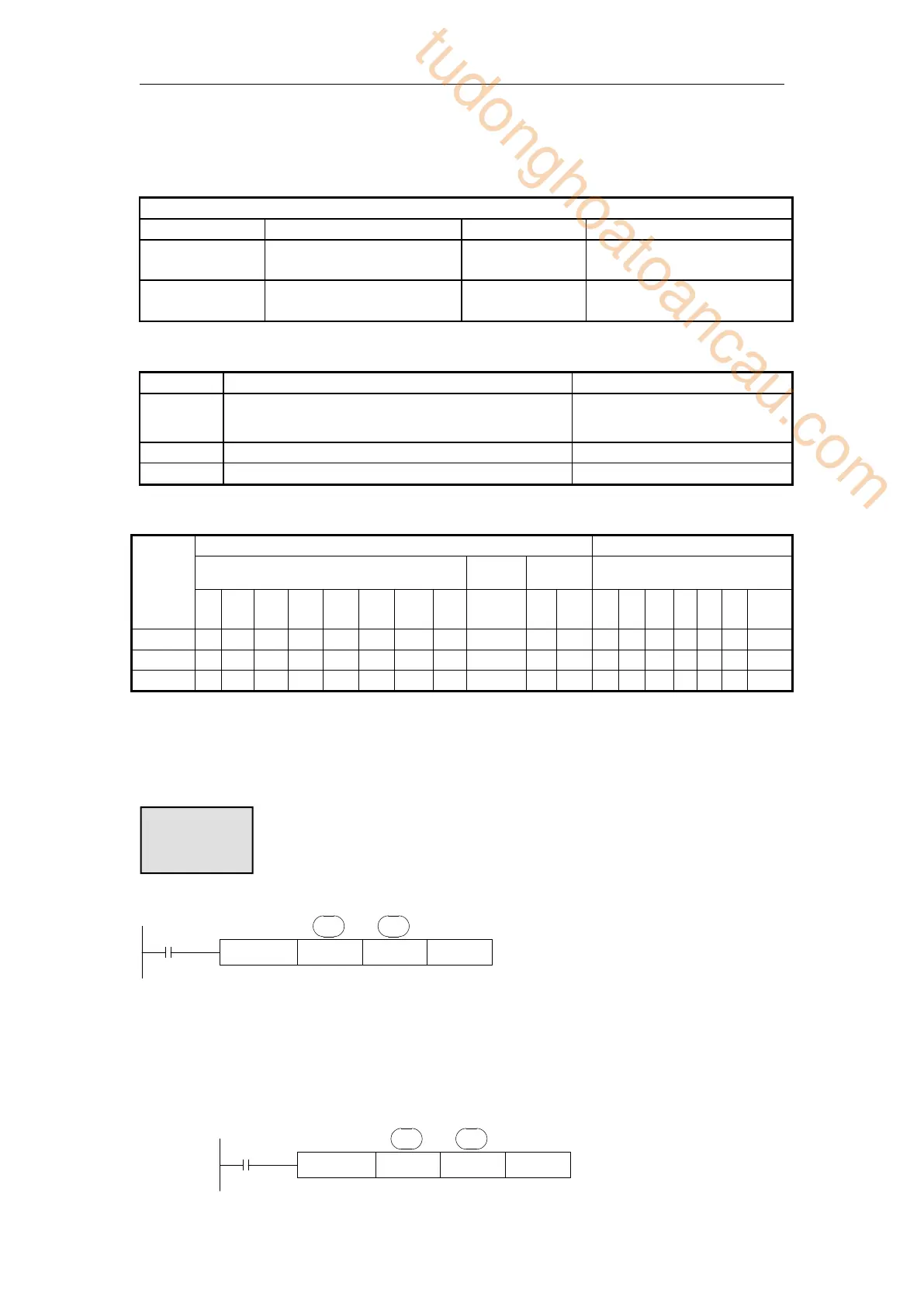

4-5-6 Fill Move [FMOV, DFMOV]
1) Summary
Move the specified data to the other soft components
Fill Move [FMOV, DFMOV]
16 bits
FMOV
32 bits
DFMOV
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
2) Operands
Operands
Function
Data Type
S
Specify the source data or soft component
address
16/32 bits, BIN;
D
Specify the target soft components address
16/32 bits, BIN;
n
Specify the move data’s number
16/32 bits, BIN;
3) Suitable soft component
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
●
●
●
●
●
●
●
●
D
●
●
●
●
●
●
n
●
●
●
●
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM
；
S includes S,HS
；
T
includes T,HT
；
C includes C, HC.
<16 bits instruction>
FMOV K0 D0 K10
X0
n
S· D·
 Move K0 to D0~D9, copy a single data device to a range of destination device
 Move the source data to target data, the target data quantity is n
 If the set range exceeds the target range, move to the possible range
<32 bits instruction >
DFMOV D0 D10 K3
X0
n
S· D·
