operation of the
instruction
TMR
Non-power-off holding
timer
TMR T0 K10 K100
3-14
TMR_A
Power-off holding timer
TMR_A HT0 K10 K100
3-14
END
Force the current
program scan to end
3-15
GROUP
Group
3-15
GROUPE
Group End
3-16

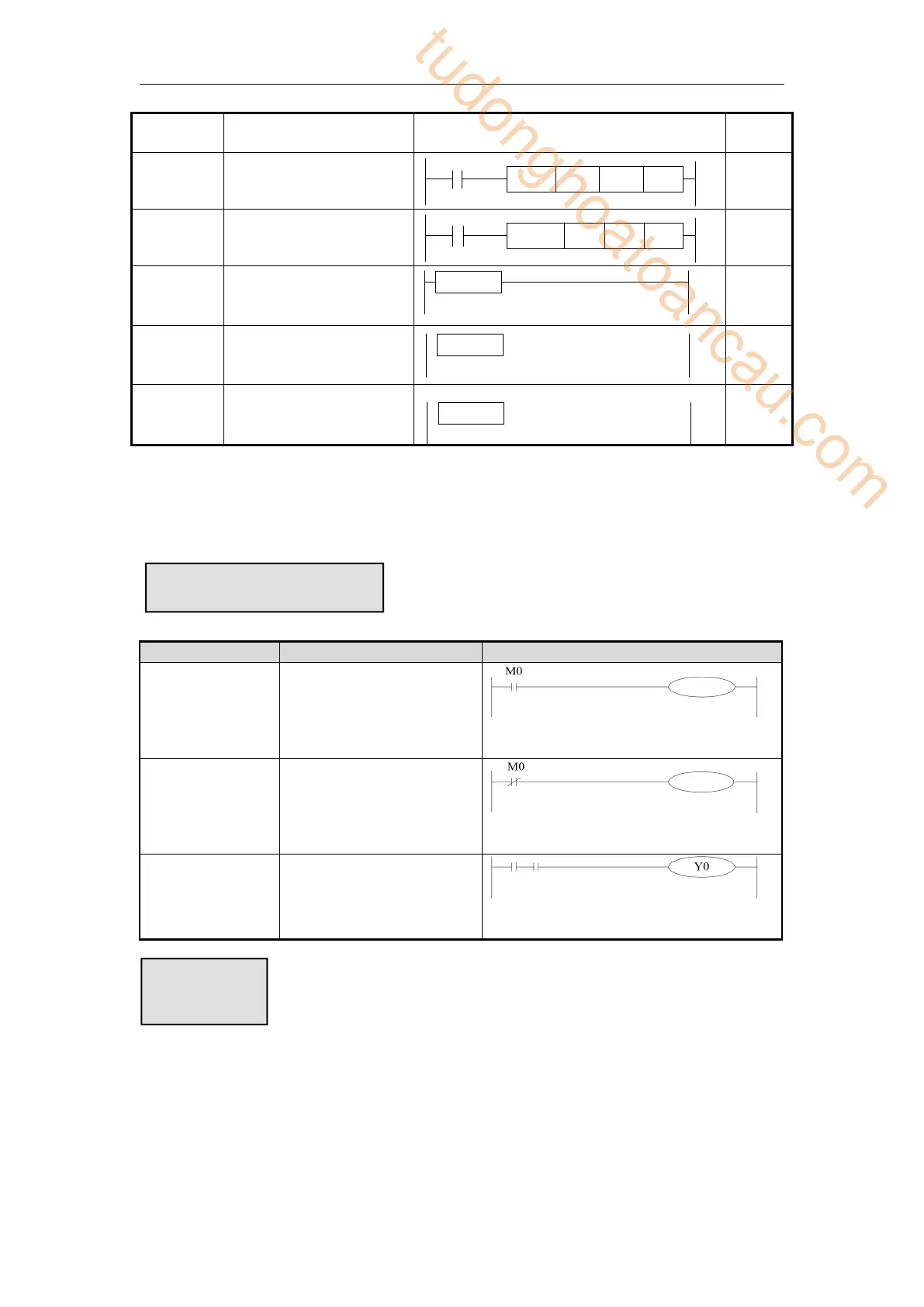

3-2 [LD] , [LDI] , [OUT]
Mnemonic
Function
Format and Operands
LD
(positive)
Initial logic operation
contact type NO
(Normally Open)
Operands:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LDI
(negative)
Initial logic operation
contact type NC
(Normally Closed)
Devices:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
OUT
(OUT)
Final logic operation type
drive coil
Operands:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
Connect the LD and LDI instructions directly to the left bus bar. It can work with ANB
and be used at the branch start.
OUT instruction can drive the output relays, auxiliary relays, status, timers, and counters.
But this instruction can’t be used for the input relays.
Mnemonic and Function
Statement
END
GROUP
GROUPE
