Xinje XDH Series User Manual

70
The status of the coil is reversed after using ALT (ON changes to OFF, OFF changes to ON).
M0ALT
M0
Y0
M100
Y1
M0

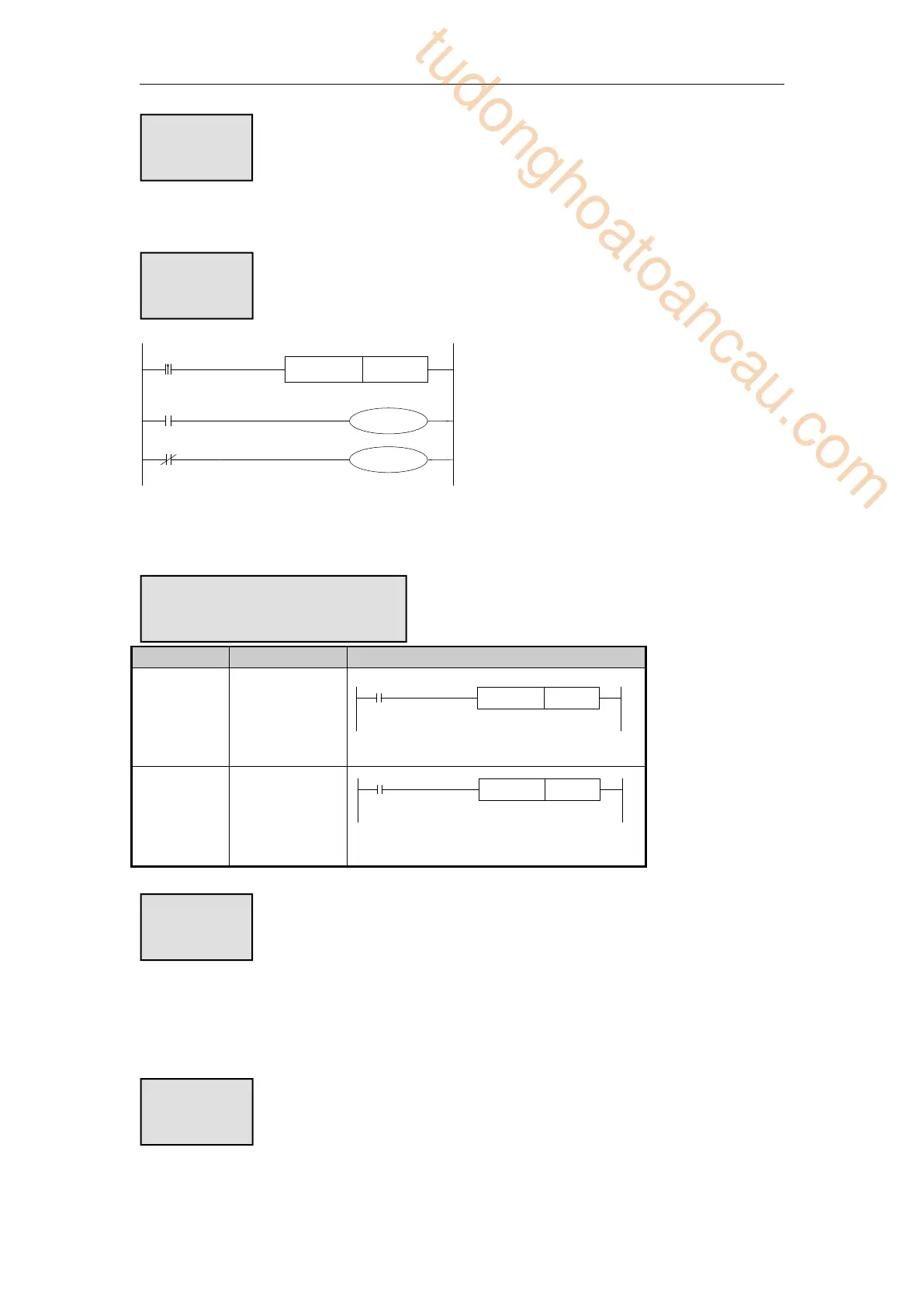

3-11 [PLS] , [PLF]
For using PLS instruction: soft component Y and M will act during one scanning period after
the drive is ON.
For using PLF instruction: soft component Y and M will act during one scanning period after
the drive is OFF.
Mnemonic
Function
Format and Devices
PLS
(Rising
Pulse)
Turn on a scan
cycle when
Rising edge
Operand:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
PLF
(Falling
Pulse)
Turn on a scan
cycle when
Falling edge
Operand:
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LDP
M100
ALT
M0
LD
M0
OUT
Y0
LDI
M0
OUT
Y1
Statements
Program
Statements
Program
Mnemonic and Function
PLS Y0
PLF Y0
